Part Number # 9070T1500D31
SKU # 970094
Image Disclaimers Message
9070T1500D31

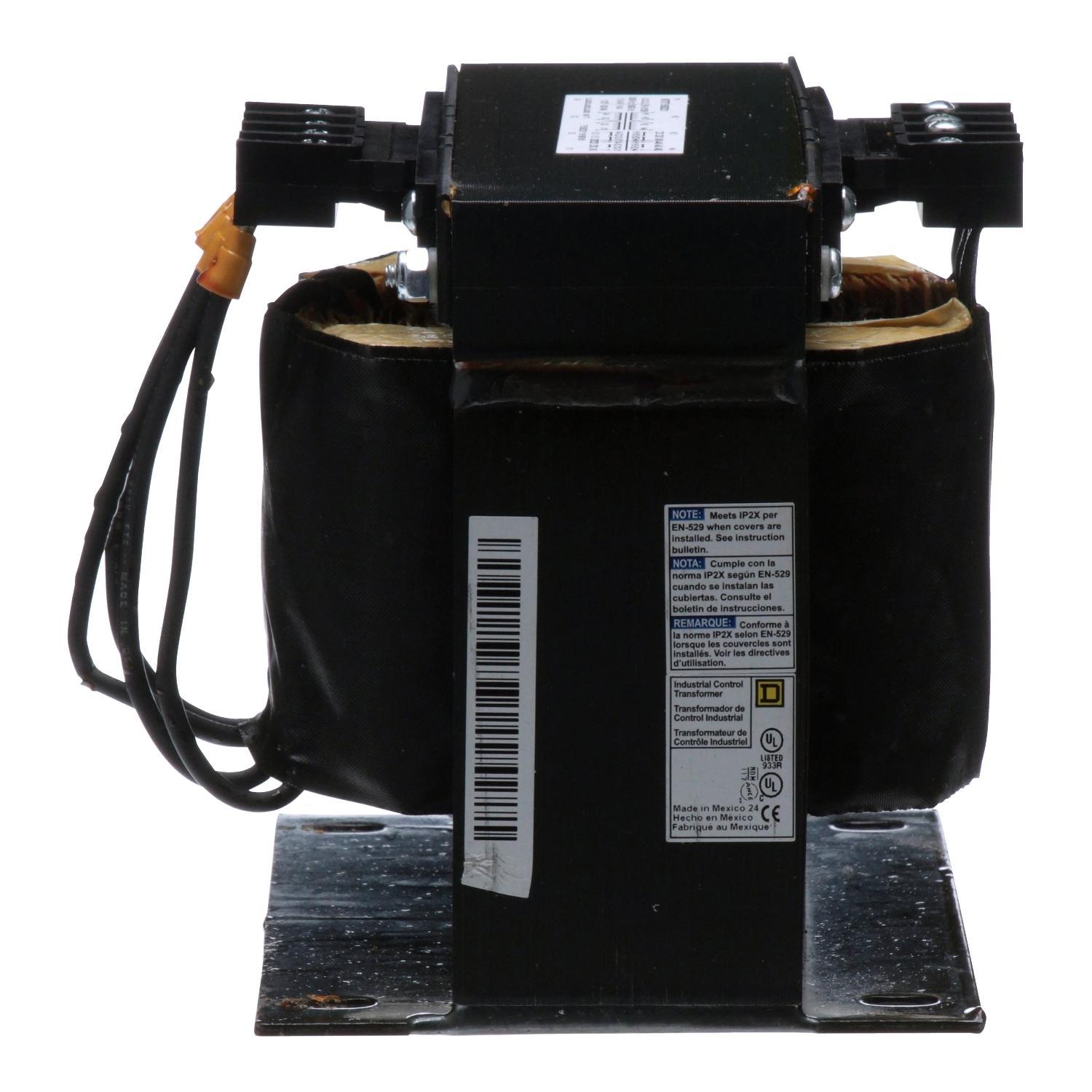

Square D 9070T1500D31 Control Transformer
Part Number # 9070T1500D31
SKU # 970094
$1724.78 / Each
Square D 9070T1500D31 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9070T1500D31 |
| SKU #: | 970094 |
| Dimensions: | 6.17 in H x 7.06 in W x 5.92 in D, 7.06 in W x 5.92 in D x 6.17 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 180, 180 deg C |
| Phase: | 1 |
| Primary Voltage: | 220/230/240/440/460/480 VAC, 220/440 VAC, 230/460 VAC, 240/480 VAC |
| Secondary Voltage: | 110/115/120 VAC, 110/220 VAC, 115/230 VAC, 120/240 VAC |
| Series: | 9070 |
| Temperature Rating (Degrees F): | 115, 115 deg C |
| Type: | Type T Industrial |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121002 |
| UPC: | 00785901803720 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1724.78 / Each
Quantity:
- Square D, 9070T1500D31, Control Transformer, Series: 9070, 220/230/240/440/460/480 VAC Primary, 110/115/120 VAC Secondary, 1500 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 180 deg C Insulation, Open Enclosure, 115 deg C, 7.06 in W x 5.92 in D x 6.17 in H Dimensions
9070T1500D31 Application
For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications9070T1500D31 Item Features
- Designed with various temperature classes
- Customer installed accessories
- https://www.youtube.com/watch?v=yP4g9tSDud4
9070T1500D31 Standards
RoHS Compliant|ECCN: EAR99|CE Certified|CSA File No. LR37055 Guide No. 184-N-90|UL File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #970094Part Number #9070T1500D31UNSPSC39121002UPC00785901803720
