Part #:9070T150D2
SKU #: 2195430
$287.99/EA
Key Features
Part #:9070T150D2
SKU #: 2195430
Brand: Square D
Dimensions: 3.2 in H x 3.75 in W x 3.59 in D, 3.75 in W x 3.59 in D x 3.2 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 55 deg C Rise
Phase: 1, 1 ph
$287.99/EA
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D fingersafe covers
- Compatible with Square D control power fuse kits
- Competitively priced with other universal control power transformers on the market
- Copper winding
- 240/480, 230/460, 220/440 VAC primary voltage rating
- 24 VAC secondary voltage rating
- https://www.youtube.com/embed/c35mQsPEA58
Specifications
Brand: Square D
Dimensions: 3.2 in H x 3.75 in W x 3.59 in D, 3.75 in W x 3.59 in D x 3.2 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 55 deg C Rise
Phase: 1, 1 ph
Power Rating: 150, 150 VA
Primary Voltage: 240/480, 240/480/240/480/24, 240/480/240/480/24 VAC
Secondary Voltage: 24, 24 VDC
Temperature Rating (Degrees F): 55, 55 deg C
Type: Type T Industrial Open Style, Type T Open Style
Connection type: Screw Clamp
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39121002
UPC: 00785901905080

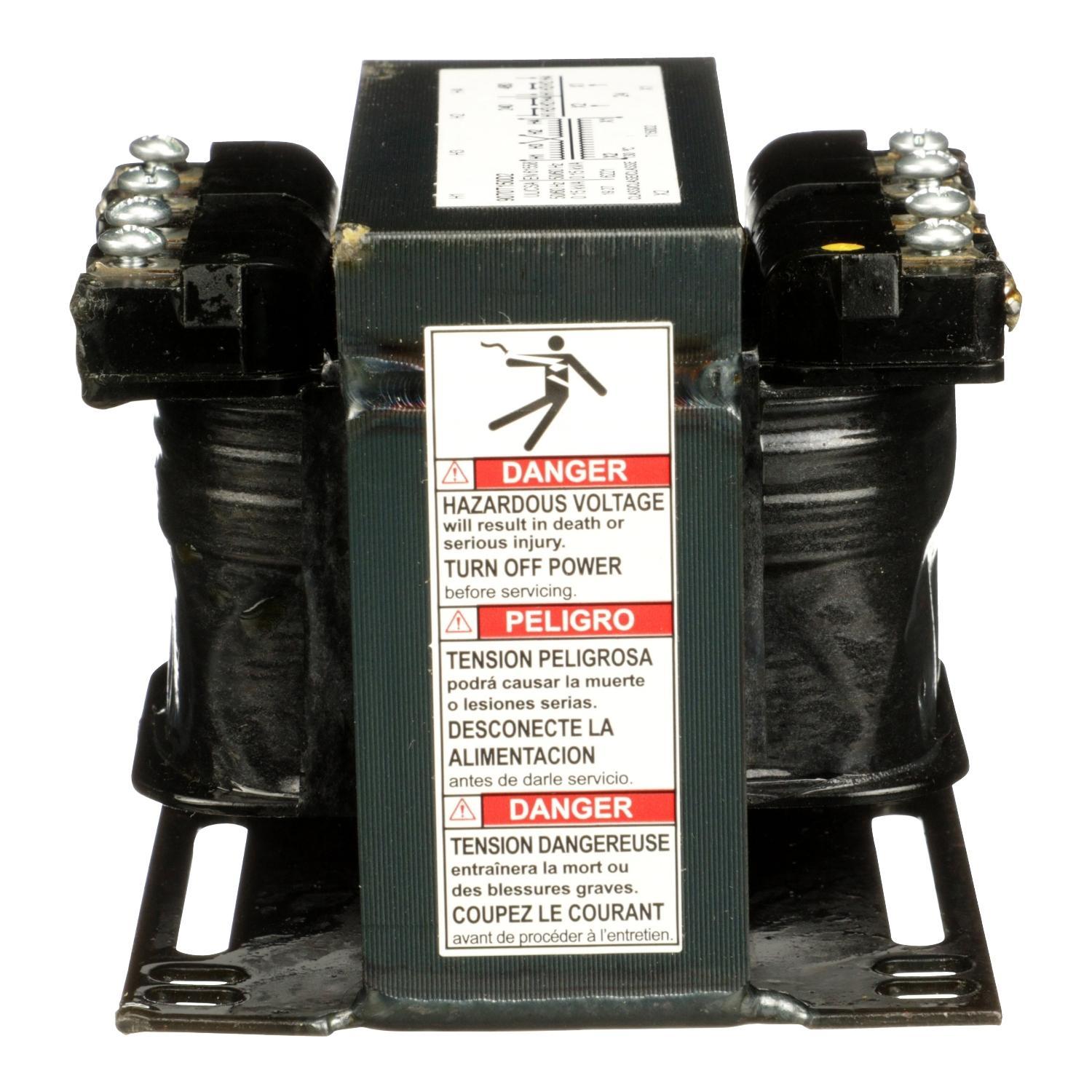

Square D 9070T150D2 Industrial Control Transformer
Square D Industrial Control Transformer, Type T Open Style, 240/480/240/480/24 VAC Primary, 24 VDC Secondary, 150 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 55 deg C Rise, Open, 55 deg C, 3.75 in W x 3.59 in D x 3.2 in H
Additional Description: SQD -9070T150D2 TRANSFORMER CONTROL 150VA 240/480V-24V
Catalog Description: Transformer, Type T, industrial control, 150VA, 1 phase, 240x480V primary, 24V secondary, 55C rise
Item FeaturesFor used to handle high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications
Item Features
Item FeaturesRoHS Compliant|ECCN EAR99|CE Certified|CSA File No. LR37055 Guide 184-N-90|ISO9001-Approved|UL File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
