Part Number # 9070T500D16
SKU # 2195586
9070T500D16

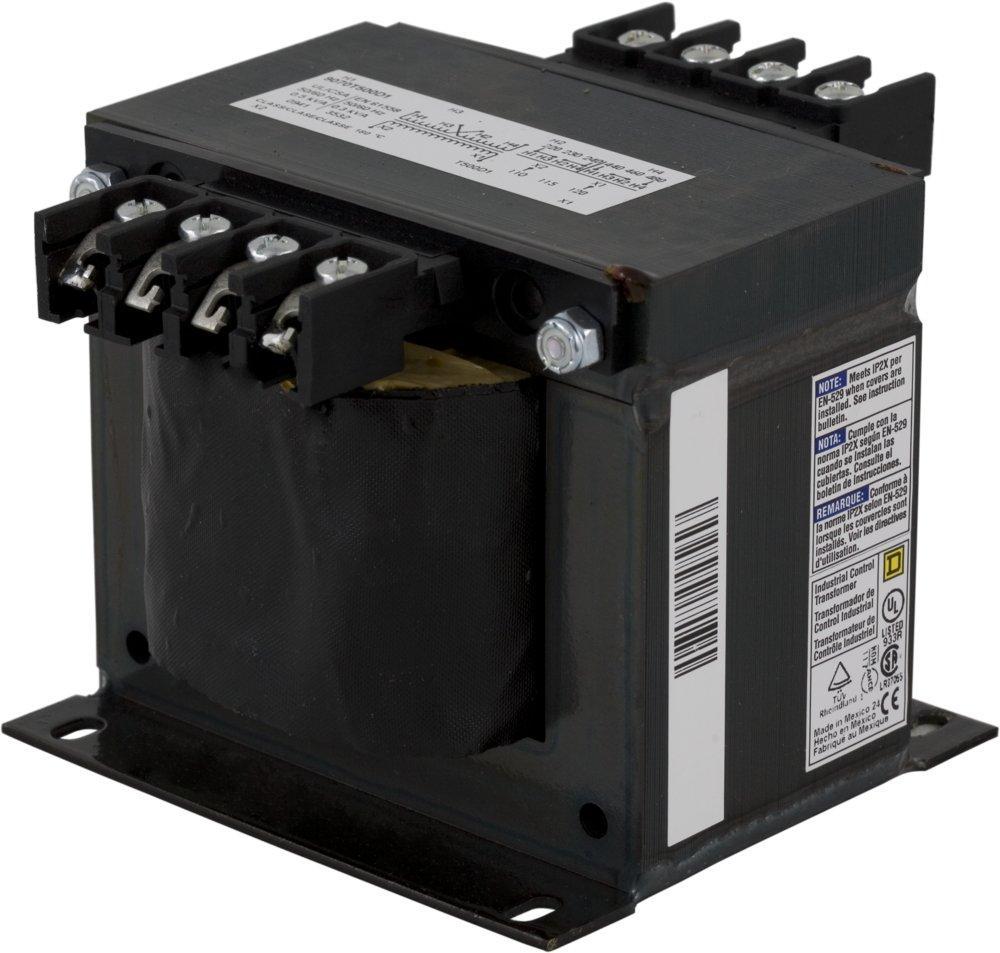

Square D 9070T500D16 Type T Control Transformer
Part Number # 9070T500D16
SKU # 2195586
$1049.68 / Each
Square D 9070T500D16 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9070T500D16 |
| SKU #: | 2195586 |
| Dimensions: | 4.5 in W x 5.49 in D x 3.84 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Phase: | 1, 1 ph |
| Primary Voltage: | 600, 600 V AC, 600 VAC |
| Secondary Voltage: | 24, 24 V AC, 24 VAC |
| Series: | 9070 |
| Type: | Type T |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121002 |
| UPC: | 00785901866831 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1049.68 / Each
Quantity:
Square D 9070T500D16 Type T Control Transformer
Brand: Square D
Part Number: 9070T500D16
Square D™ Control Transformer, Type T, Series: 9070, 600 VAC Primary, 24 VAC Secondary, 500 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, Open, 4.5 in W x 5.49 in D x 3.84 in H
Additional Description: SQD -9070T500D16 (N) TRANSFORMER CONTROL 500VA 600V-24V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer, Type T, industrial control, 500VA, 1 phase, 600V primary, 24V secondary, 115C rise
9070T500D16 Specifications
- Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes
9070T500D16 Application
Industrial Markets, OEM Commercial, Electrical Equipment OEM9070T500D16 Item Features
- Designed with various temperature classes
- Customer installed accessories
- https://www.youtube.com/watch?v=c35mQsPEA58&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
9070T500D16 Standards
CE Certified|CSA LR37055, Guide 184-N-90|ECCN: EAR99|EN 9579078, EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9471921E01)|UL E61239, Guide XPTQ2|RoHS Compliant|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2195586Part Number #9070T500D16UNSPSC39121002UPC00785901866831
Image provided may only be a representation of final product and may include optional equipment
