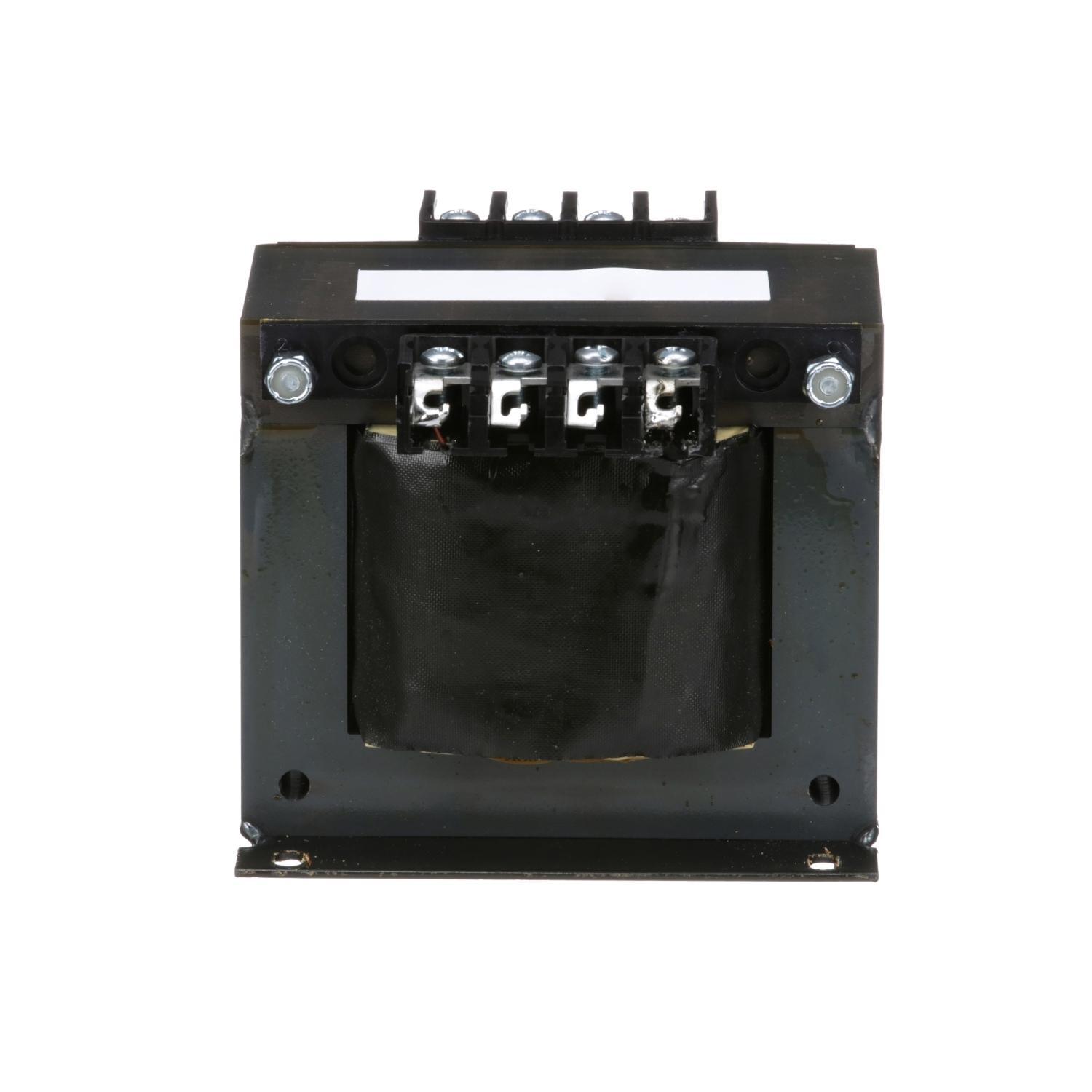

Square D 9070T500D5 Control Transformer
Image Disclaimers Message
Square D 9070T500D5 Control Transformer
Square D 9070T500D5 Control Transformer
Part #:9070T500D5
SKU #: 2185825
Key Features
Part #:9070T500D5
SKU #: 2185825
Brand: Square D
Dimensions: 3.8 in H x 4.5 in W x 5.46 in D, 4.5 in W x 5.46 in D x 3.8 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 180, 180 deg C
Phase: 1
- Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes
- Copper winding
- 575 or 550 VAC primary voltage
- 115 or 110 VAC secondary voltage
- https://www.youtube.com/embed/c35mQsPEA58
Square D 9070T500D5 Control Transformer
Square D Control Transformer, Type T Industrial, Series: 9070, 550/575/600 VAC Primary, 110/115/120 VAC Secondary, 500/300 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 180 deg C Insulation, Open Enclosure, 115 deg C, 4.5 in W x 5.46 in D x 3.8 in H Dimensions
Additional Description: SQD -9070T500D5 TRANSFORMER CONTROL 500VA 600V-120V
Catalog Description: Transformer, Type T, industrial control, 500VA, 1 phase, 600V primary, 120V secondary, 115C rise
