Brand: Square D
9070T50D20

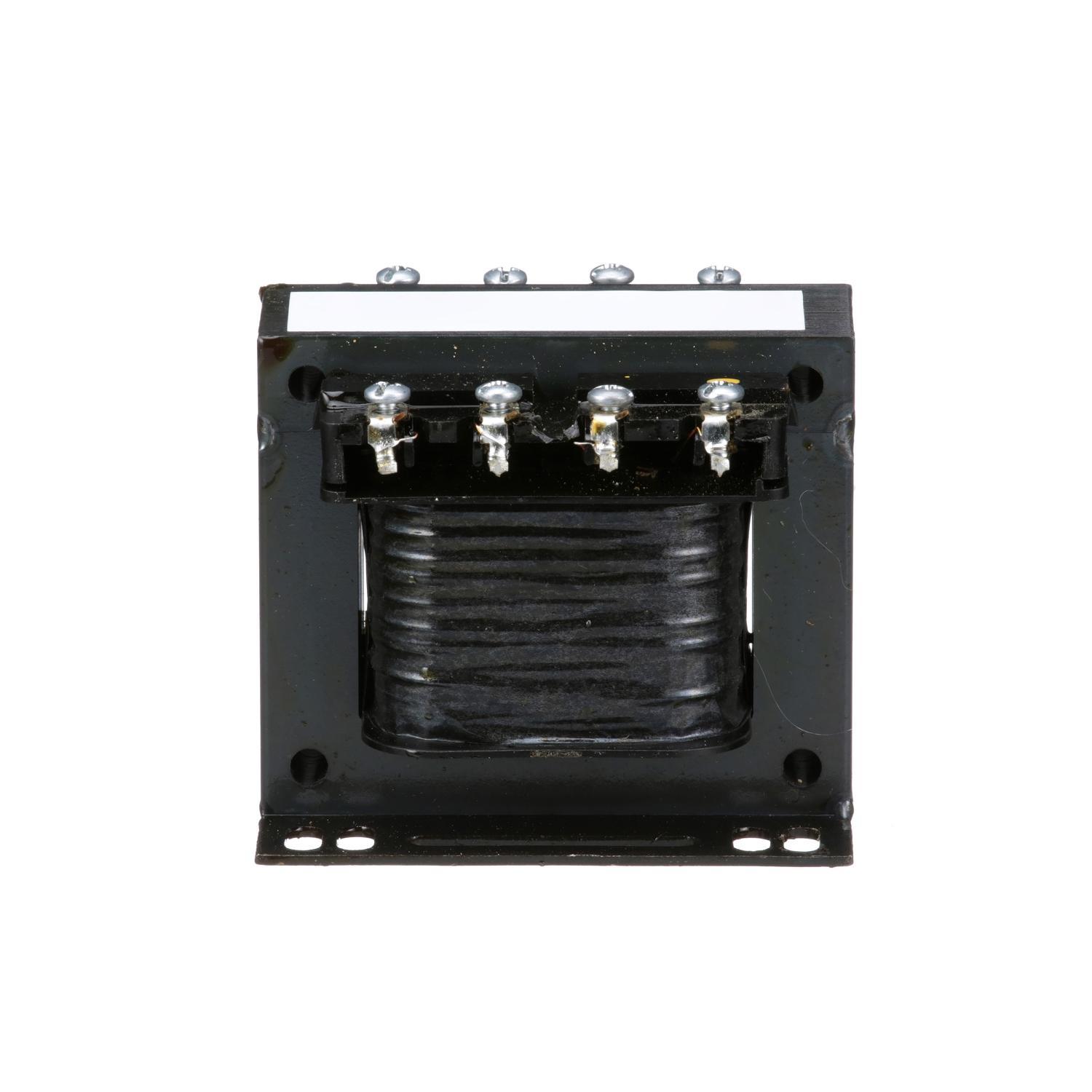

Square D 9070T50D20 Control Transformer
Part Number # 9070T50D20
SKU # 121865
$235.82 / Each
Square D 9070T50D20 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9070T50D20 |
| SKU #: | 121865 |
| Dimensions: | 2.89 in H x 3.38 in W x 3.34 in D, 3.38 in W x 3.34 in D x 2.89 in H |
| Efficiency: | 84.2, 84.2 %, 84.20% |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 105, 105 deg C |
| Phase: | 1 |
| Primary Voltage: | 208/230/460, 208/230/460 V AC, 208/230/460 VAC |
| Secondary Voltage: | 115, 115 V AC, 115 VAC |
| Series: | 9070 |
| Temperature Rating (Degrees F): | 55, 55 deg C |
| Type: | Type T Industrial |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121002 |
| UPC: | 00785901904953 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$235.82 / Each
Quantity:
- Square D Control Transformer, Type T Industrial, Series: 9070, 208/230/460 V AC Primary, 115 VAC Secondary, 50 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 84.2 % Efficiency, 3.38 in W x 3.34 in D x 2.89 in H Dimensions
9070T50D20 Application
Industrial Markets, OEM Commercial and Electrical Equipment Applications9070T50D20 Item Features
- Designed with various temperature classes
- Customer installed accessories
- https://www.youtube.com/embed/c35mQsPEA58
9070T50D20 Standards
CE Certified|CSA LR37055 Guide 184-N-90|ECCN EAR99|EN 947923|EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|EN 947923|EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|REACH Compliant|RoHS Compliant|UL E61239 Guide XPTQ2|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #121865Part Number #9070T50D20UNSPSC39121002UPC00785901904953
