Part Number # 9070T750D5
SKU # 307551

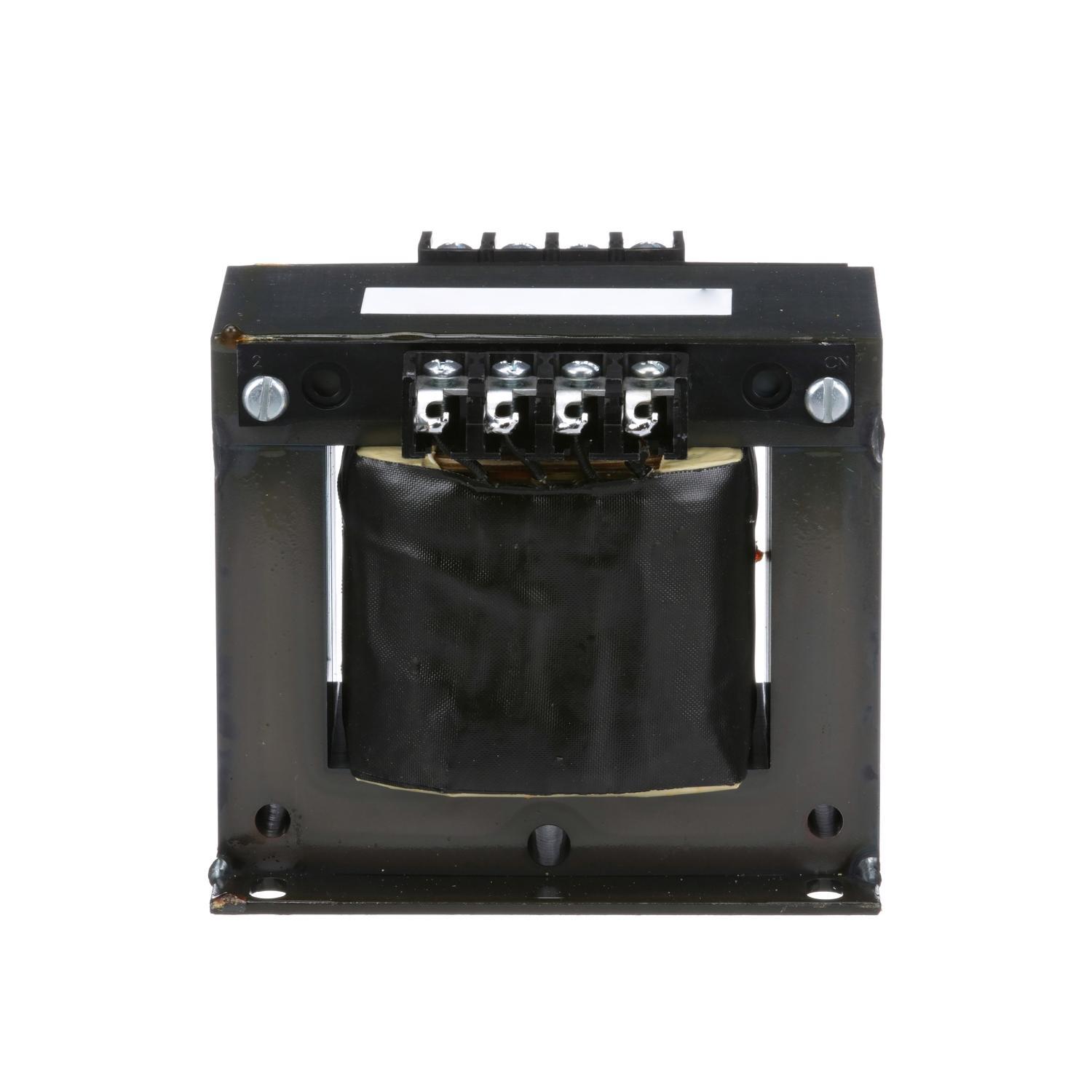

Image provided may only be a representation of
final product and may include optional equipment
9070T750D5
Square D 9070T750D5 Control Transformer
Part Number # 9070T750D5
SKU # 307551
Square D 9070T750D5 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 9070T750D5 |
| SKU #: | 307551 |
| Dimensions: | 4.51 in H x 5.25 in W x 5.61 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 180, 180 deg C |
| Phase: | 1 |
| Primary Voltage: | 550/575/600, 550/575/600 V AC, 550/575/600 VAC |
| Secondary Voltage: | 110/115/120, 110/115/120 V AC, 110/115/120 VAC |
| Series: | 9070 |
| Temperature Rating (Degrees F): | 115, 115 deg C |
| Type: | Type T Industrial |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121026 |
| UPC: | 00785901739036 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 9070T750D5 Control Transformer
Brand: Square D
Part Number: 9070T750D5
Square D Control Transformer, Type T Industrial, Series: 9070, 550/575/600 VAC Primary, 110/115/120 VAC Secondary, 750 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 180 deg C Insulation, Open Enclosure, 115 deg C, 4.51 in H x 5.25 in W x 5.61 in D Dimensions
Additional Description: SQD -9070T750D5 TRANSFORMER CONTROL 750VA 600V-120V 600V-120V
Catalog Description: Transformer, Type T, industrial control, 750VA, 1 phase, 600V primary, 120V secondary, 115C rise
9070T750D5 Application
For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes, industrial markets, OEM commercial and electrical equipment OEM applications9070T750D5 Item Features
- Designed with various temperature classes
- Customer installed accessories
- https://www.youtube.com/embed/c35mQsPEA58
9070T750D5 Standards
CE Certified|CSA LR37055, Guide 184-N-90|ECCN EAR99|EN 9579078, EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9471921E01)|REACH Compliant|RoHS Compliant|UL E61239, Guide XPTQ2|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #307551Part Number #9070T750D5UNSPSC39121026UPC00785901739036
