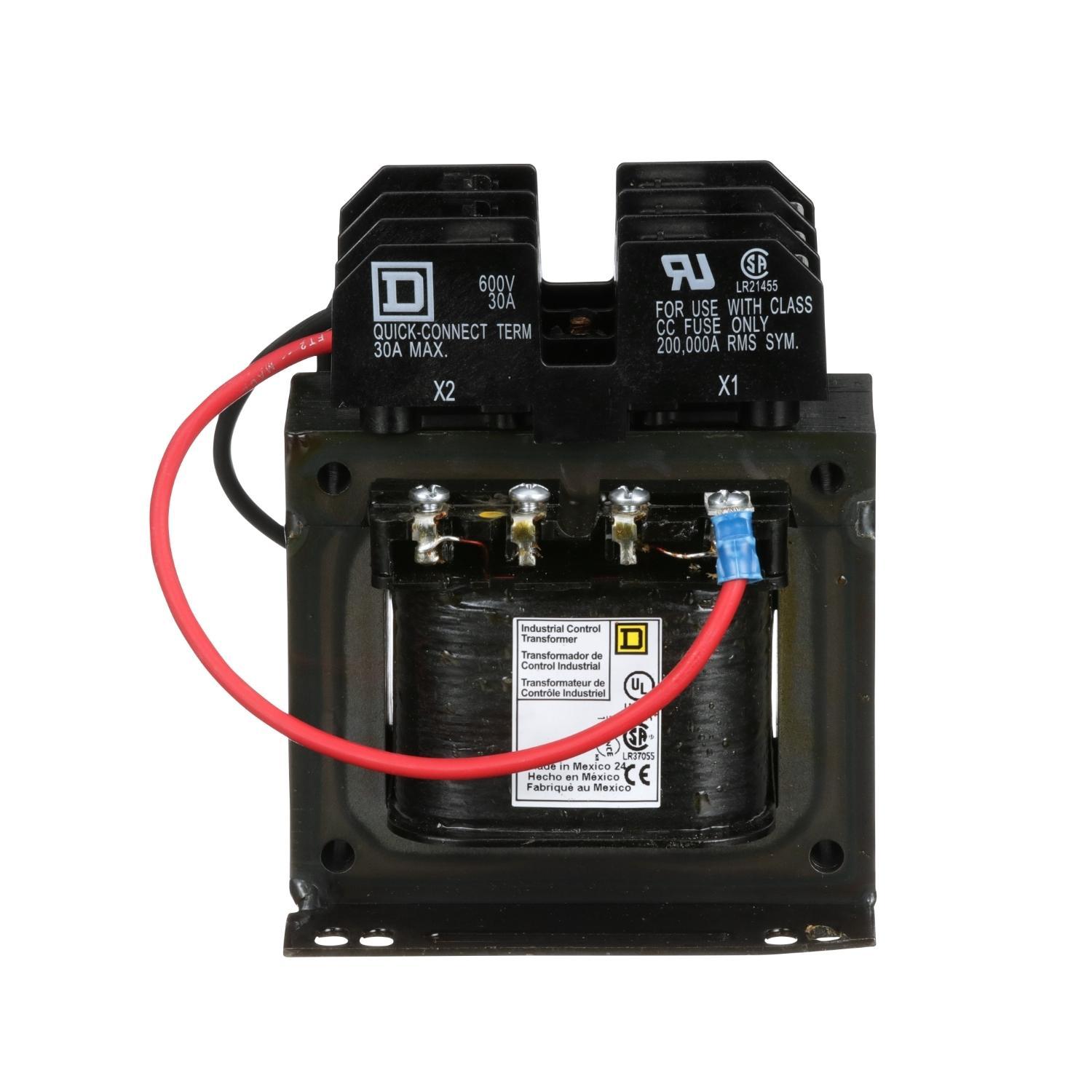

Square D 9070TF150D20 Control Transformer
Image Disclaimers Message
Square D 9070TF150D20 Control Transformer
Square D 9070TF150D20 Control Transformer
Part #:9070TF150D20
SKU #: 118126
Key Features
Part #:9070TF150D20
SKU #: 118126
Brand: Square D
Dimensions: 3.75 in W x 3.59 in D x 4.5 in H, 4.5 in H x 3.75 in W x 3.59 in D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 105 deg C
Phase: 1
- Copper winding
- Stocked in a wide variety of size
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D finger safe covers
- Compatible with Square D control power fuse kits
- Competitively priced with other universal control power transformers on the market
- Consist of two primary fuse blocks and one secondary fuse block
- Factory installed fuse blocks are pre wired and mounted on top of the transformer
- This design frees up space normally used for separate fuse blocks
- Interchangeable with type T transformer except for their increased height
- 0.41 x 1.5 in (class CC) primary fuse, copper winding, 105 deg C insulation temperature
- https://www.youtube.com/embed/c35mQsPEA58
Square D 9070TF150D20 Control Transformer
Square D Control Transformer, Type TF Industrial, 208/230/460 VAC Primary, 115 VAC Secondary, 150 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 3.75 in W x 3.59 in D x 4.5 in H Dimensions
Additional Description: SQD -9070TF150D20 TRFMR CONTROL 150VA 208/230/460V-115V
Catalog Description: Industrial control transformer, Type TF, 1 phase, 150VA, 208/230/460V primary, 115V secondary, 50/60Hz
