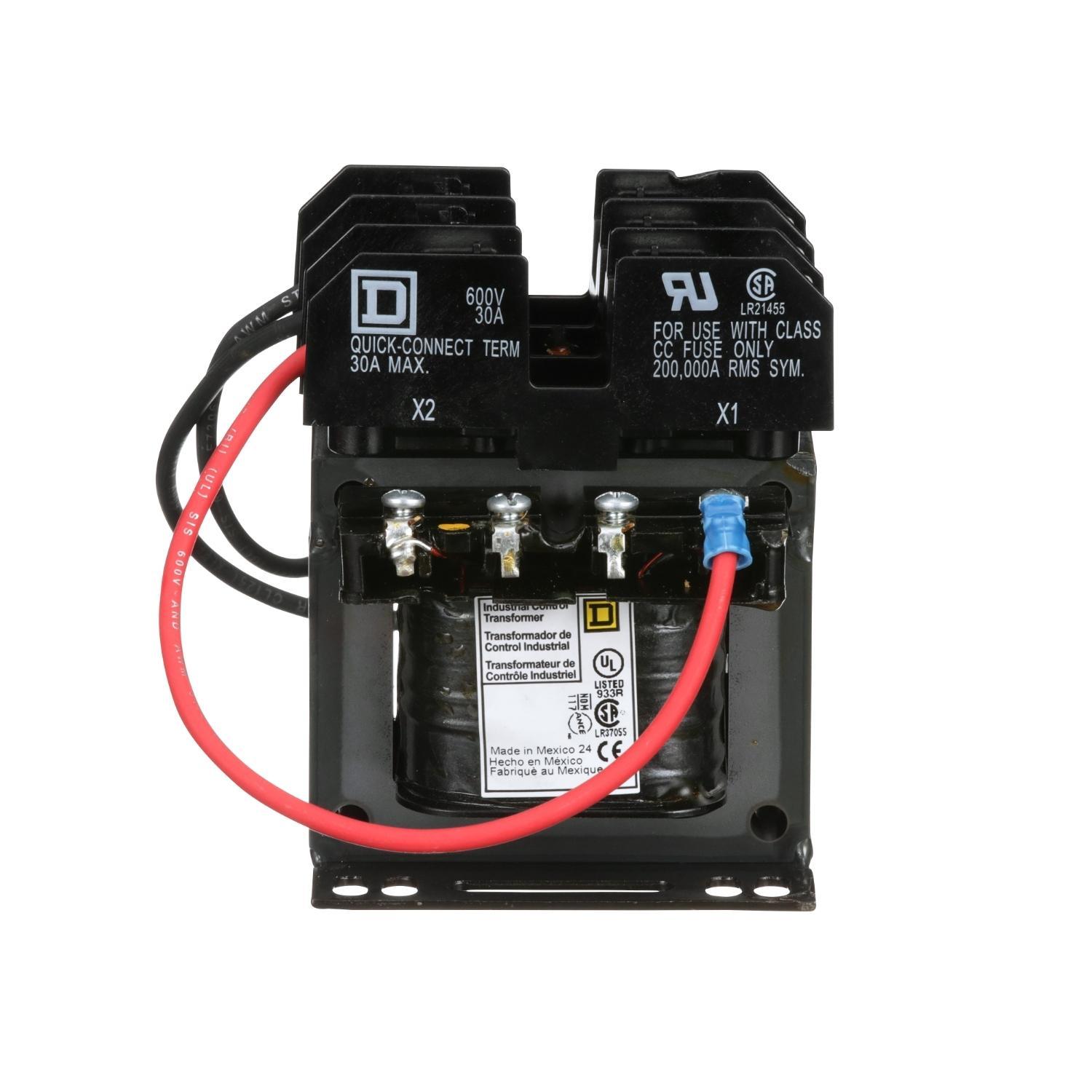

Square D 9070TF50D23 Control Transformer
Square D 9070TF50D23 Control Transformer
Part #:9070TF50D23
SKU #: 2219269
Key Features
Part #:9070TF50D23
SKU #: 2219269
Brand: Square D
Dimensions: 3 in W x 3.09 in D x 4 in H, 4 in H x 3 in W x 3.09 in D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 105 deg C
Phase: 1
- Copper winding
- 0.41 x 1.5 in (class CC) primary fuse holders
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D Finger-Safe covers
- Compatible with Square D control power fuse kits
- Competitively priced with other universal control power transformers on the market
- 120x240 VAC primary voltage rating
- 24 VAC secondary voltage rating
- https://www.youtube.com/embed/c35mQsPEA58
Square D 9070TF50D23 Control Transformer
Square D Control Transformer, Type TF Industrial, 120 x 240, 120 x 240 VAC Primary, 24 VAC Secondary, 50 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 3 in W x 3.09 in D x 4 in H Dimensions
Additional Description: SQD -9070TF50D23 TRANSFORMER CONTROL 50VA 120/240V-24V
Catalog Description: Transformer, Type TF, industrial control, 50 VA, 120/240 VAC primary / 24 VAC secondary, 1 phase, 50/60 Hz, 55 °C rise
