Brand: Square D

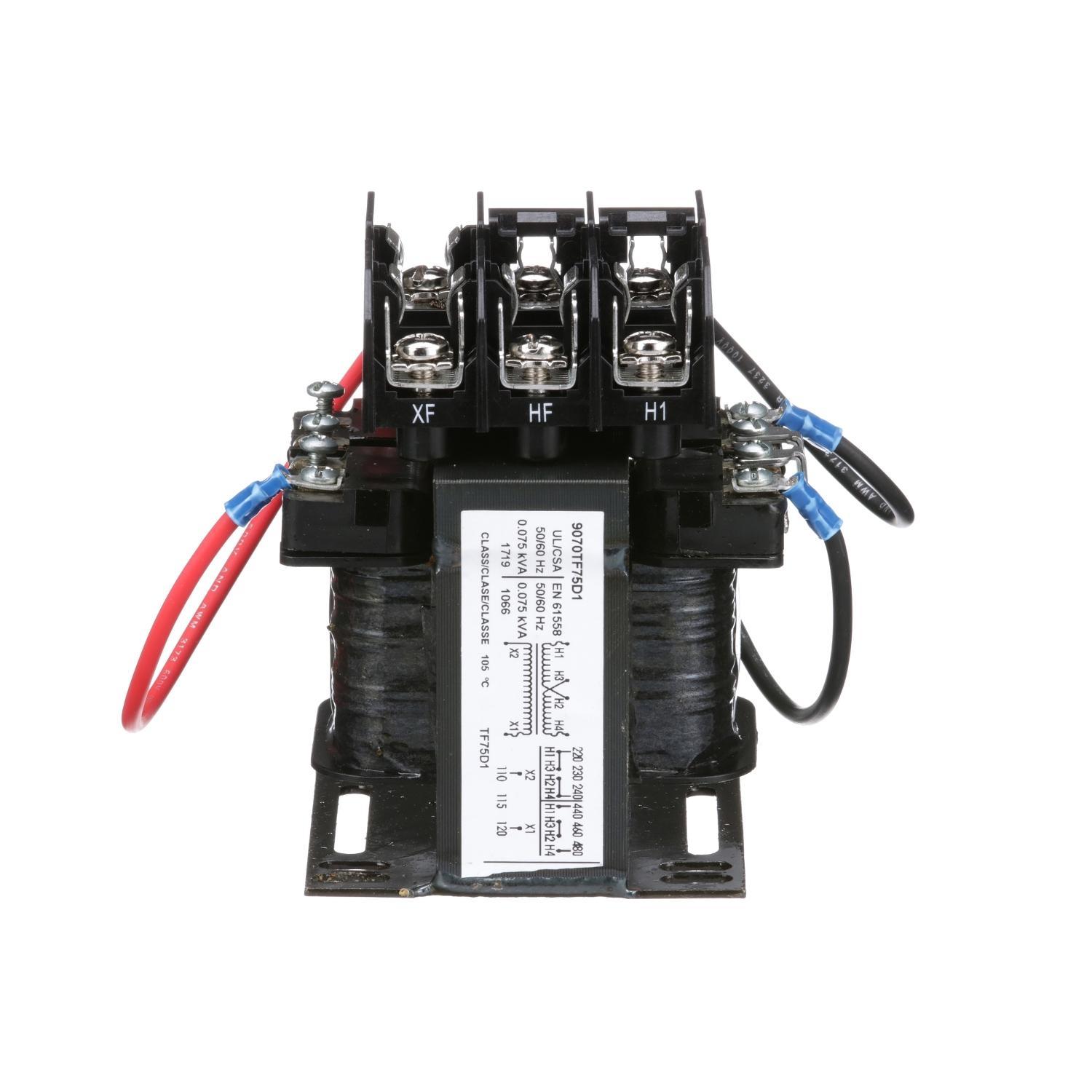

Square D 9070TF75D1 Control Transformer
Image Disclaimers Message
Brand: Square D
Square D 9070TF75D1 Control Transformer
Brand: Square D
Square D 9070TF75D1 Control Transformer
Part #:9070TF75D1
SKU #: 35994
$231.64/EA
Key Features
Part #:9070TF75D1
SKU #: 35994
Brand: Square D
Dimensions: 3.38 in W x 3.34 in D x 4.25 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 105 deg C
Phase: 1, 1 ph
$231.64/EA
50 In Stock
Ships in 1 Business Day
- Copper winding
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D fingersafe covers
- Compatible with square D control power fuse kits
- Competitively priced with other universal control power transformers on the market
- 0.41 x 1.5 in (class CC) primary fuse holders
- https://www.youtube.com/embed/c35mQsPEA58
Specifications
Brand: Square D
Dimensions: 3.38 in W x 3.34 in D x 4.25 in H
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: 105, 105 deg C
Phase: 1, 1 ph
Power Rating: 75, 75 VA
Primary Voltage: 240/480/230/460/220/440, 240/480/230/460/220/440 VAC
Secondary Voltage: 110/115/120, 110/115/120 VAC
Temperature Rating (Degrees F): 55, 55 deg C
Type: Type TF Industrial Open Style
Connection type: Screw Clamp
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39121002
UPC: 00785901904816
Square D 9070TF75D1 Control Transformer
Square D Control Transformer, Type TF Industrial Open Style, 240/480/230/460/220/440 VAC Primary, 110/115/120 VAC Secondary, 75 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 105 deg C, Open, 55 deg C, 3.38 in W x 3.34 in D x 4.25 in H
Additional Description: SQD -9070TF75D1 TRANSFORMER CONTROL 75VA 240/480V-120V
Catalog Description: Industrial control transformer, Type TF, 1 phase, 75VA, 240x480V primary, 120V secondary, 50/60Hz
Item FeaturesTop Mounted Fuse Block
Item Features
Item FeaturesBuy American Act Compliant|CE Certified|CSA File No. LR37055 Guide No. 184-N-90|ECCN EAR99|NEC Article 450|RoHS Compliant|UL 508 File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
