Part Number # BDA140203
SKU # 2413484
BDA140203

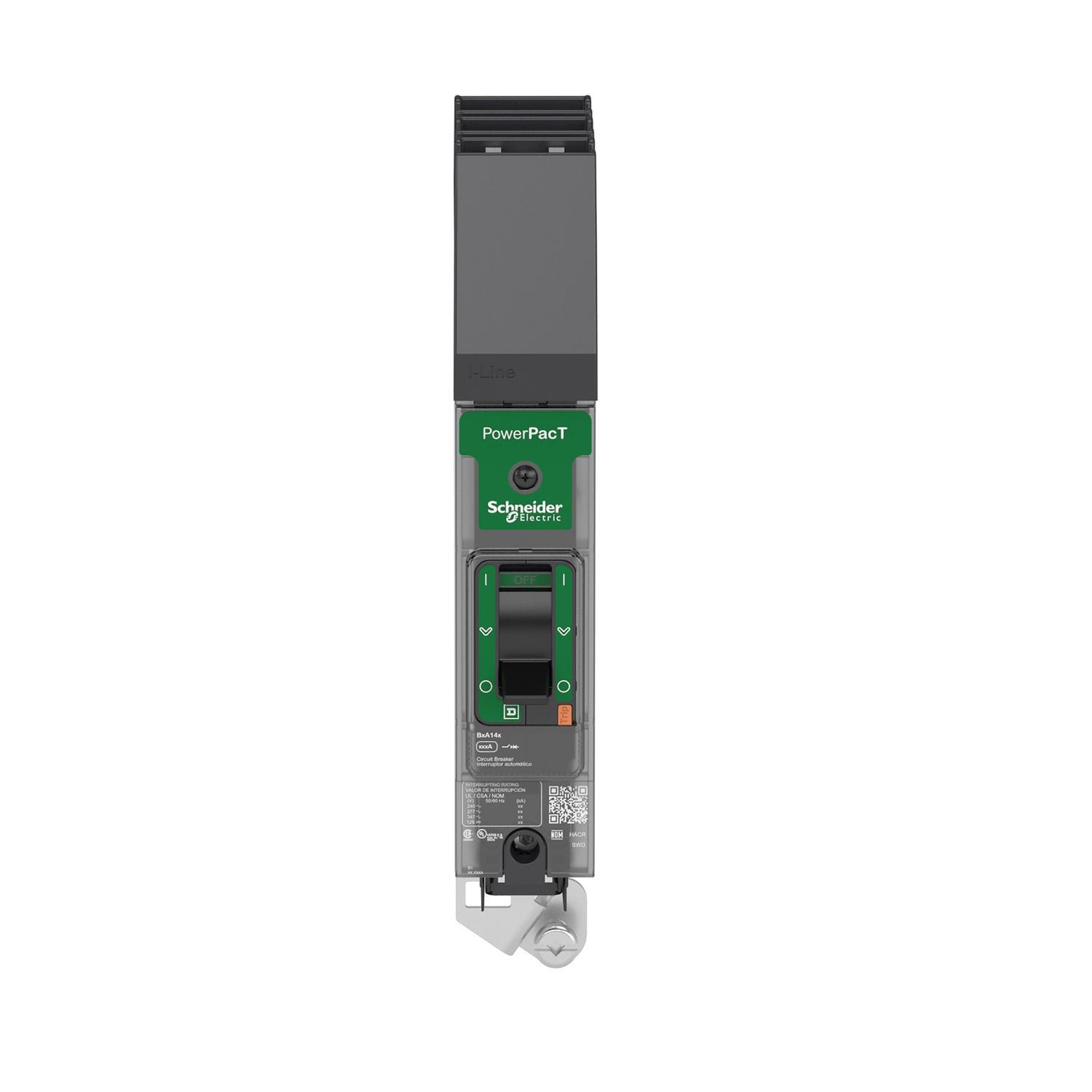

Square D BDA140203 I-Line PowerPact Molded Case Circuit Breaker
Part Number # BDA140203
SKU # 2413484
Square D BDA140203 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BDA140203 |
| SKU #: | 2413484 |
| Actuator Type: | Toggle |
| Amperage Rating: | 20 A |
| Dimensions: | 1.06 in W x 4.01 in D x 5.39 in H |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600Y/347 VAC |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 400 to 600 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 2/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481151513 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D BDA140203 I-Line PowerPact Molded Case Circuit Breaker
Brand: Square D
Part Number: BDA140203
Schneider Electric I-Line PowerPact Molded Case Circuit Breaker, 480Y/277 VAC, 20 A, 50/60 Hz Frequency, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600Y/347 VAC Interrupt, B Frame, Thermal/Magnetic Trip, 400 to 600 A Trip, 1 Pole, Toggle Actuator, Line/Load Lug Connection, 14 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 1.06 in W x 4.01 in D x 5.39 in H Dimensions, Gray
Additional Description: SQD -BDA140203 MOLDED CASE CIRCUIT BREAKER 277V 20A
Catalog Description: Circuit breaker, PowerPacT B, 20A, 1 pole, 480Y/277VAC, 18kA, I-Line, thermal magnetic, 80%, B
BDA140203 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building ApplicationsBDA140203 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BDA140203 Standards
BAA Compliant|CSA C22.2 #5|CCC Certified|CE Certified|EAC Certified|EN/IEC 60947-2, 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2413484Part Number #BDA140203UNSPSC39121616UPC03606481151513
Image provided may only be a representation of final product and may include optional equipment
