Part Number # BDF26015
SKU # 2412918
BDF26015

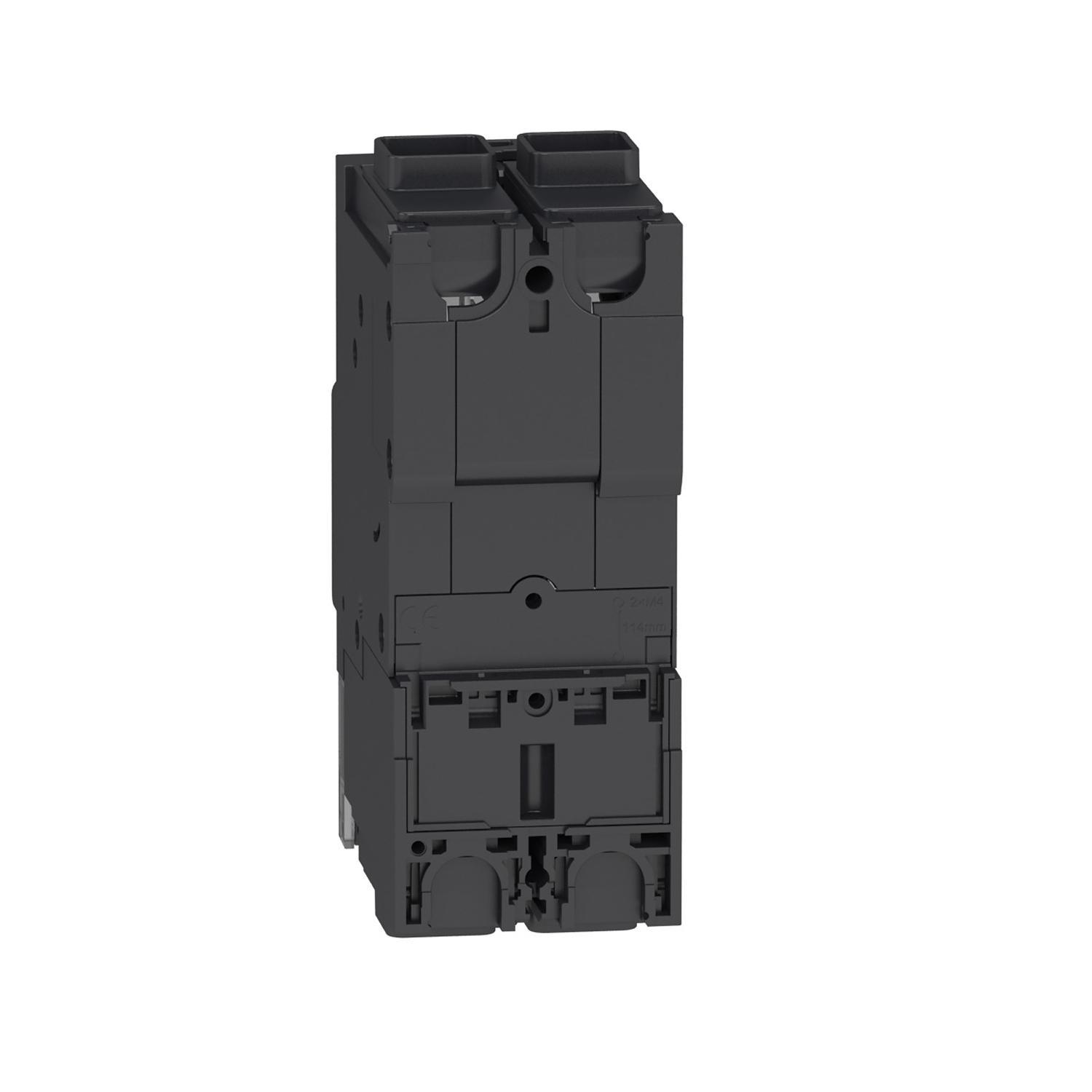

Square D BDF26015 PowerPact Molded Case Circuit Breaker
Part Number # BDF26015
SKU # 2412918
Square D BDF26015 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BDF26015 |
| SKU #: | 2412918 |
| Actuator Type: | Toggle |
| Amperage Rating: | 15 A |
| Dimensions: | 5.39 in H x 2.13 in W x 3.15 in D |
| Enclosure Type: | IP40/IK07 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 14 kA |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 400 to 600 A |
| Trip Type: | Electronic, Thermal Magnetic/Electronic LI |
| Type: | Type BDF |
| Connection type: | Terminal Nut |
| Country of origin: | US |
| Mounting type: | DIN Rail/Surface/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481148902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D BDF26015 PowerPact Molded Case Circuit Breaker
Brand: Square D
Part Number: BDF26015
Schneider Electric PowerPact Molded Case Circuit Breaker, Type BDF, Series, 600Y/347, Amperage Rating VAC, A 15, Frequency Rating, Hz 50/60, 14 Interrupt, Frame kA, Thermal Magnetic/Electronic LI Trip, Trip Range, A 400 to 600, 2 Pole, Phase, Toggle Actuator, Connection Type, Wire Size, Enclosure Type, DIN Rail/Surface/Threaded Mount, Temperature Rating, deg F -13 to 158, 5.39 in H x 2.13 in W x 3.15 in D, Material, Gray, Finish
Additional Description: SQD -BDF26015 MOLDED CASE CIRCUIT BRKR 600Y/347V 15A
Catalog Description: Circuit breaker, PowerPacT B, 15A, 2 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
BDF26015 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building ApplicationsBDF26015 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BDF26015 Standards
UL 489|CSA C22.2 No. 5|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NMX J-266|NEMA AB1|CE Certified|CCC Certified|EAC Approved|NOM Certified|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2412918Part Number #BDF26015UNSPSC39121616UPC03606481148902
Image provided may only be a representation of final product and may include optional equipment
