Brand: Square D
BJL16030

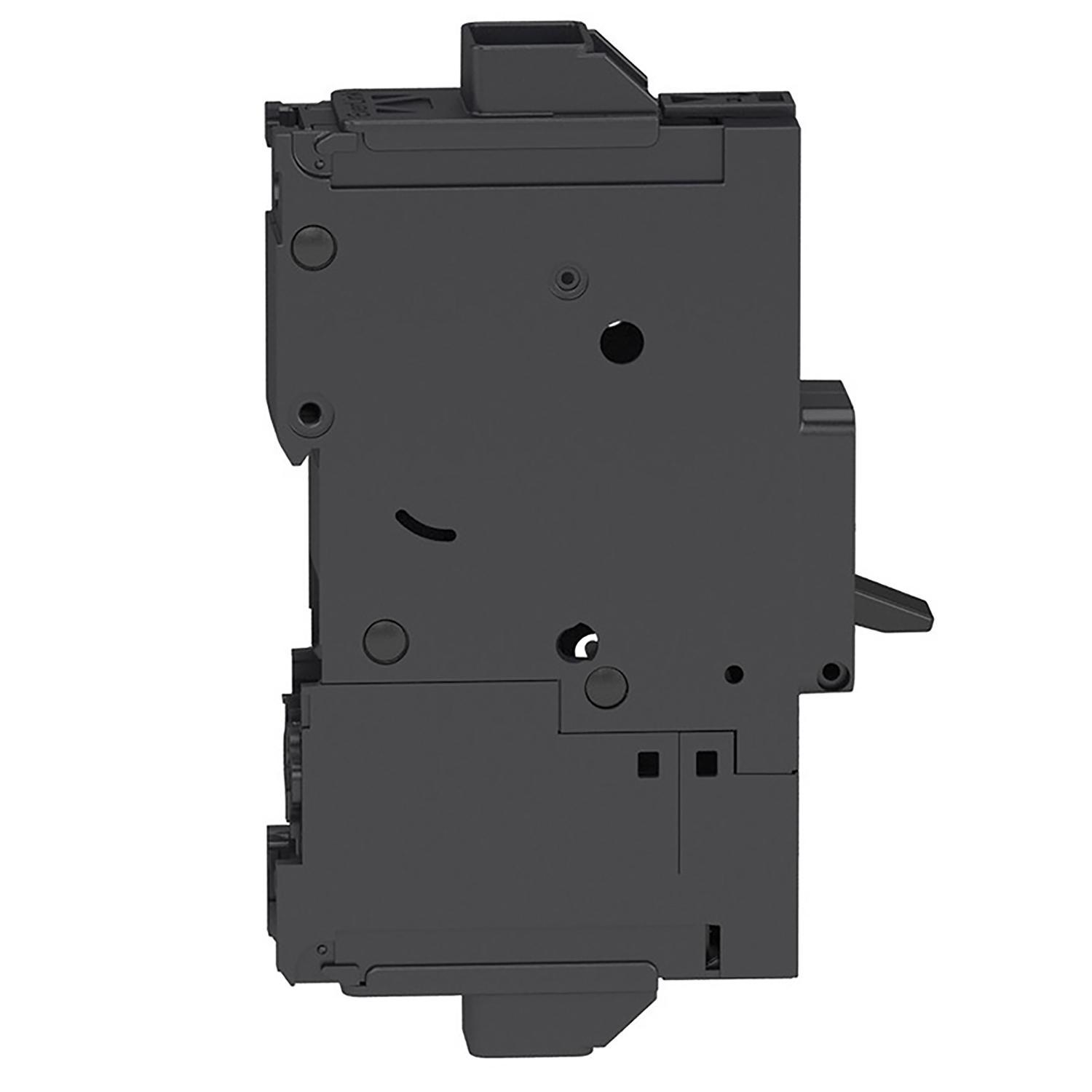

Square D BJL16030 Powerpact Everlink Molded Case Circuit Breaker
Part Number # BJL16030
SKU # 2331061
$354.53 / Each
Typical price:$583.00 / Each
Square D BJL16030 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BJL16030 |
| SKU #: | 2331061 |
| Actuator Type: | Toggle |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 5.39 in H x 1.06 in W x 4.01 in D |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 400 to 600, 400 to 600 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu |
| Color: | Gray |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481193919 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$354.53 / Each
Typical price:$583.00 / Each
Quantity:
- Square D PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 30 A, 50/60 Hz, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 1 Pole, 1, Toggle Actuator, Line/Load Lug, 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 1.06 in W x 4.01 in D, Gray
BJL16030 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building ApplicationsBJL16030 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BJL16030 Standards
CSA C22.2 No. 5|CE Certified|CCC Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2331061Part Number #BJL16030UNSPSC39121616UPC03606481193919
