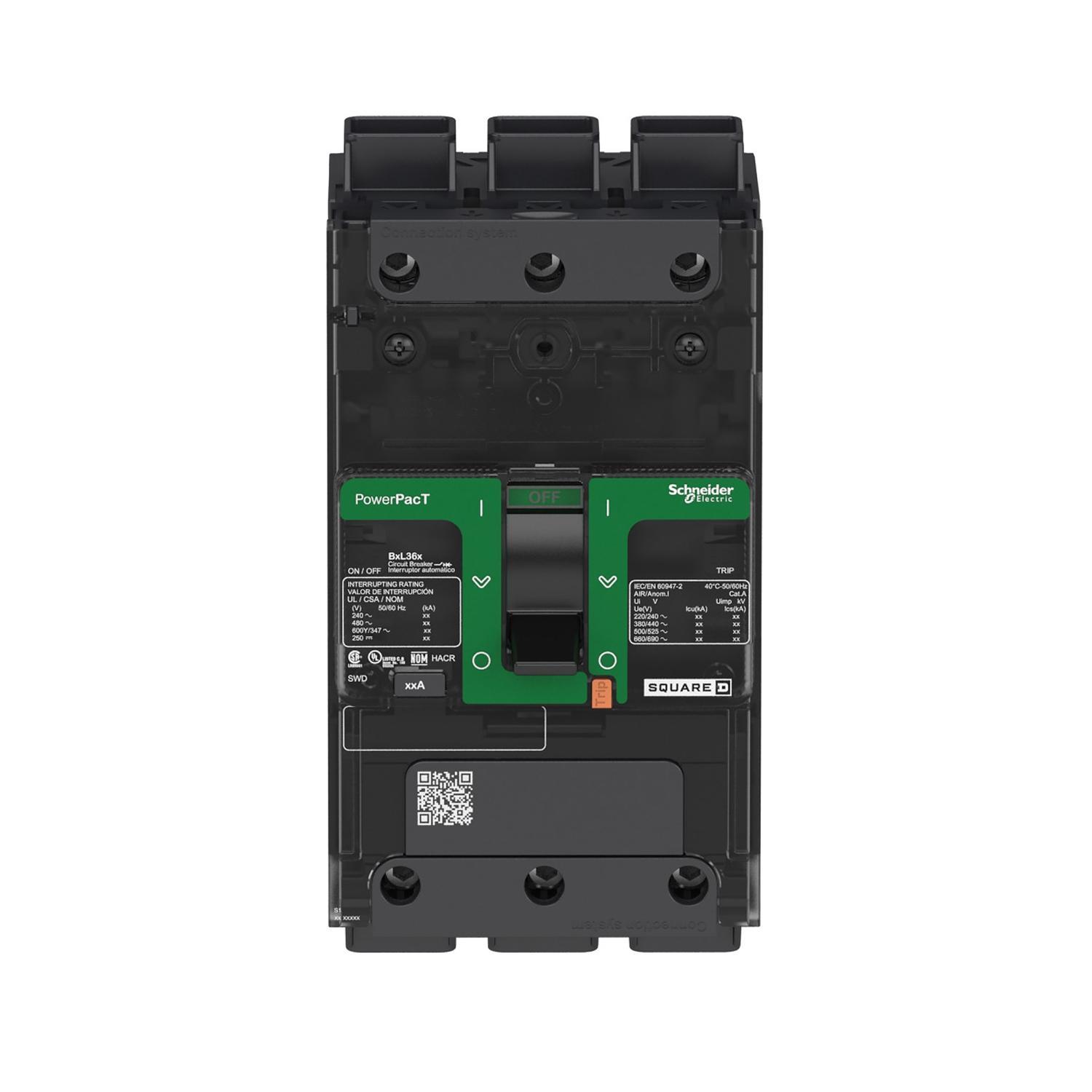

Square D BJL36050LU Powerpact Molded Case Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D BJL36050LU Powerpact Molded Case Circuit Breaker
Brand: Square D
Square D BJL36050LU Powerpact Molded Case Circuit Breaker
Part #:BJL36050LU
SKU #: 2336578
$1519.35/EA
Key Features
Part #:BJL36050LU
SKU #: 2336578
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 50, 50 A
Dimensions: 5.39 in H x 3.19 in W x 3.15 in D
Enclosure Type: IP40/IK07
Frame: B
$1519.35/EA
- PowerPact B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards
- One product can be used and sourced globally
- B-frame circuit breakers have the smallest footprint in the PowerPact family of industrial molded case circuit breaker products from Square D by Schneider Electric
- PowerPact B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
- Offered in unit mount construction only with a 100% protected neutral located in the far left pole
- B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product
- Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
- B-frame circuit breakers with thermal magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole
- 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC interrupt rating
- EverLink lug with control wire terminal ON end and EverLink lug OFF end
- Screw plate/clip on 35 mm symmetrical DIN-rail mount
Specifications
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 50, 50 A
Dimensions: 5.39 in H x 3.19 in W x 3.15 in D
Enclosure Type: IP40/IK07
Frame: B
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 25, 25 kA
Number of Poles: 3
Temperature Rating (Degrees F): -13 to 158, -13 to 158 deg F
Trip Range: 480 to 720, 480 to 720 A
Trip Type: Thermal Magnetic/Electronic LI
Type: Type BJL
Voltage Rating: 600Y/347, 600Y/347 VAC
Wire Size: 14 to 2/0 AWG Cu, 14 to 3/0 AWG Al/Cu
Color: Gray
Connection type: EverLink Lug, EverLink™ Lug
Country of origin: US
Mounting type: DIN Rail/Surface/Threaded
Manufacturer Name: Schneider Electric
UNSPSC: 39121616
UPC: 03606481149725
Item FeaturesIndustrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building Applications
Item Features
Item FeaturesUL 489|CSA C22.2 No. 5|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NMX J-266|NEMA AB1|CE Certified|CCC Certified|EAC Approved|NOM Certified|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov
