Part #:GB2CB10
SKU #: 134690
$277.32/6EA
Key Features
Part #:GB2CB10
SKU #: 134690
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 5, 5 A
Dimensions: 15 mm W x 67 mm D x 74 mm H, 74 mm H x 15 mm W x 67 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
$277.32/6EA
- Category a conforming to IEC 60947-2, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1 utilization category
- 50/60 Hz conforming to IEC 60947-2 network frequency
- 50% at 110 vac 50/60 Hz, 25% at 230/240 vac 50/60 Hz conforming to IEC 60947-2
- By clips mounting
- Horizontal/vertical mounting position
- Toggle control type
- 277 vac 50/60 Hz conforming to CSA C22.2 no 14, 48 VDC, 250 vac 50/60 Hz conforming to IEC 60947-2, 277 vac 50/60 Hz conforming to UL 1077 rated operational voltage
- 4 kV conforming to IEC 60947-2 rated impulse withstand voltage
- 2 W power dissipation per pole
- 8000 cycles mechanical durability
- 8000 cycles electrical durability
- Connector 1 cable 3/4 to 6 sq-mm, 3/4 to 4 sq-mm, 3/4 to 4 sq-mm, 3/4 to 2-1/2 sq-mm cable stiffness solid without cable end
- 1.2 N-m on connector tightening torque
- Shocks 22 gn for 20 ms conforming to IEC 60068-2-27, vibrations 5 Gn, 5 to 110 Hz conforming to IEC 60068-2-6 mechanical robustness
- (2) 9 mm pitches
- TC protective treatment
- IP20 conforming to IEC 60529 deg of protection
- -40 to 80 deg c ambient air temperature for storage
- 960 deg c conforming to IEC 60695-2-1 fire-resistance
- Icu = 50 kA at 230/240 VAC at 50/60 Hz, Icu = 1 kA at 48 VDC, Icu = 50 kA at 110 VAC 50/60 Hz, Icu = 1.5 kA at 24 VDC conforming to IEC 60947-2
Specifications
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 5, 5 A
Dimensions: 15 mm W x 67 mm D x 74 mm H, 74 mm H x 15 mm W x 67 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 1, 1 kA
Number of Poles: 1
Power Rating: 2, 2 W
Series: GB2
Temperature Rating (Degrees F): -20 to 60, -20 to 60 deg C
Trip Range: 66, 66 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 250 to 277 VAC/48 VDC, 250/277 VAC, 48 VDC, 250/277 VAC/48 VDC
Wire Size: 16 to 12, 16 to 12 AWG
Connection type: Cable
Country of origin: FR
Mounting type: DIN Rail/Plate, Plate/Rail
Manufacturer Name: Schneider Electric
UNSPSC: 39121601
UPC: 00785901214632

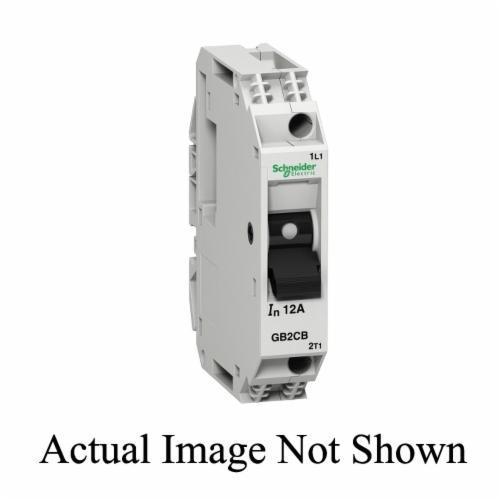

Square D GB2CB10 Tesys Circuit Breaker
Square D TeSys Circuit Breaker, Series: GB2, 250/277 VAC/48 VDC, 5 A, 2 W Power, 50/60 Hz Frequency, 1 kA Interrupt, Thermal/Magnetic Trip, 66 A Trip, 1 Pole, Toggle Actuator, Cable Connection, IP20 Enclosure, Plate/Rail Mounting, -20 to 60 deg C, 74 mm H x 15 mm W x 67 mm D Dimensions
Additional Description: SQD -GB2CB10 CONTROL CIRCUIT BREAKER
Catalog Description: TeSys GB2 thermal magnetic circuit protector, 1 P, 5 A, Id = 66 A
Item FeaturesControl Circuit Applications
Item Features
Item FeaturesRoHS Compliant|UL 1077 File No. E164873 CCN QVNU2|UL Recognized|CSA C22.2 No. 14 File No. LR25490 Class 2115 01|ECCN: EAR99|EN 60947-1/60947-2|IEC 60947-1/60947-2/60529|CE Certified|PROP65: Cancer - www.P65Warnings.ca.gov
