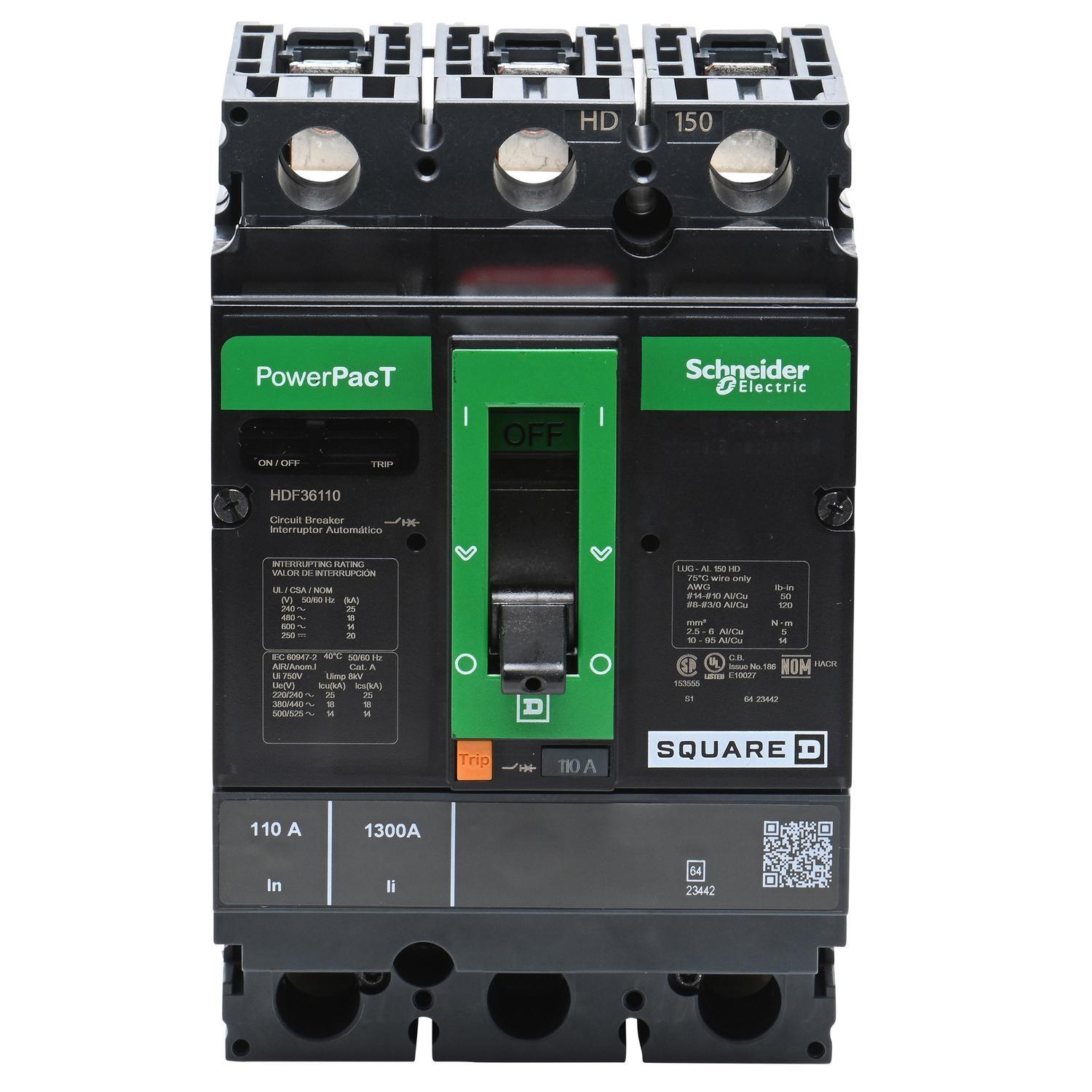

Square D HDF36110 Powerpact Molded Case Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D HDF36110 Powerpact Molded Case Circuit Breaker
Brand: Square D
Square D HDF36110 Powerpact Molded Case Circuit Breaker
Part #:HDF36110
SKU #: 2393471
$2132.70/EA
Key Features
Part #:HDF36110
SKU #: 2393471
Brand: Square D
Amperage Rating: 110, 110 A
Dimensions: 4.12 in W x 4.36 in D x 6.4 in H
Enclosure Type: NEMA AB1
Frame: H
Frequency Rating: 50/60, 50/60 Hz
$2132.70/EA
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPact H and J-frame circuit breakers
- Common accessories across the range of PowerPact Molded Case circuit breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC style rotary operating handles
- NEMA 9421 door mounted rotary operating mechanism
- NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields
- Worldwide availability with unique global part numbers
- Flexible and simple offer, with proven performance
- Direct access to energy metering and energy efficiency thanks to the Micrologic control units
- https://www.youtube.com/embed/1PjFQgO_-Ik
Specifications
Brand: Square D
Amperage Rating: 110, 110 A
Dimensions: 4.12 in W x 4.36 in D x 6.4 in H
Enclosure Type: NEMA AB1
Frame: H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 3
Temperature Rating (Degrees F): 104, 104 deg F
Trip Range: 900 to 1700, 900 to 1700 A
Trip Type: Thermal Magnetic
Voltage Rating: 600, 600 VAC
Wire Size: 14 to 3/0, 14 to 3/0 AWG
Connection type: Busbar Line/Load
Country of origin: US
Mounting type: Backplate/DIN Rail/Flush
Manufacturer Name: Schneider Electric
UNSPSC: 39121601
UPC: 00785901532408
Item FeaturesConstruction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File No. 5|CCC Certified|IEC 60947-2|Green Premium Listed|NMX J-266|RoHS Compliant|REACH Compliant|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
