Part Number # HDL36100CU31X
SKU # 2281896
Image Disclaimers Message
HDL36100CU31X

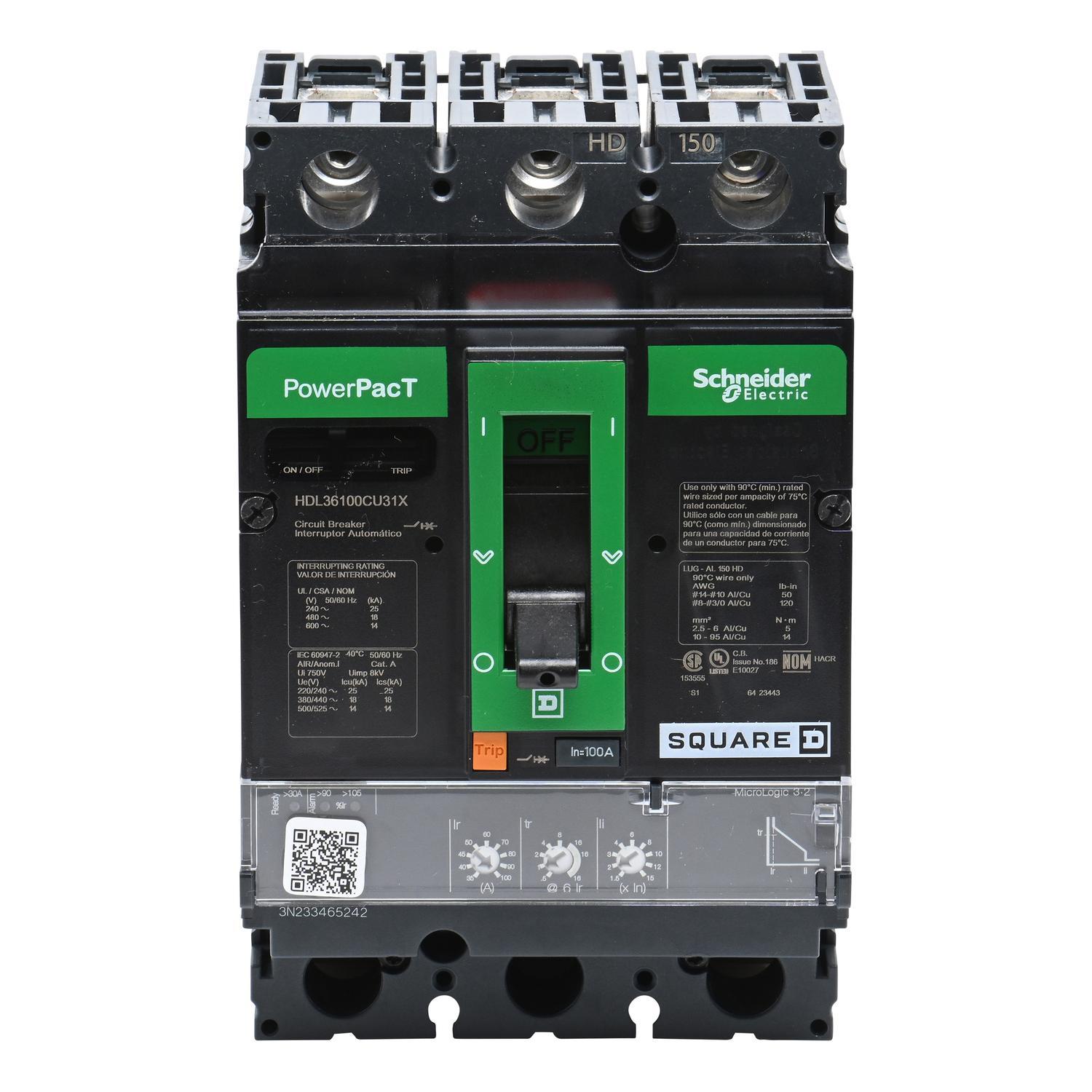

Square D HDL36100CU31X I-Line Powerpact Molded Case Circuit Breaker
Part Number # HDL36100CU31X
SKU # 2281896
$2134.76 / Each
Typical price:$2602.50 / Each
Square D HDL36100CU31X Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HDL36100CU31X |
| SKU #: | 2281896 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | H |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Range: | 900 to 1700, 900 to 1700 A |
| Trip Type: | Electronic, Electronic LI/Thermal Magnetic |
| Type: | Type HDL |
| Wire Size: | 14 to 3/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901945130 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2134.76 / Each
Typical price:$2602.50 / Each
Quantity:
- Square D I-Line PowerPact Molded Case Circuit Breaker, Type HDL, 600 V AC, 100 A, 50/60 Hz, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600 V AC/20 kA at 250 VDC Interrupt, H Frame, Electronic Trip, 900 to 1700 A Trip, 3 Pole, 3, Line/Load Lug, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
HDL36100CU31X Application
Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial MarketsHDL36100CU31X Item Features
- Standard 80 Percent or 100 Percent rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/tmiPbq_-Hk0
HDL36100CU31X Standards
RoHS Compliant|CSA C22.2 No. 5 File No. LR40970|CCC/CE Marked|Federal Specification W-C-375B/GEN|IEC 60947-2|UL 489 File No. E10027|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2281896Part Number #HDL36100CU31XUNSPSC39121616UPC00785901945130
