Part Number # HGA261001
SKU # 2267950
Image Disclaimers Message
HGA261001

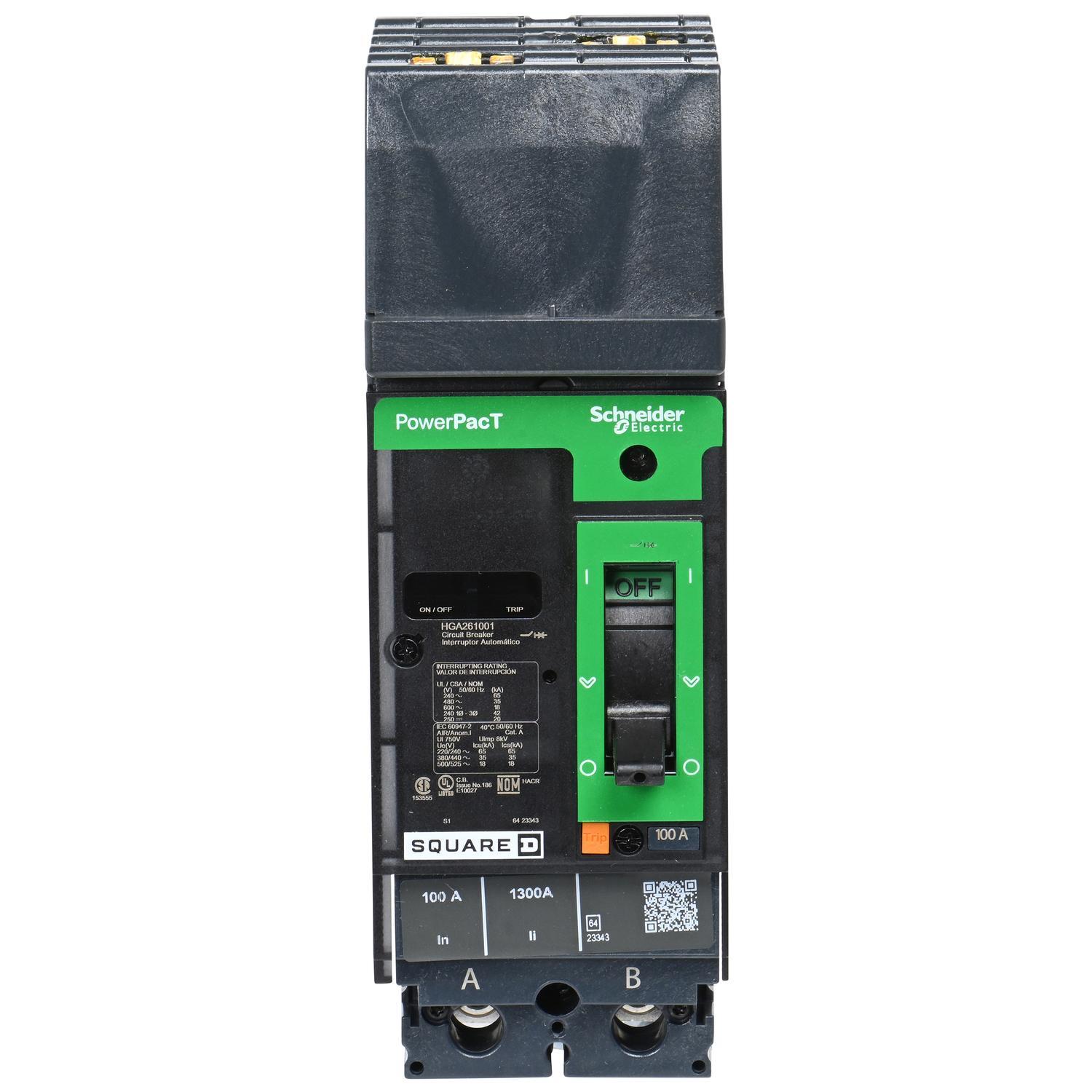

Square D HGA261001 I-Line Powerpact H Molded Case Circuit Breaker
Part Number # HGA261001
SKU # 2267950
$993.63 / Each
Typical price:$1559.00 / Each
Square D HGA261001 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HGA261001 |
| SKU #: | 2267950 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 4.8 in L x 2.94 in W x 9.73 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | G |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18/20/35/65, 18/20/35/65 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 1700 to 900, 1700 to 900 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type HGA |
| Wire Size: | 14 to 3/0 AWG Al/Cu |
| Connection type: | I-Line/Load Lug, I-Line™/Load Lug |
| Country of origin: | US |
| Mounting type: | Plug-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901651529 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$993.63 / Each
Typical price:$1559.00 / Each
Quantity:
- Square D I-Line PowerPact H Molded Case Circuit Breaker, Type HGA, 600 V AC/250 to 500 V DC, 100 A, 50/60 Hz Frequency, 18/20/35/65 kA Interrupt, G Frame, Thermal Magnetic Trip, 1700 to 900 A Trip, 2 Pole, 1 ph, I-Line/Load Lug Connection, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1 Enclosure, Plug-In Mounting, 40 deg C, 4.8 in L x 2.94 in W x 9.73 in H Dimensions
HGA261001 Application
For providing overload and short circuit protectionHGA261001 Item Features
- Standard 80 Percent or 100 Percent rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/tmiPbq_-Hk0
HGA261001 Standards
RoHS Compliant|UL 498 File No. E10027|CSA C22.2 No. 5 File No. LR40970|CCC/CE Marked|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NOM Certified|HACR Rated|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2267950Part Number #HGA261001UNSPSC39121601UPC00785901651529
