Part Number # HGF36100
SKU # 2368438
Image provided may only be a representation of
final product and may include optional equipment
HGF36100

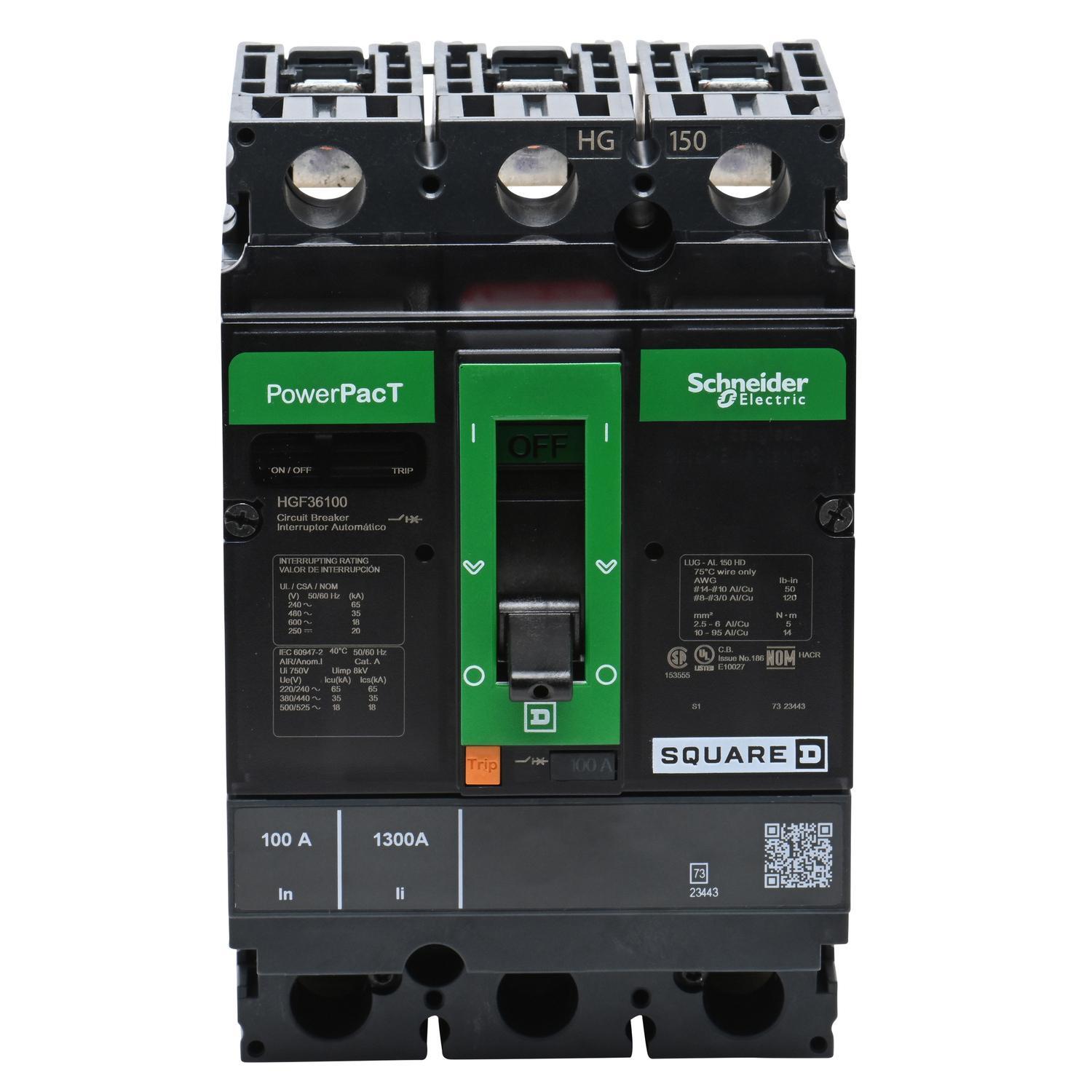

Square D HGF36100 I-Line Powerpact Molded Case Circuit Breaker
Part Number # HGF36100
SKU # 2368438
Square D HGF36100 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HGF36100 |
| SKU #: | 2368438 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 4.12 in W x 4.36 in D x 6.4 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | G |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Range: | 900 to 1700, 900 to 1700 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Connection type: | Bus Bar, Busbar |
| Country of origin: | MX, US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901956105 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D HGF36100 I-Line Powerpact Molded Case Circuit Breaker
Brand: Square D
Part Number: HGF36100
Square D I-Line PowerPact Molded Case Circuit Breaker, 600 VAC, 100 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Interrupt, G Frame, Thermal Magnetic Trip, 900 to 1700 A Trip, 3 Pole, 3, Busbar, NEMA AB1, Surface Mount, 104 deg F, 4.12 in W x 4.36 in D x 6.4 in H
Additional Description: SQD -HGF36100 MOLDED CASE CIRCUIT BREAKER 600V 100A
Catalog Description: Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, busbar, thermal magnetic, 80%
HGF36100 Application
Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ApplicationsHGF36100 Item Features
- Standard 80 Percent or 100 Percent rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- QR codes for easy access to device documentation
- https://www.youtube.com/embed/08co8m1vWjY
HGF36100 Standards
BAA Compliant|RoHS Compliant|CSA C22.2 #5 File #LR40970|CCC Certified|CE Certified|Federal Specification W-C-375B/GEN|IEC 60947-2|UL 489 File #E10027|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2368438Part Number #HGF36100UNSPSC39121616UPC00785901956105
