Part Number # JJM36200
SKU # 2362299

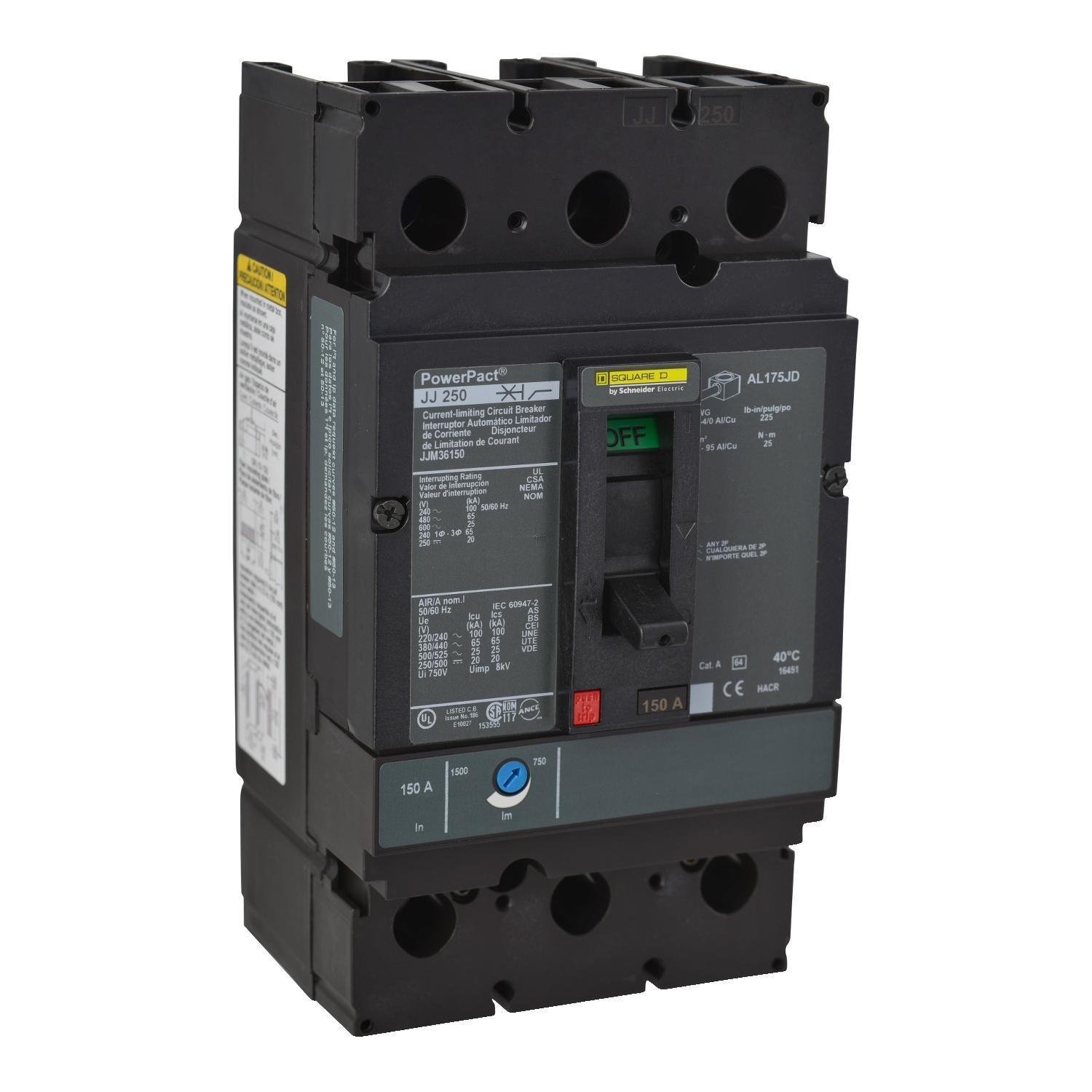

Image provided may only be a representation of
final product and may include optional equipment
JJM36200
Square D JJM36200 Powerpact J Molded Case Circuit Breaker
Part Number # JJM36200
SKU # 2362299
Square D JJM36200 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | JJM36200 |
| SKU #: | 2362299 |
| Actuator Type: | Toggle |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 5 in L x 4.12 in W x 7.52 in H |
| Frame: | J |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 20/25/65/100, 20/25/65/100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 1000 to 2000, 1000 to 2000 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type JJM |
| Wire Size: | 3/0 AWG to 350 kcmil Al/Cu |
| Connection type: | Line Lug |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901660897 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D JJM36200 Powerpact J Molded Case Circuit Breaker
Brand: Square D
Part Number: JJM36200
Square D PowerPact J Molded Case Circuit Breaker, Type JJM, 600 VAC, 250 VDC, 200 A, 50/60 Hz Frequency, 20/25/65/100 kA Interrupt, J Frame, Thermal/Magnetic Trip, 1000 to 2000 A Trip, 3 Pole, 3 ph, Toggle Actuator, Line Lug Connection, 3/0 AWG to 350 kcmil Al/Cu Wire, Surface Mounting, 40 deg C, 5 in L x 4.12 in W x 7.52 in H Dimensions
Additional Description: SQD -JJM36200 MOLDED CASE CIRCUIT BREAKER 600V 200A
Catalog Description: Circuit breaker, PowerPacT J, 200A, 3 pole, 600VAC, 25kA, lugs ON end, thermal magnetic, 80%
JJM36200 Application
Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ApplicationsJJM36200 Item Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Easy to install, extremely versatile, a wide variety of terminal options
JJM36200 Standards
RoHS Compliant|UL 489 File No. E10027|CSA C22.2 No. 5-02 File No. LR40970|CCC/CE Marked|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NEMA AB1|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2362299Part Number #JJM36200UNSPSC39121616UPC00785901660897
