- Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions
- Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection
- Characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads
- 25 kA at 600 VAC, 42 kA at 240 VAC, 30 kA at 480 VAC
Specifications
Brand: Square D
Amperage Rating: 300 A
Dimensions: 6 in W x 5.8 in D x 11 in H
Frame: L
Frequency Rating: 50/60 Hz
Interrupt Rating: 25 kA
Number of Poles: 3
Phase: 3 ph
Temperature Rating (Degrees F): 104 deg F
Trip Range: 1500 to 3000 A
Trip Type: Thermal/Magnetic
Type: Type LA Standard
Voltage Rating: 600 VAC/250 VDC
Wire Size: 1 AWG to 600 kcmil, (2) 250 kcmil
Connection type: Lug
Country of origin: MX, US
Mounting type: Plug-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121616
UPC: 00785901426240

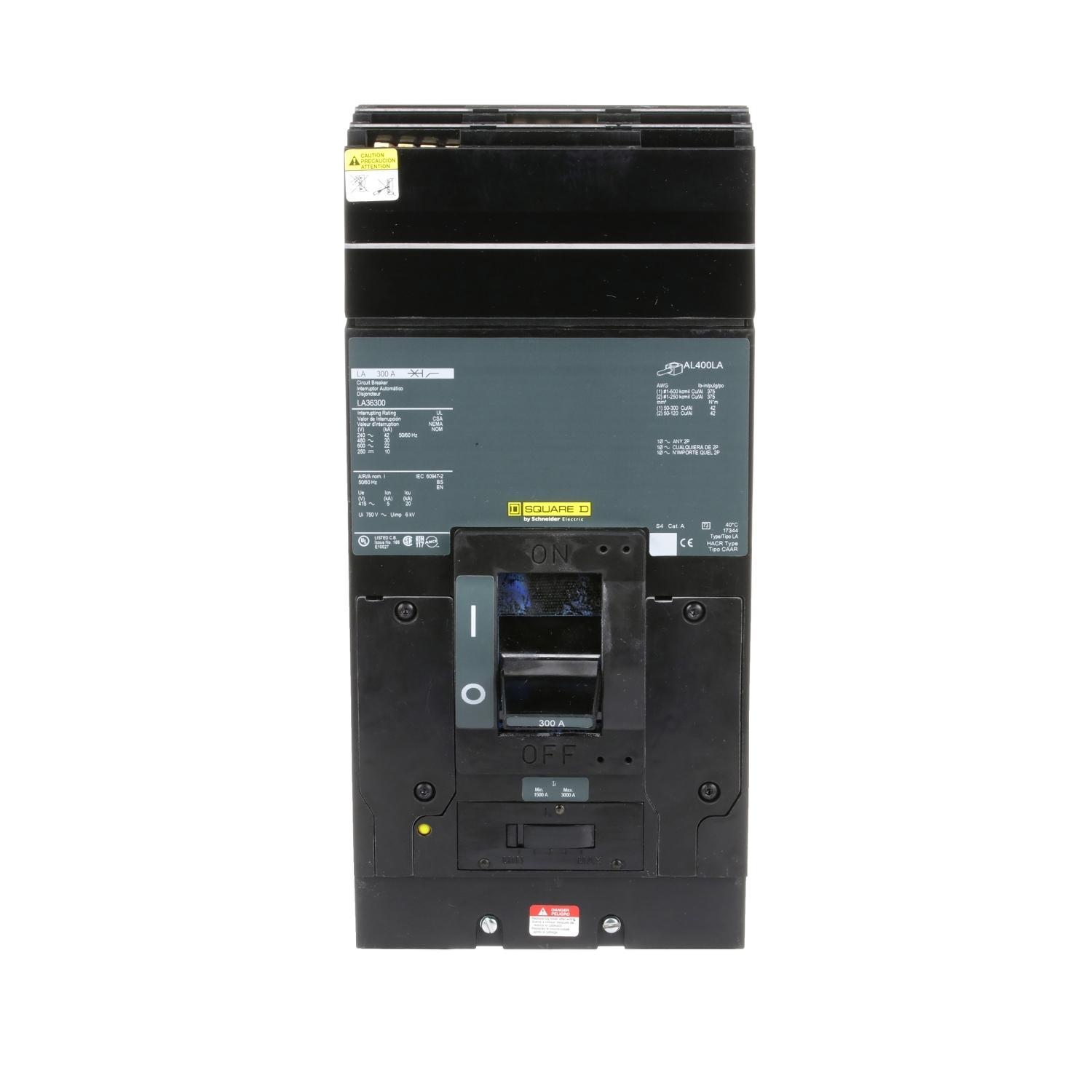

Square D LA36300 Molded Case Circuit Breaker
Square D Molded Case Circuit Breaker, Type LA Standard, 600 VAC/250 VDC, 300 A, 50/60 Hz, 25 kA Interrupt, L Frame, Thermal/Magnetic Trip, 1500 to 3000 A Trip, 3 Pole, 3 ph, Lug, 1 AWG to 600 kcmil, (2) 250 kcmil Wire, Plug-On Mount, 104 deg F, 6 in W x 5.8 in D x 11 in H
Additional Description: SQD -LA36300 MOLDED CASE CIRCUIT BREAKER 600V 300A
Catalog Description: Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Item Features
Item FeaturesBuy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
