Brand: Square D

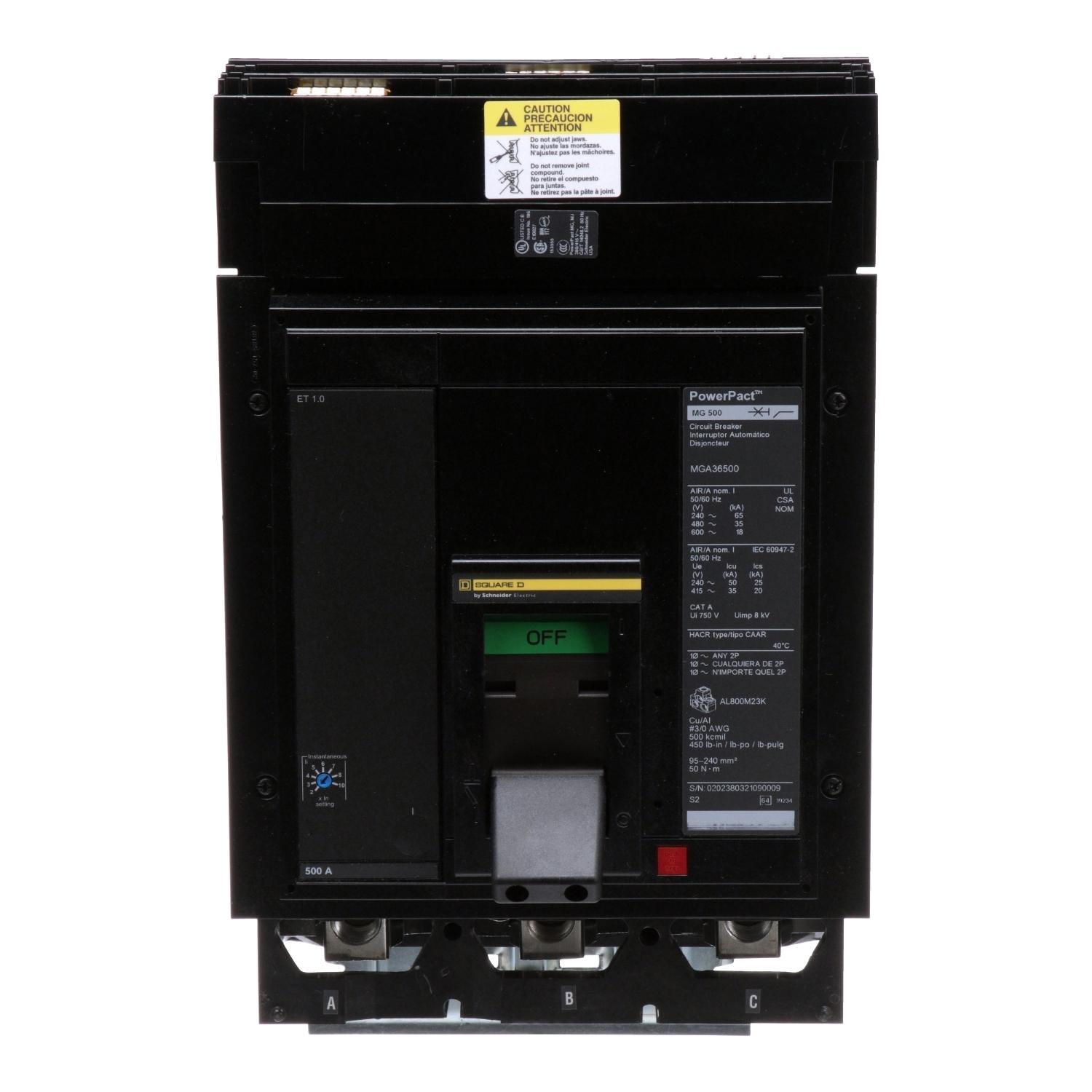

Square D MGA36500 MGA 3-Pole Molded Case Circuit Breaker
Part Number # MGA36500
SKU # 2256855

Brand: Square D
MGA36500
Square D MGA36500 MGA 3-Pole Molded Case Circuit Breaker
Part Number # MGA36500
SKU # 2256855
$5574.67 / Each
Typical price:$8168.00 / Each
Square D MGA36500 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | MGA36500 |
| SKU #: | 2256855 |
| Actuator Type: | Electronic |
| Amperage Rating: | 500 A |
| Dimensions: | 8.1 in L x 8.3 in W x 12.8 in H |
| Frame: | M |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18/35/65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | MGA |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Range: | 500 A |
| Trip Type: | Electronic |
| Wire Size: | 3/0 AWG to 500 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901467908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$5574.67 / Each
Typical price:$8168.00 / Each
Quantity:
- Square D, MGA36500, 3-Pole Molded Case Circuit Breaker, Series: MGA, 600 V AC, 500 A, 50/60 Hz Frequency, 18/35/65 kA Interrupt, M Frame, Electronic Trip, 500 A Trip, 3 Pole, 3 ph, Electronic Actuator, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Wire, Plug-On Mounting, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
MGA36500 Specifications
- 65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
- Aluminum/copper busbar
MGA36500 Application
For providing overload and short circuit protection applicationsMGA36500 Item Features
- Available in 2 or 3 pole design
- Standard 80% rating only
- Common mounting holes, handle locations, and trim dimensions
- Wide range of field installable accessories
- https://www.youtube.com/watch?v=w8gfg57CotU
MGA36500 Standards
UL Listed|IEC Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2256855Part Number #MGA36500UNSPSC39121616UPC00785901467908
Image provided may only be a representation of final product and may include optional equipment
