MJA36400

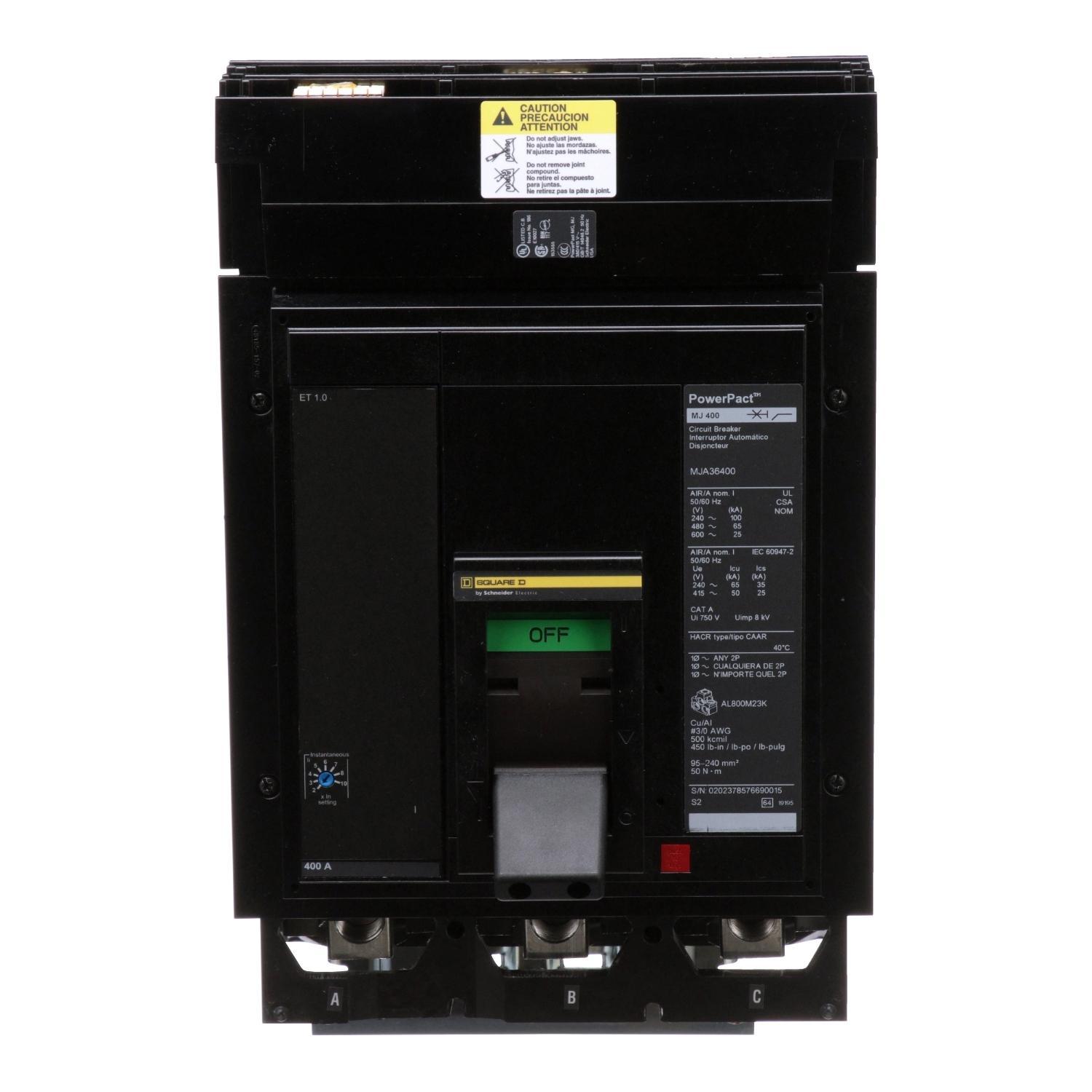

Square D MJA36400 Powerpact M Molded Case Circuit Breaker
Part Number # MJA36400
SKU # 2199294
$6328.25 / Each
Typical price:$9929.00 / Each
Square D MJA36400 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | MJA36400 |
| SKU #: | 2199294 |
| Actuator Type: | Electrical |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 8.1 in L x 8.3 in W x 12.8 in H |
| Frame: | M |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | MJA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 300 to 800, 300 to 800 A |
| Trip Type: | Electronic, Electronic Basic ET1.0 |
| Type: | Type MJA |
| Wire Size: | 3/0 AWG to 500 kcmil |
| Connection type: | I-Line/Load Lug, I-Line™/Load Lug |
| Country of origin: | MX, US |
| Mounting type: | Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901572619 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6328.25 / Each
Typical price:$9929.00 / Each
Quantity:
- Square D, MJA36400, Mja Molded Case Circuit Breaker, Series: MJA, 600 V AC, 400 A, 50/60 Hz Frequency, 25 kA Interrupt, M Frame, Electronic Trip, 300 to 800 A Trip, 3 Pole, 3 ph, Electrical Actuator, I-Line/Load Lug Connection, 3/0 AWG to 500 kcmil Wire, Plug-On Mounting, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
MJA36400 Application
For providing overload and short circuit protectionMJA36400 Item Features
- Available in 2 or 3 pole design
- Standard 80 Percent rating only
- Common mounting holes, handle locations, and trim dimensions
- Wide range of field installable accessories
- https://www.youtube.com/watch?v=3SxmA3ubihc
MJA36400 Standards
Buy American Act Compliant|RoHS Compliant|UL Listed|IEC Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2199294Part Number #MJA36400UNSPSC39121601UPC00785901572619
