Part Number # MJL36500
SKU # 2260145
Image Disclaimers Message
Brand: Square D
MJL36500

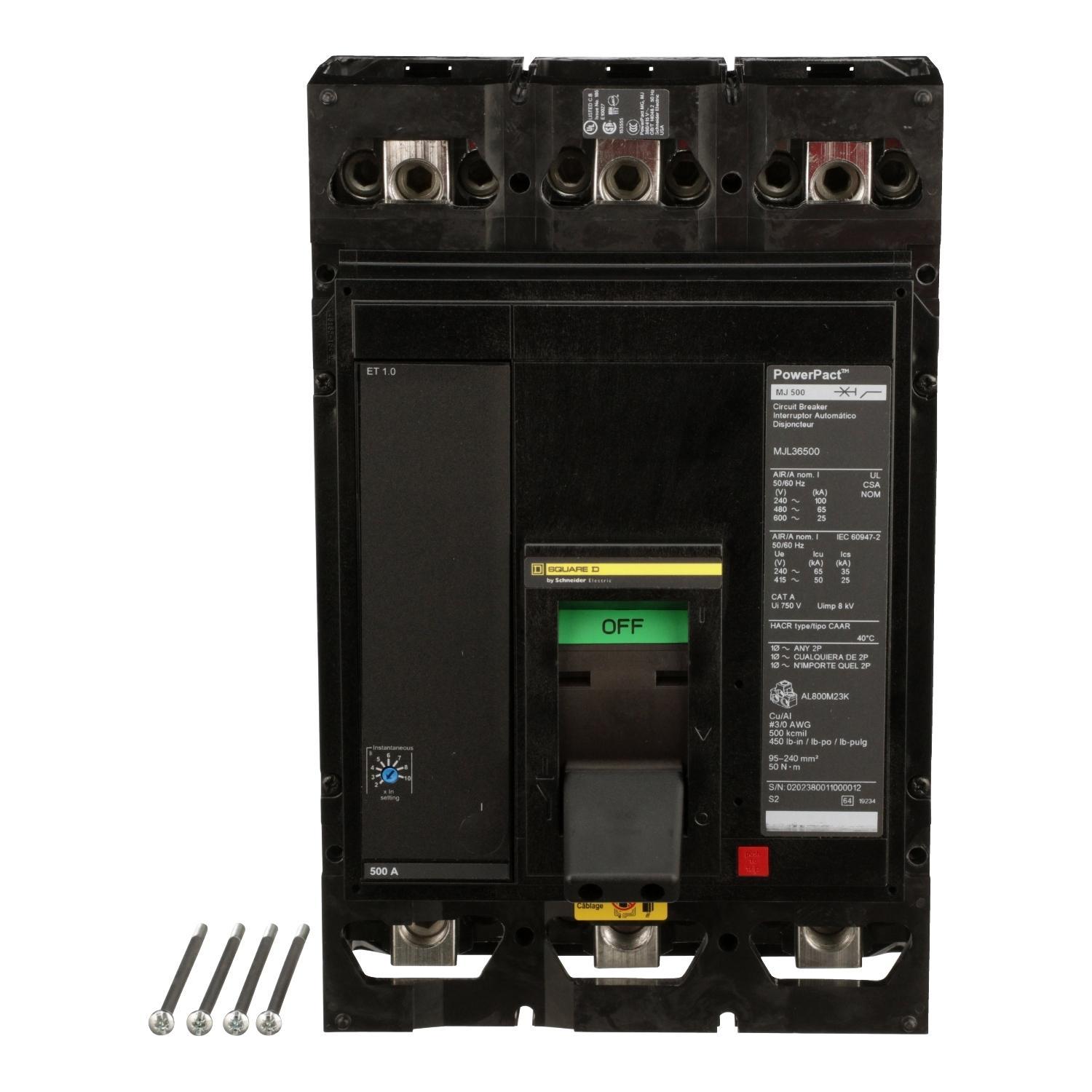

Square D MJL36500 Powerpact Molded Case Circuit Breaker
Part Number # MJL36500
SKU # 2260145
$7756.47 / Each
Typical price:$9456.00 / Each
Square D MJL36500 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | MJL36500 |
| SKU #: | 2260145 |
| Actuator Type: | Electronic |
| Amperage Rating: | 500, 500 A |
| Dimensions: | 8.1 in L x 8.3 in W x 12.8 in H |
| Frame: | M |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC, 25/65/100 |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 500, 500 A |
| Trip Type: | Electronic, Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous |
| Wire Size: | 3/0 AWG to 500 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | MX, US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901570196 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7756.47 / Each
Typical price:$9456.00 / Each
Quantity:
- Square D PowerPact Molded Case Circuit Breaker, 600 V AC, 500 A, 50/60 Hz, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC Interrupt, M Frame, Electronic Trip, 500 A Trip, 3 Pole, 3 ph, Electronic Actuator, Line/Load Lug, 3/0 AWG to 500 kcmil Wire, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H
MJL36500 Application
For providing overload and short circuit protection applicationsMJL36500 Item Features
- Available in 2 or 3 pole design
- Standard 80 Percent rating only
- Common mounting holes, handle locations, and trim dimensions
- Wide range of field installable accessories
MJL36500 Standards
UL 489 File No. E10027|CE Certified|CSA C22.2 No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2260145Part Number #MJL36500UNSPSC39121616UPC00785901570196
