PJA36080U44A

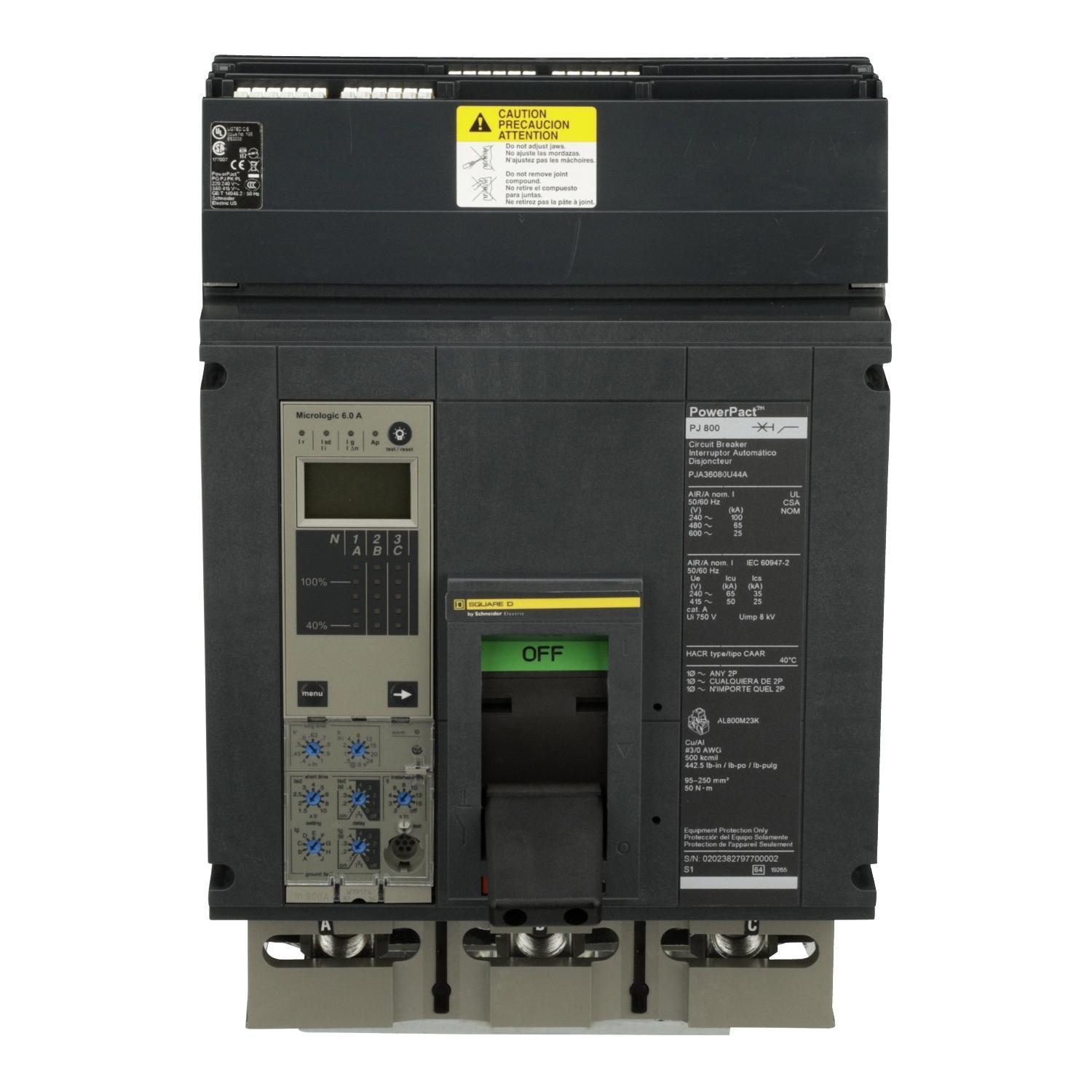

Square D PJA36080U44A I-Line Powerpact P Molded Case Circuit Breaker
Part Number # PJA36080U44A
SKU # 2359521
Square D PJA36080U44A Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | PJA36080U44A |
| SKU #: | 2359521 |
| Actuator Type: | Electronic |
| Amperage Rating: | 800, 800 A |
| Dimensions: | 8.1 in L x 8.3 in W x 16.2 in H |
| Frame: | P |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25/65/100, 25/65/100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 100 to 1200, 100 to 1200 A |
| Trip Type: | Electronic, Electronic Ammeter Micrologic 6.0 A LSIG |
| Type: | Type PJA |
| Wire Size: | 3 AWG, 3/0 AWG to 500 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Busbar/Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901497165 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D PJA36080U44A I-Line Powerpact P Molded Case Circuit Breaker
Brand: Square D
Part Number: PJA36080U44A
Square D I-Line PowerPact P Molded Case Circuit Breaker, Type PJA, 600 VAC, 800 A, 50/60 Hz Frequency, 25/65/100 kA Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Electronic Actuator, Line/Load Lug Connection, 3 AWG, 3/0 AWG to 500 kcmil Wire, Busbar/Plug-On Mounting, 40 deg C, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
Additional Description: SQD -PJA36080U44A MOLDED CASE CIRCUIT BREAKER 600V 800A
Catalog Description: Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 80%, ABC
PJA36080U44A Application
Constructions, Commercial Buildings, Oil, Gas, Marine, Industrial Buildings, Control, Monitoring, Waste Water Treatment Plants, Healthcare Facilities, Data Centers, Educational Campuses, Overload and Short Circuit Protection ApplicationsPJA36080U44A Item Features
- Available in 2, 3, 4 pole design
- Common mounting holes, handle locations and trim dimensions for design standardization
- Common accessories across the range
- Used as main panel disconnect for control panel
PJA36080U44A Standards
RoHS Compliant|UL 489|CSA Certified|NMX Certified|IEC Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2359521Part Number #PJA36080U44AUNSPSC39121616UPC00785901497165
