Brand: Square D

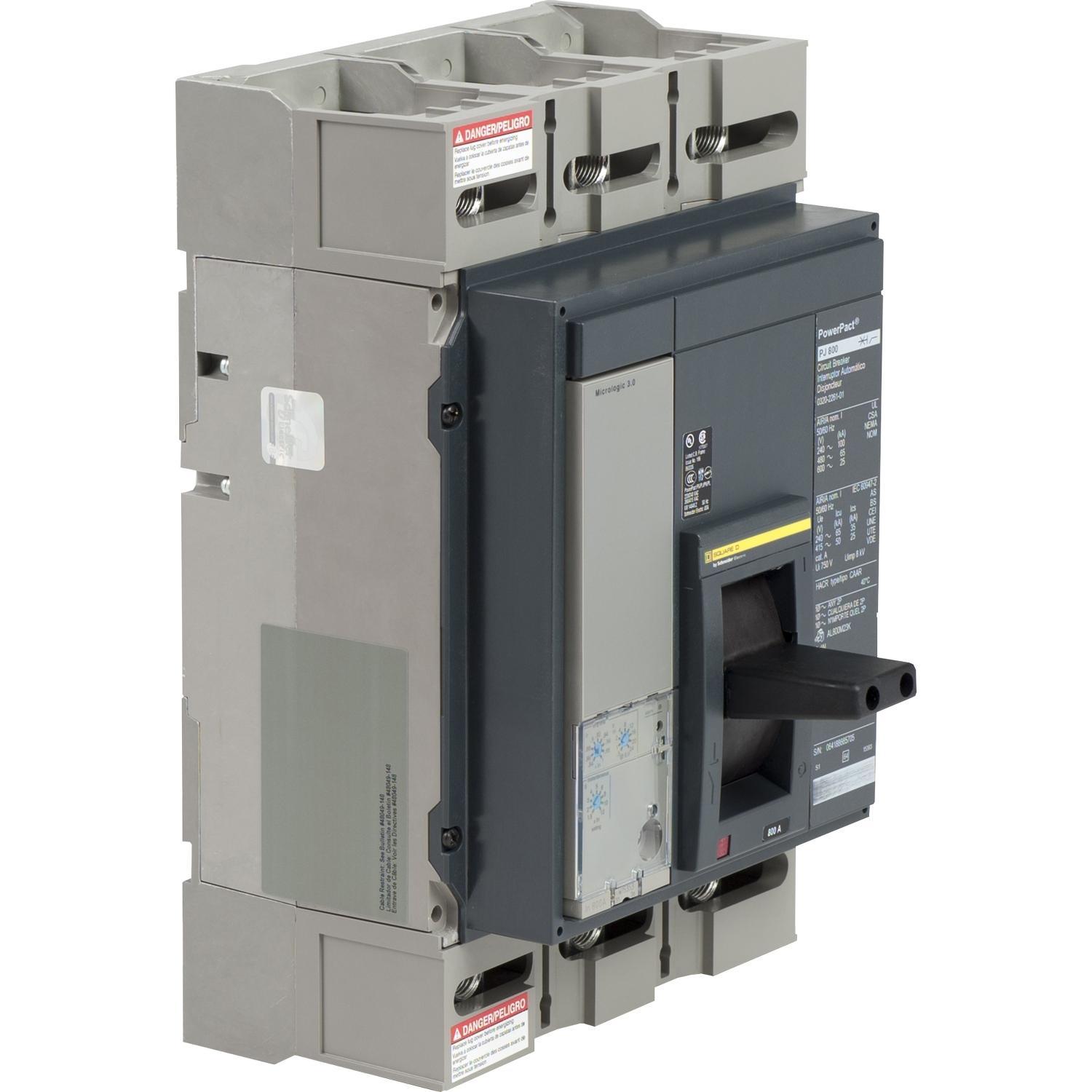

Square D PJL36060CU33A Powerpact Molded Case Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D PJL36060CU33A Powerpact Molded Case Circuit Breaker
Brand: Square D
Square D PJL36060CU33A Powerpact Molded Case Circuit Breaker
Part #:PJL36060CU33A
SKU #: 2305935
$19019.61/EA
Key Features
Part #:PJL36060CU33A
SKU #: 2305935
Brand: Square D
Amperage Rating: 600 A
Dimensions: 8.27 in W x 8.05 in D x 12.86 in H
Enclosure Type: NEMA AB1
Frame: P
Frequency Rating: 60 Hz
$19019.61/EA
- PowerPact M-frame Molded Case Circuit Breakers use an electronic trip system with the simplicity of a thermal magnetic breaker to signal the circuit breaker to open automatically to help protect electrical systems from damage caused by overloads and short circuits
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPact M and P-frame circuit breakers
- Common accessories across the range of PowerPact Molded Case circuit breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC style rotary operating handles
- NEMA 9421 door mounted rotary operating mechanism
- NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated
Specifications
Brand: Square D
Amperage Rating: 600 A
Dimensions: 8.27 in W x 8.05 in D x 12.86 in H
Enclosure Type: NEMA AB1
Frame: P
Frequency Rating: 60 Hz
Interrupt Rating: 25 kA
Number of Poles: 3
Trip Type: Electronic Standard Micrologic 5.0 LSI
Voltage Rating: 600 VAC
Wire Size: (3) 3/0 AWG to 500 kcmil Al/Cu
Connection type: Lug Line/Load
Country of origin: IT, US
Manufacturer Name: Schneider Electric
UNSPSC: 39121601
UPC: 00785901956815
Square D PJL36060CU33A Powerpact Molded Case Circuit Breaker
MOLDED CASE CIRCUIT BREAKER 600V 600A
Additional Description: SQD -PJL36060CU33A MOLDED CASE CIRCUIT BREAKER 600V 600A
Catalog Description: Circuit breaker, PowerPacT P, 600A, 3 pole, 600VAC, 25kA, lugs, Micrologic 5.0, 100%
Item FeaturesConstruction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses Applications
Item Features
Item FeaturesCSA Certified|IEC Certified|Green Premium Listed|NMX|RoHS Compliant|REACH Compliant|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
