Brand: Square D

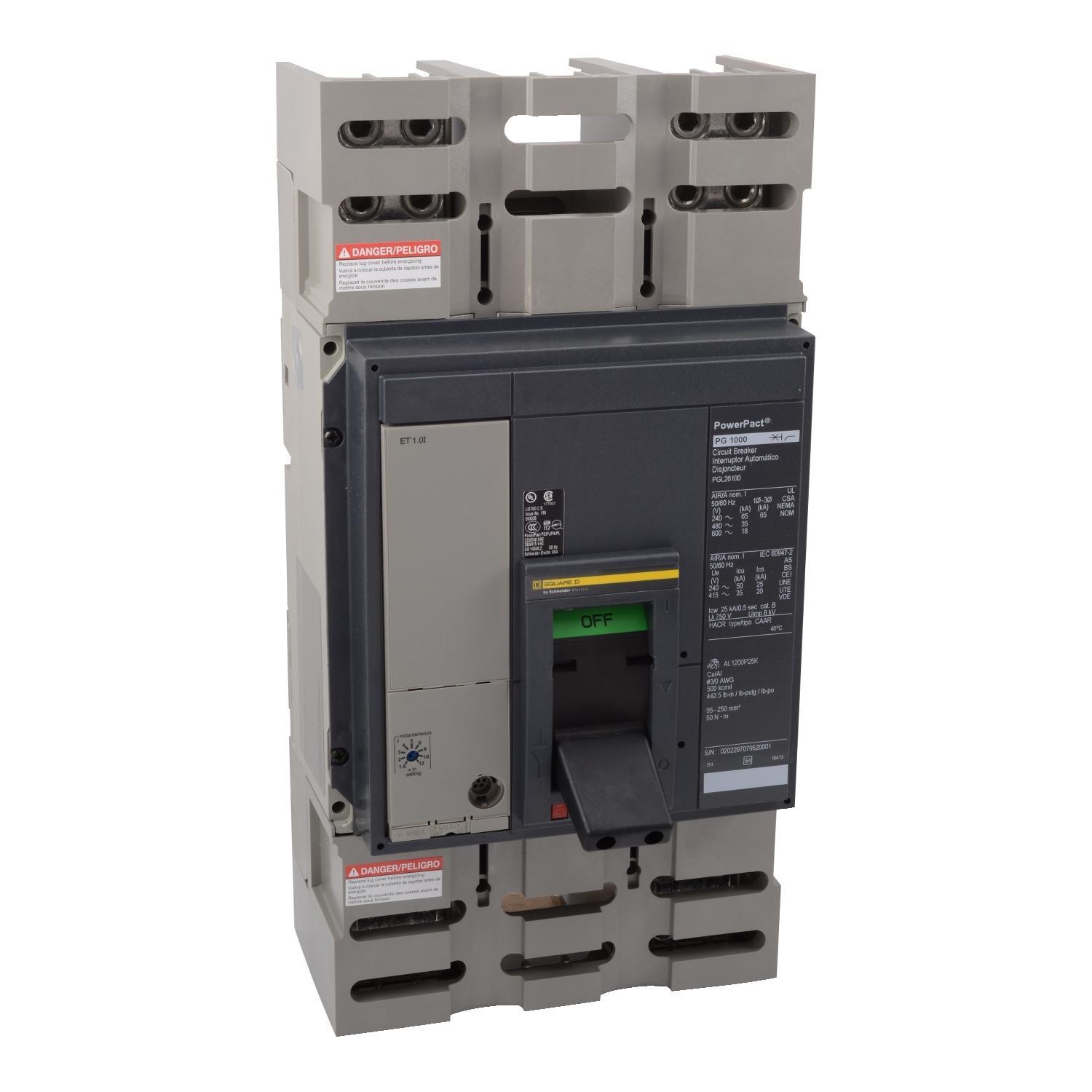

Square D PJL36100U31A Powerpact P Molded Case Circuit Breaker
Part Number # PJL36100U31A
SKU # 2201625
$17256.85 / Each
Square D PJL36100U31A Key Features
Brand: Square D
Part Number # PJL36100U31A
SKU #2201625
Actuator Type: Electronic
Amperage Rating: 1000, 1000 A
Dimensions: 8.1 in L x 8.3 in W x 16.2 in H
Enclosure Type: NEMA AB1
Frame: P
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 25/65/100, 25/65/100 kA
Number of Poles: 3
Phase: 3
Temperature Rating (Degrees F): 40, 40 deg C
Trip Range: 100 to 1200, 100 to 1200 A
Trip Type: Electronic Standard Micrologic 3.0 LI, Electronic Standard Micrologic™ 3.0 LI
Type: Type PJL
Voltage Rating: 600, 600 VAC
Wire Size: 3/0 AWG to 500 kcmil Al, 4 AWG Cu
Connection type: Line/Load Lug
Country of origin: US
Mounting type: Bolt-On/Unit
Manufacturer Name: Schneider Electric
UNSPSC: 39121616
UPC: 00785901869474
$17256.85 / Each
- Square D PowerPact P Molded Case Circuit Breaker, Type PJL, 600 VAC, 1000 A, 50/60 Hz Frequency, 25/65/100 kA Interrupt, P Frame, Electronic Standard Micrologic 3.0 LI Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Electronic Actuator, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al, 4 AWG Cu Wire, NEMA AB1 Enclosure, Bolt-On/Unit Mounting, 40 deg C, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
PJL36100U31A Application
For providing overload and short circuit protectionPJL36100U31A Item Features
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact and P-frame circuit breakers
- Common accessories across the range of PowerPact molded case circuit breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating
PJL36100U31A Standards
UL 489|CSA Certified|NMX Certified|IEC Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS CompliantSKU #2201625Part Number #PJL36100U31AUNSPSC39121616UPC00785901869474
