Part Number # QBA32125
SKU # 2232962
Image Disclaimers Message
QBA32125

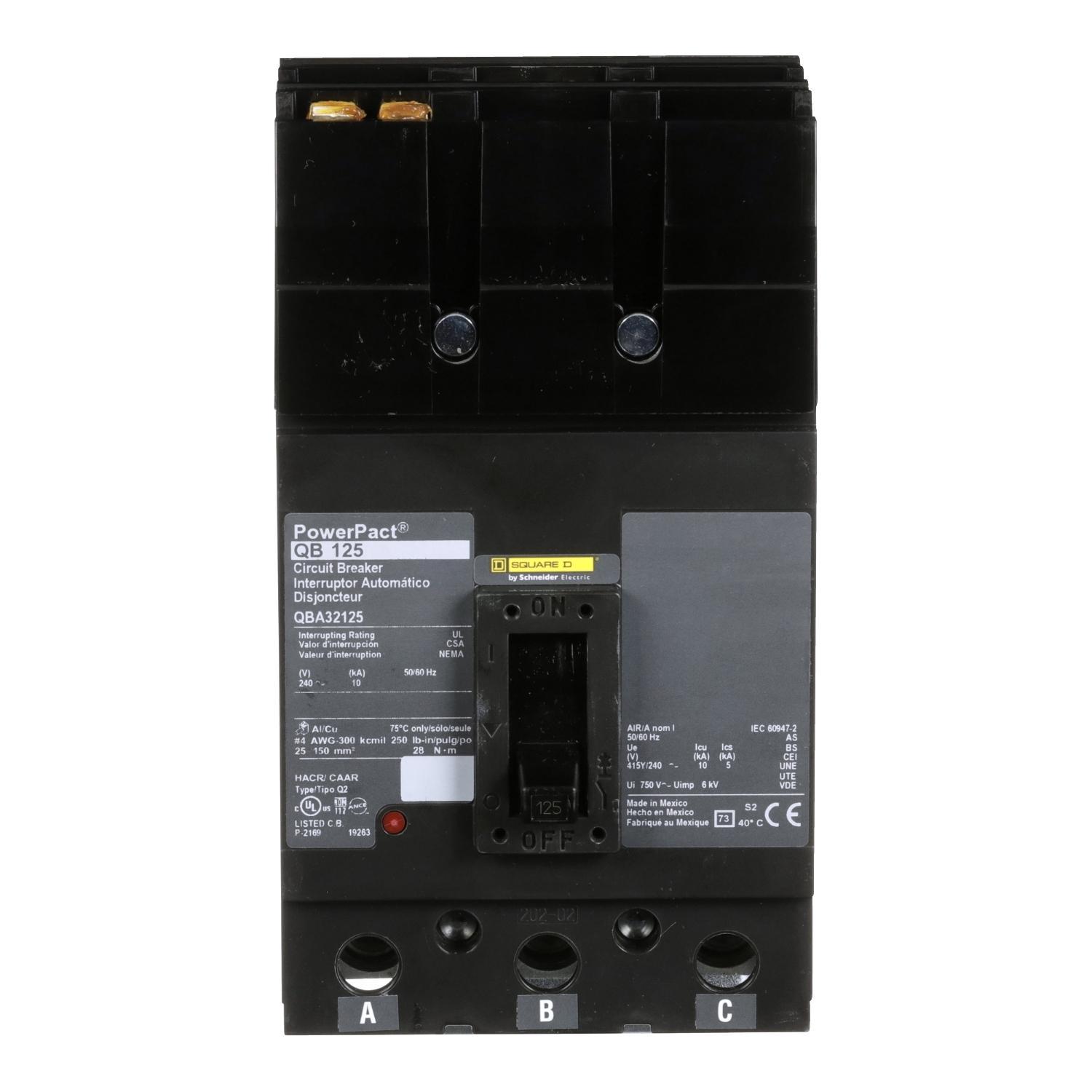

Square D QBA32125 I-Line Powerpact Q Molded Case Circuit Breaker
Part Number # QBA32125
SKU # 2232962
$1219.25 / Each
Typical price:$1913.00 / Each
Square D QBA32125 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QBA32125 |
| SKU #: | 2232962 |
| Amperage Rating: | 125 A |
| Dimensions: | 3.93 in L x 4.5 in W x 6.47 in H |
| Frame: | Q |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 1200 to 2400, 1200 to 2400 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 4 AWG to 300 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901405184 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1219.25 / Each
Typical price:$1913.00 / Each
Quantity:
- Square D I-Line PowerPact Q Molded Case Circuit Breaker, 240 V AC, 125 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Wire, Plug-On Mounting, -13 to 158 deg F, 3.93 in L x 4.5 in W x 6.47 in H Dimensions
QBA32125 Application
Switching On AC System, Overload and Short Circuit Protection ApplicationsQBA32125 Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QBA32125 Standards
RoHS Compliant|UL 489 File No. E84905|CSA C22.2 File No. 5-02 File No. E84905|IEC Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2232962Part Number #QBA32125UNSPSC39121616UPC00785901405184
