Brand: Square D
QBL32110

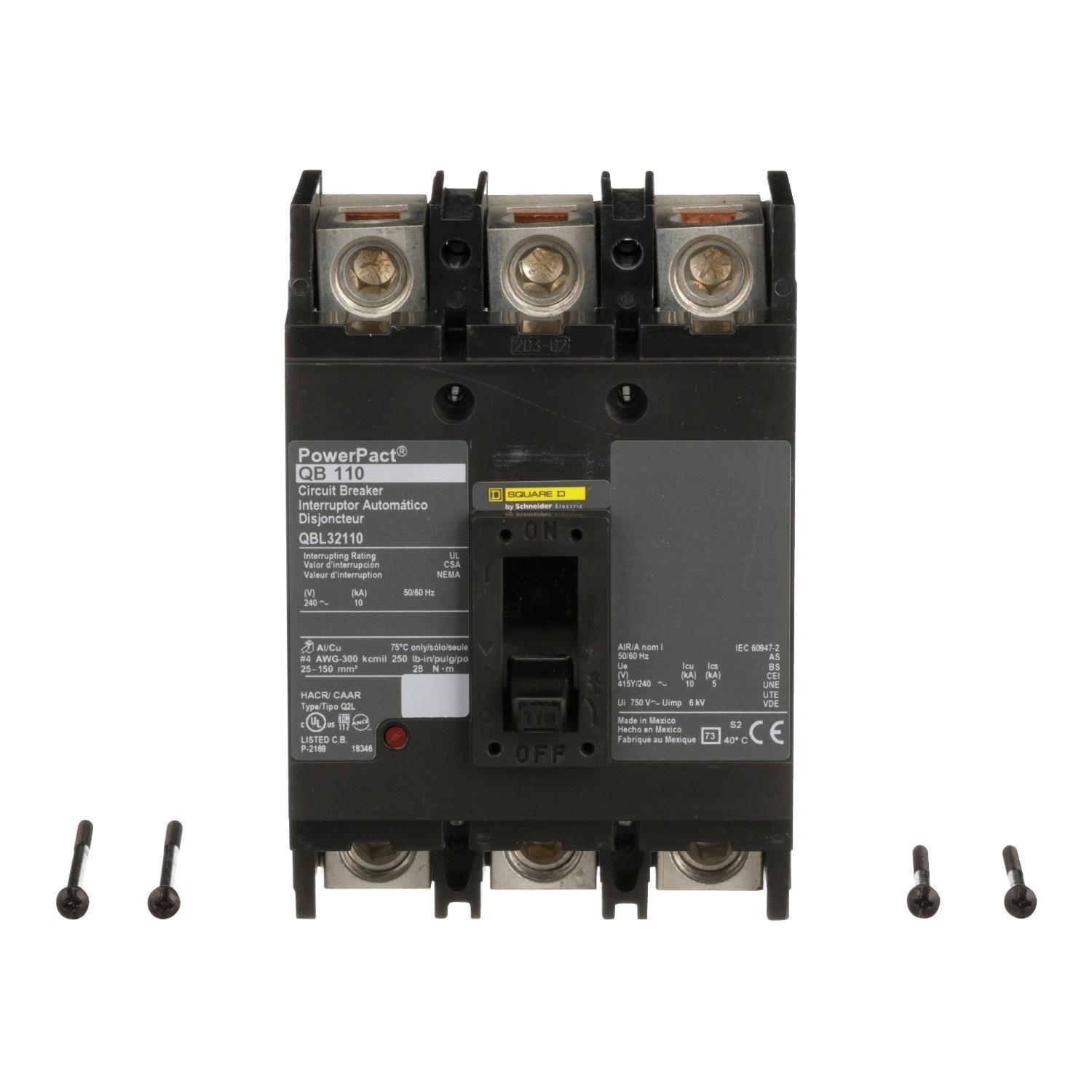

Square D QBL32110 Powerpact Molded Case Circuit Breaker
Part Number # QBL32110
SKU # 2207011
$1023.70 / Each
Typical price:$1248.00 / Each
Square D QBL32110 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QBL32110 |
| SKU #: | 2207011 |
| Amperage Rating: | 110, 110 A |
| Dimensions: | 4.5 in W x 3.93 in D x 6.47 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | Q |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 1200 to 2400, 1200 to 2400 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901702825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1023.70 / Each
Typical price:$1248.00 / Each
Quantity:
- Square D PowerPact Molded Case Circuit Breaker, 240 V AC, 110 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions
QBL32110 Application
Overcurrent Protection and Switching On AC System ApplicationsQBL32110 Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QBL32110 Standards
UL 489 File #E84905|CSA C22.2 File #5-02/E84905|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS CompliantSKU #2207011Part Number #QBL32110UNSPSC39121616UPC00785901702825
