Part Number # QBL32125
SKU # 973507

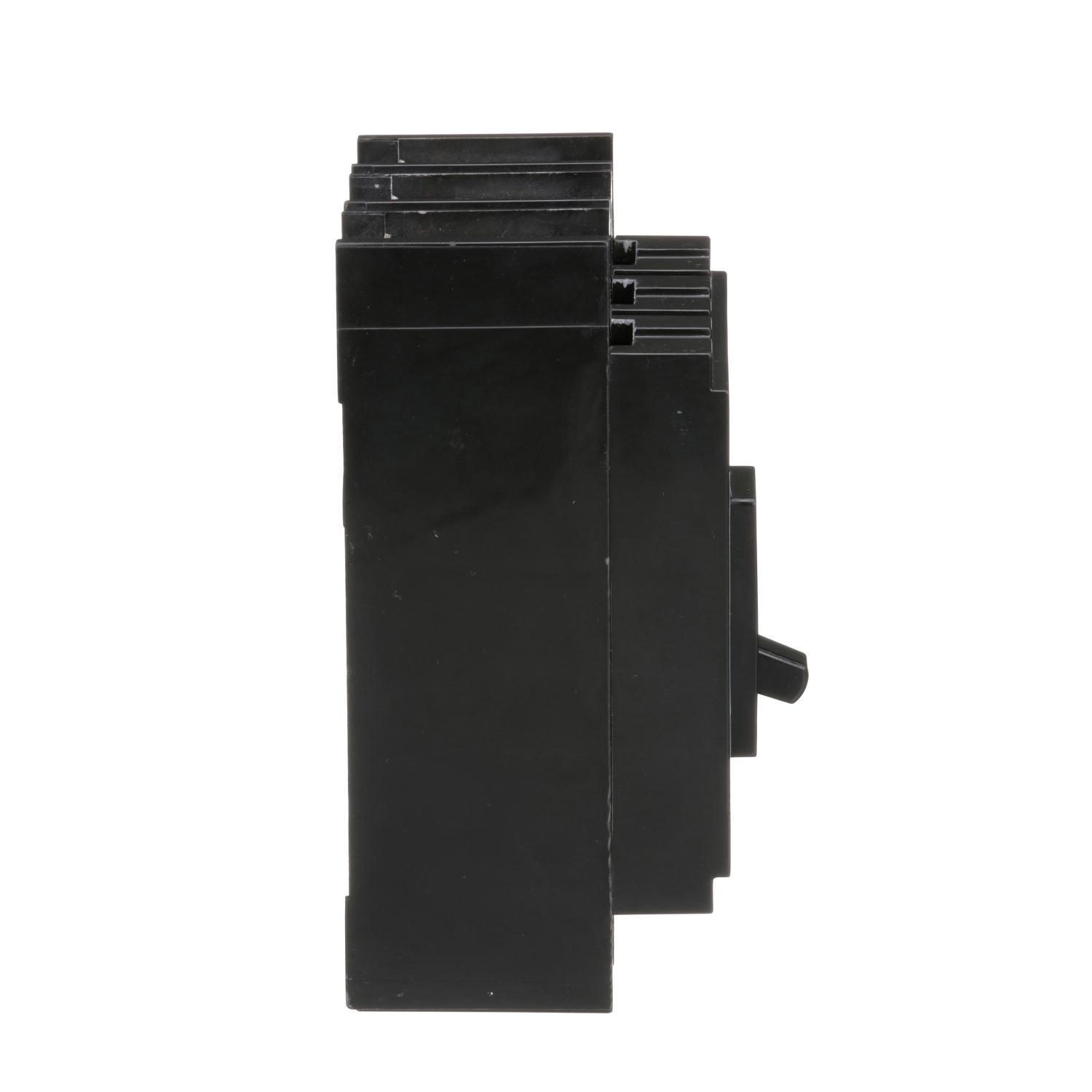

Image provided may only be a representation of
final product and may include optional equipment
QBL32125
Square D QBL32125 Powerpact Q Molded Case Circuit Breaker
Part Number # QBL32125
SKU # 973507
Square D QBL32125 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QBL32125 |
| SKU #: | 973507 |
| Amperage Rating: | 125 A |
| Dimensions: | 4.5 in W x 3.93 in D x 6.47 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | Q |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 1200 to 2400, 1200 to 2400 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901417811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D QBL32125 Powerpact Q Molded Case Circuit Breaker
Brand: Square D
Part Number: QBL32125
Square D PowerPact Q Molded Case Circuit Breaker, 240 VAC, 125 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions
Additional Description: SQD -QBL32125 MOLDED CASE CIRCUIT BREAKER 240V 125A
Catalog Description: Circuit breaker, PowerPacT Q, 125A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
QBL32125 Application
Overcurrent Protection and Switching On AC System ApplicationsQBL32125 Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QBL32125 Standards
UL 489 File No. E84905|CSA C22.2 File No. 5-02/E84905|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #973507Part Number #QBL32125UNSPSC39121616UPC00785901417811
