Part Number # QBL32250
SKU # 2143276
Image Disclaimers Message
QBL32250

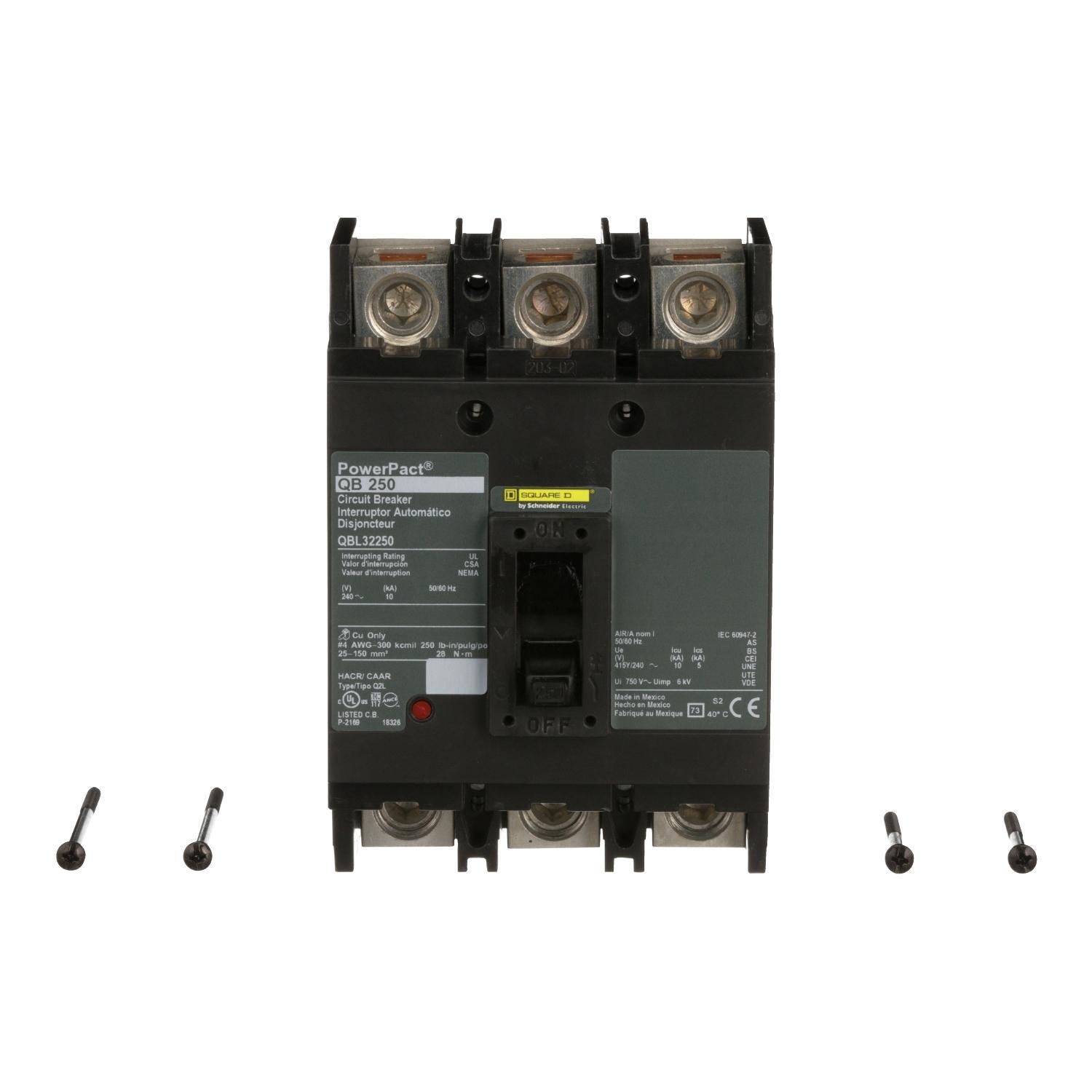

Square D QBL32250 Powerpact Q Molded Case Circuit Breaker
Part Number # QBL32250
SKU # 2143276
$1486.32 / Each
Typical price:$1812.00 / Each
Square D QBL32250 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QBL32250 |
| SKU #: | 2143276 |
| Amperage Rating: | 250, 250 A |
| Dimensions: | 3.93 in L x 4.5 in W x 6.47 in H |
| Frame: | Q |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 1200 to 2400, 1200 to 2400 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 4 AWG to 300 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901907237 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1486.32 / Each
Typical price:$1812.00 / Each
Quantity:
- Square D PowerPact Q Molded Case Circuit Breaker, 240 V AC, 250 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Wire, Unit Mounting, -13 to 158 deg F, 3.93 in L x 4.5 in W x 6.47 in H Dimensions
QBL32250 Application
Switching On AC System, Overload and Short Circuit Protection ApplicationsQBL32250 Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QBL32250 Standards
UL 489 File No. E84905|CSA C22.2 File No. 5-02 File No. E84905|IEC Certified|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2143276Part Number #QBL32250UNSPSC39121616UPC00785901907237
