QDA220704

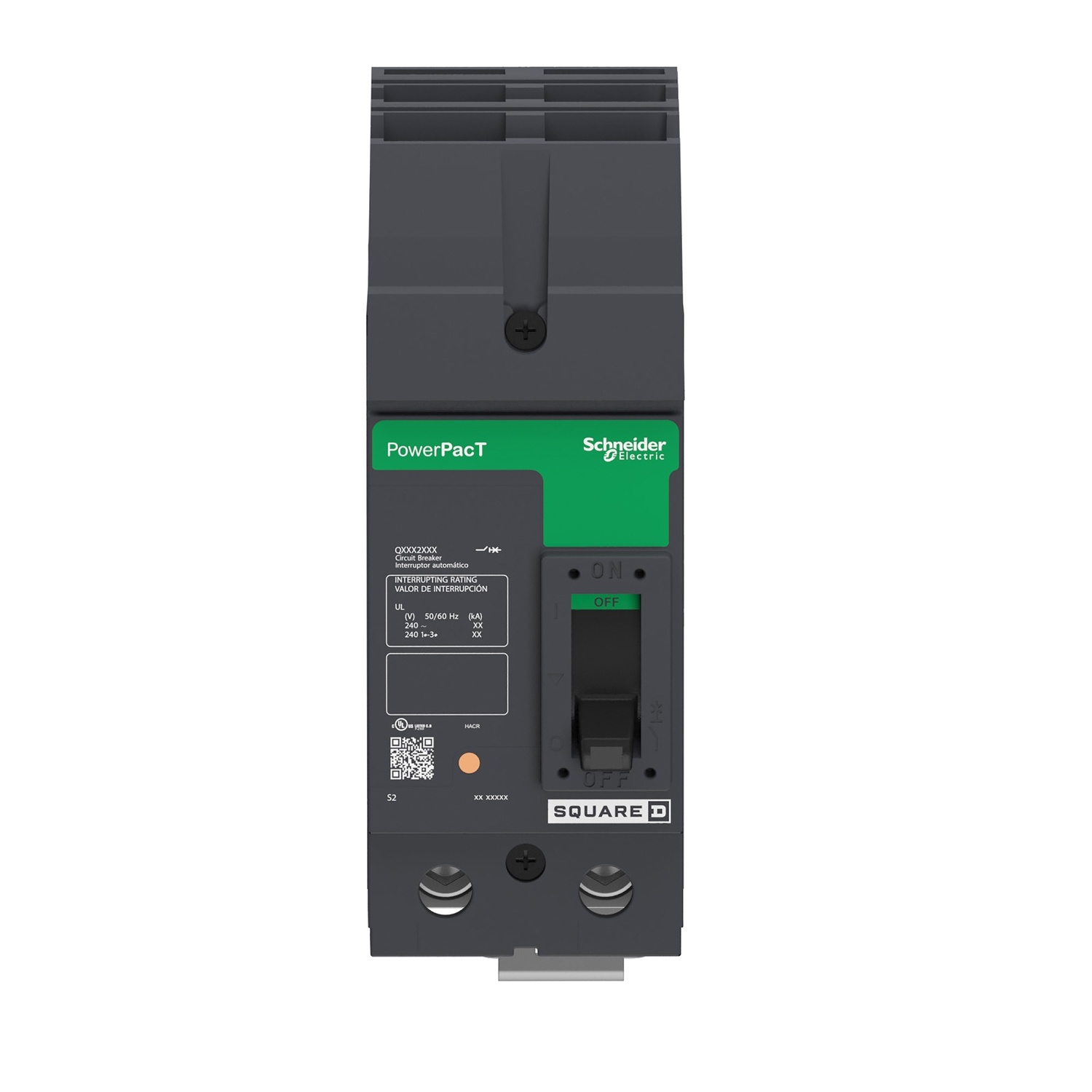

Square D QDA220704 I-Line Powerpact Molded Case Circuit Breaker
Part Number # QDA220704
SKU # 2355542
$1072.05 / Each
Typical price:$1803.00 / Each
Square D QDA220704 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QDA220704 |
| SKU #: | 2355542 |
| Actuator Type: | Toggle |
| Amperage Rating: | 70, 70 A |
| Dimensions: | 6.47 in H x 3 in W x 3.93 in D |
| Enclosure Type: | NEMA AB1-1999 |
| Frame: | Q, Q Series |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Range: | 1000 to 1800, 1000 to 1800 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QD |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | I/ON End Shroud |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901832300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1072.05 / Each
Typical price:$1803.00 / Each
Quantity:
- Square D I-Line PowerPact Molded Case Circuit Breaker, Type QD, 240 VAC, 70 A, 50/60 Hz Frequency, 25 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1000 to 1800 A Trip, 2 Pole, 1 ph, Toggle Actuator, I/ON End Shroud Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1-1999 Enclosure, 104 deg F, 6.47 in H x 3 in W x 3.93 in D Dimensions
QDA220704 Specifications
- I-Line™ connection on line BC connection
QDA220704 Application
For overcurrent protection and switching on AC systemsQDA220704 Item Features
- I-Line connection on line BC connection
QDA220704 Standards
RoHS Compliant|UL 489 File No. E84905|CSA C22.2 No. 5-02 File No. E84905|NMX-J-266-ANCE-2002|IEC Certified|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2355542Part Number #QDA220704UNSPSC39121616UPC00785901832300
