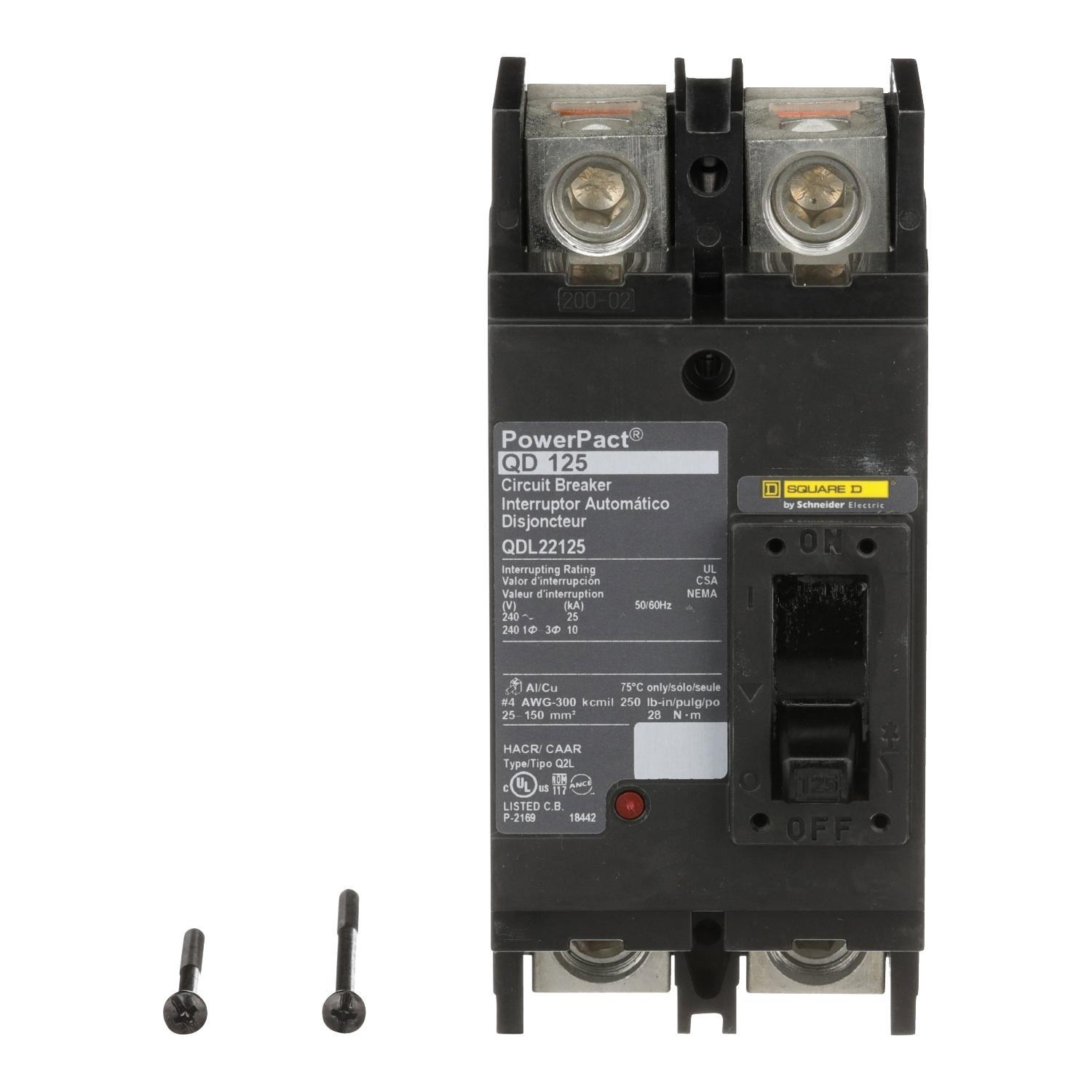

Square D QDL22125 Powerpact Molded Case Circuit Breaker
Part Number # QDL22125
SKU # 2393206
$1161.14 / Each
Square D QDL22125 Key Features
Brand: Square D
Part Number # QDL22125
SKU #2393206
Amperage Rating: 125 A
Dimensions: 3 in W x 3.93 in D x 6.47 in H
Enclosure Type: NEMA AB1
Frame: Q
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 25, 25 kA
Number of Poles: 2
Phase: 1
Temperature Rating (Degrees F): -13 to 158, -13 to 158 deg F
Trip Range: 1200 to 2400, 1200 to 2400 A
Trip Type: Thermal/Magnetic
Voltage Rating: 240, 240 VAC
Wire Size: 4 AWG to 300 kcmil Al/Cu
Connection type: Line/Load Lug
Country of origin: US
Manufacturer Name: Schneider Electric
UNSPSC: 39121601
UPC: 00785901522829
$1161.14 / Each
- Square D PowerPact Molded Case Circuit Breaker, 240 VAC, 125 A, 50/60 Hz Frequency, 25 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 2 Pole, 1 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 3 in W x 3.93 in D x 6.47 in H Dimensions
QDL22125 Application
Overcurrent Protection and Switching On AC System ApplicationsQDL22125 Item Features
- Available in standard (80 Percent) rating only
- Field-installable handle padlock attachment available for locking in On or Off position and may be used with available mechanical interlocks
- QDL22125 is a PowerPact Q - molded case circuit breaker - 2-pole - 25 kA - 240 V - 125 A. With a breaking capacity of 25kA at 240 VACit has a continuous current rating of 50 Percent along with a thermal-magnetic trip unit rated at 1200A magnetic hold current
QDL22125 Standards
UL 489 File #E84905|CSA C22.2 File #5-02/E84905|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS CompliantSKU #2393206Part Number #QDL22125UNSPSC39121601UPC00785901522829
