QDL32080

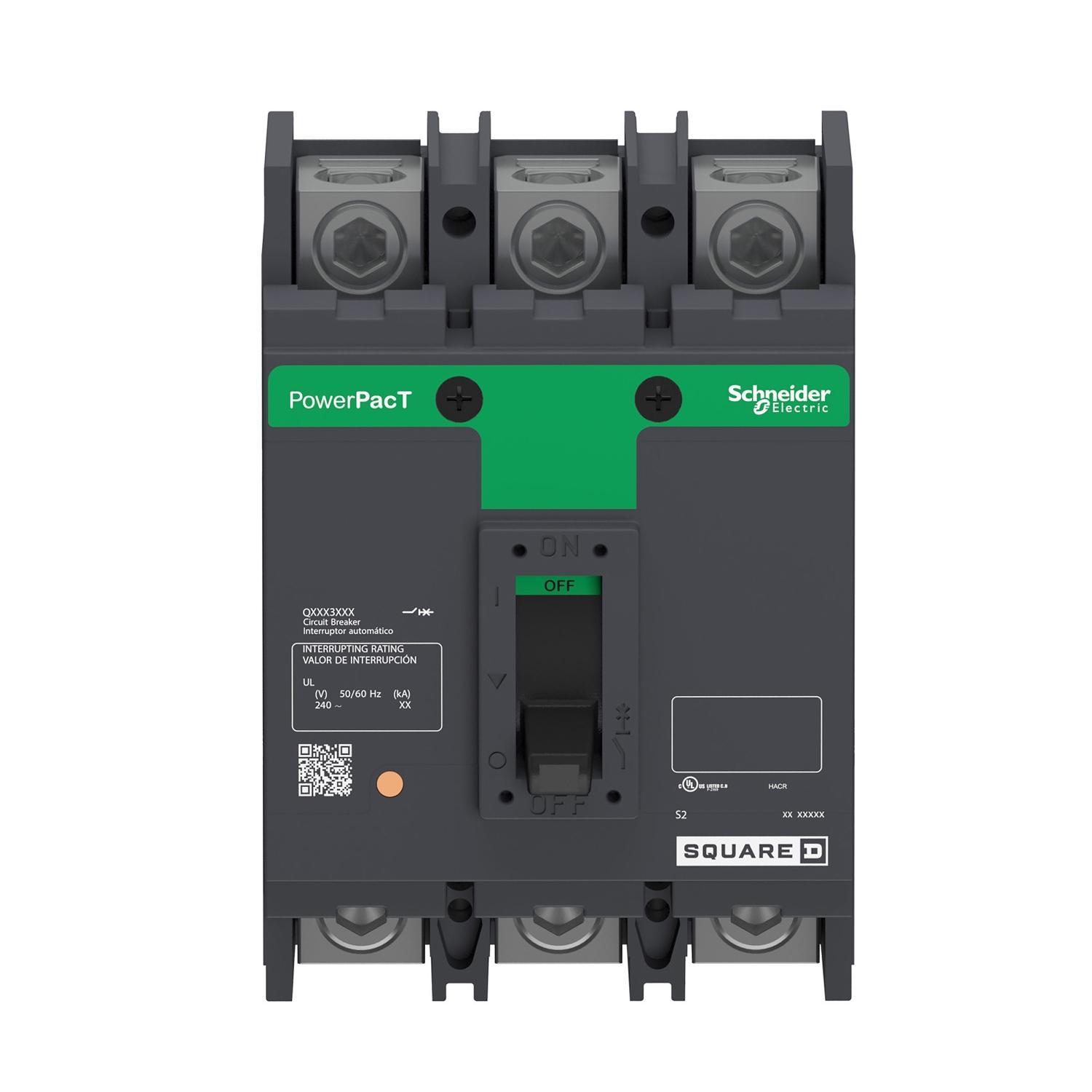

Square D QDL32080 Powerpact Q Molded Case Circuit Breaker
Part Number # QDL32080
SKU # 2196827
$1812.32 / Each
Square D QDL32080 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QDL32080 |
| SKU #: | 2196827 |
| Actuator Type: | Toggle |
| Amperage Rating: | 80, 80 A |
| Dimensions: | 3.93 in L x 4.5 in W x 6.47 in H |
| Frame: | D, Q |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Range: | 1000 to 1800, 1000 to 1800 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QD |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901522867 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1812.32 / Each
Quantity:
- Square D PowerPact Q Molded Case Circuit Breaker, Type QD, 240 V AC, 80 A, 50/60 Hz Frequency, 25 kA Interrupt, Q Frame, Thermal Magnetic Trip, 1000 to 1800 A Trip, 3 Pole, 3 ph, Toggle Actuator, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, Unit Mounting, 104 deg F, 3.93 in L x 4.5 in W x 6.47 in H Dimensions
QDL32080 Application
For providing overload and short circuit protectionQDL32080 Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QDL32080 Standards
RoHS Compliant|UL 489 File No. E84905|CSA C22.2 No. 5-02|NMX-J-266-ANCE-2002|IEC Certified|NEMA AB1-1999|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2196827Part Number #QDL32080UNSPSC39121616UPC00785901522867
