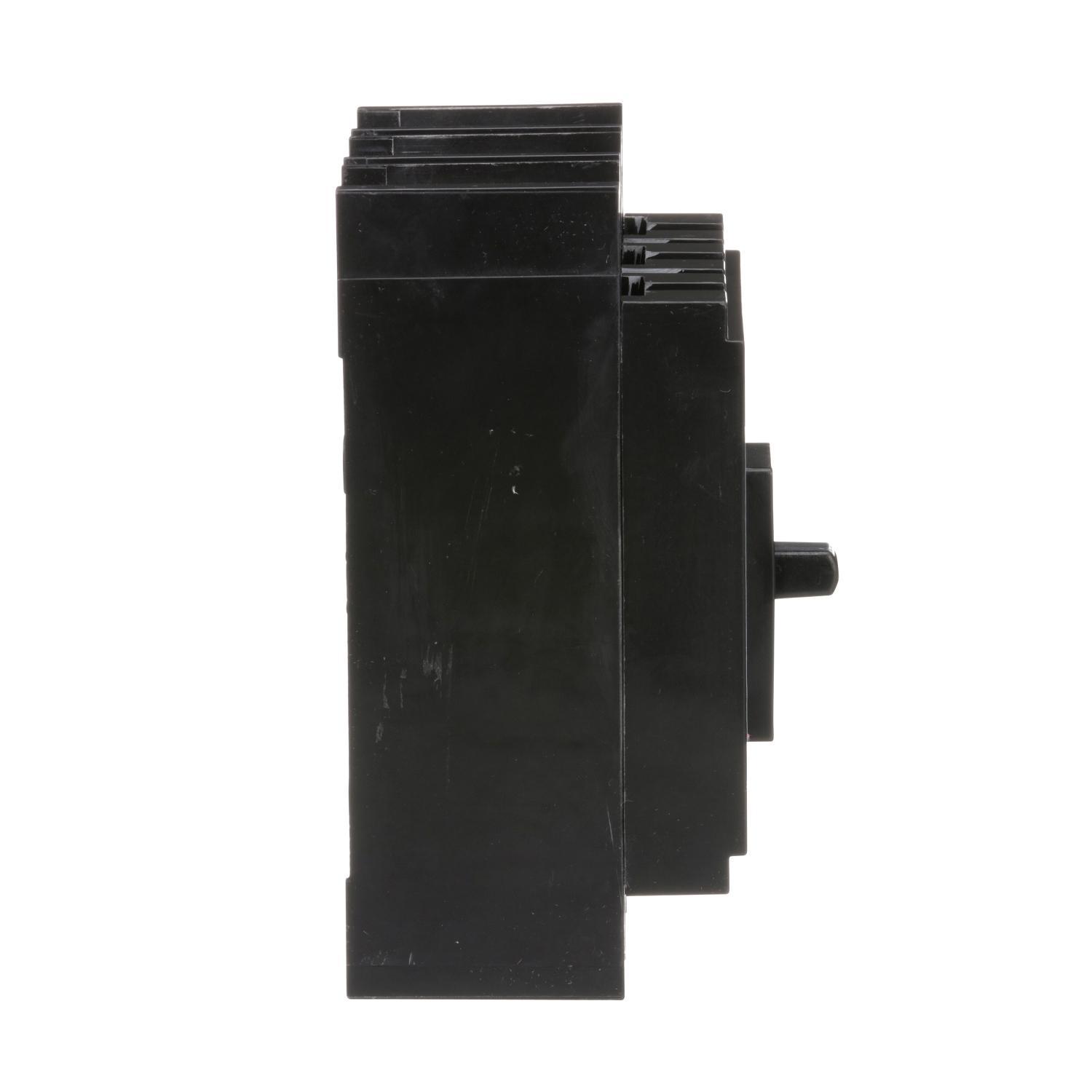

Square D QDL32100 Powerpact Q Molded Case Circuit Breaker
Part Number # QDL32100
SKU # 2225357
$1463.36 / Each
Typical price:$1784.00 / Each
Square D QDL32100 Key Features
Brand: Square D
Part Number # QDL32100
SKU #2225357
Amperage Rating: 100, 100 A
Dimensions: 4.5 in W x 3.93 in D x 6.47 in H
Enclosure Type: NEMA AB1
Frame: Q
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 25, 25 kA
Number of Poles: 3
Phase: 3
Temperature Rating (Degrees F): -13 to 158, -13 to 158 deg F
Trip Range: 1200 to 2400, 1200 to 2400 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 240, 240 VAC
Wire Size: 4 AWG to 300 kcmil Al/Cu
Connection type: Line/Load Lug
Country of origin: US
Manufacturer Name: Schneider Electric
UNSPSC: 39121616
UPC: 00785901662402
$1463.36 / Each
Typical price:$1784.00 / Each
- Square D PowerPact Q Molded Case Circuit Breaker, 240 VAC, 100 A, 50/60 Hz Frequency, 25 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions
QDL32100 Application
Overcurrent Protection and Switching On AC System ApplicationsQDL32100 Item Features
- With a breaking capacity of 25kA at 240 VACit has a continuous current rating of 50 Percent along with a thermal-magnetic trip unit rated at 1200A magnetic hold current
QDL32100 Standards
UL 489 File No. E84905|CSA C22.2 File No. 5-02/E84905|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2225357Part Number #QDL32100UNSPSC39121616UPC00785901662402
