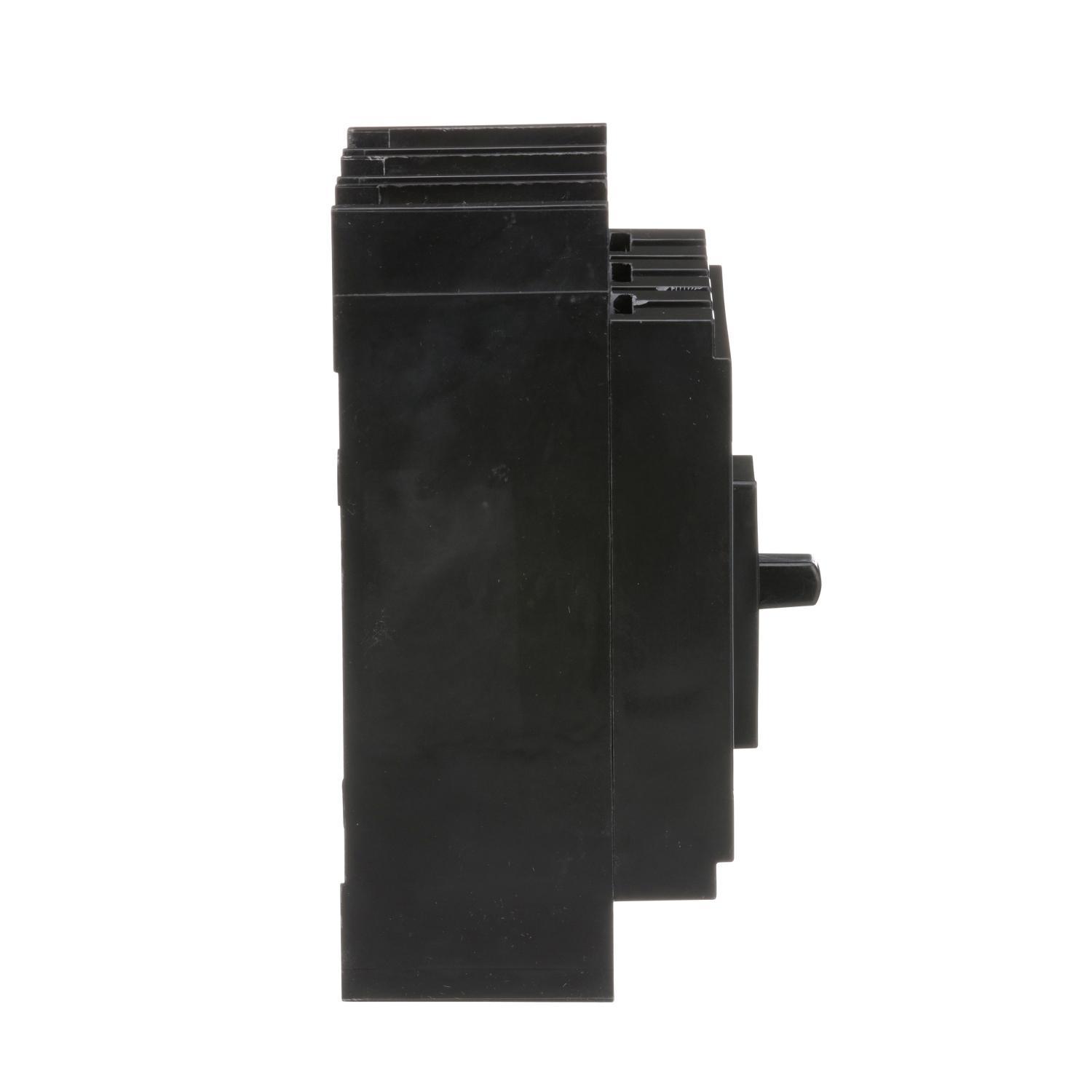

Square D QDL32200 Powerpact Q Molded Case Circuit Breaker
Square D QDL32200 Powerpact Q Molded Case Circuit Breaker
Part #:QDL32200
SKU #: 2143965
Key Features
Part #:QDL32200
SKU #: 2143965
Brand: Square D
Amperage Rating: 200, 200 A
Dimensions: 4.5 in W x 3.93 in D x 6.47 in H
Enclosure Type: NEMA AB1
Frame: Q
Frequency Rating: 50/60, 50/60 Hz
- Available in standard (80 Percent) rating only
- Field-installable handle padlock attachment available for locking in On or Off position and may be used with available mechanical interlocks
- QDL32200 is a PowerPact Q - molded case circuit breaker - 3-pole - 25 kA - 240 V - 200 A. With a breaking capacity of 25kA at 240 VACit has a continuous current rating of 50 Percent along with a thermal-magnetic trip unit rated at 1200A magnetic hold current
Square D QDL32200 Powerpact Q Molded Case Circuit Breaker
Square D PowerPact Q Molded Case Circuit Breaker, 240 VAC, 200 A, 50/60 Hz Frequency, 25 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, -13 to 158 deg F, 4.5 in W x 3.93 in D x 6.47 in H Dimensions
Additional Description: SQD -QDL32200 MOLDED CASE CIRCUIT BREAKER 240V 200A
Catalog Description: Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%
