QOM2175VH

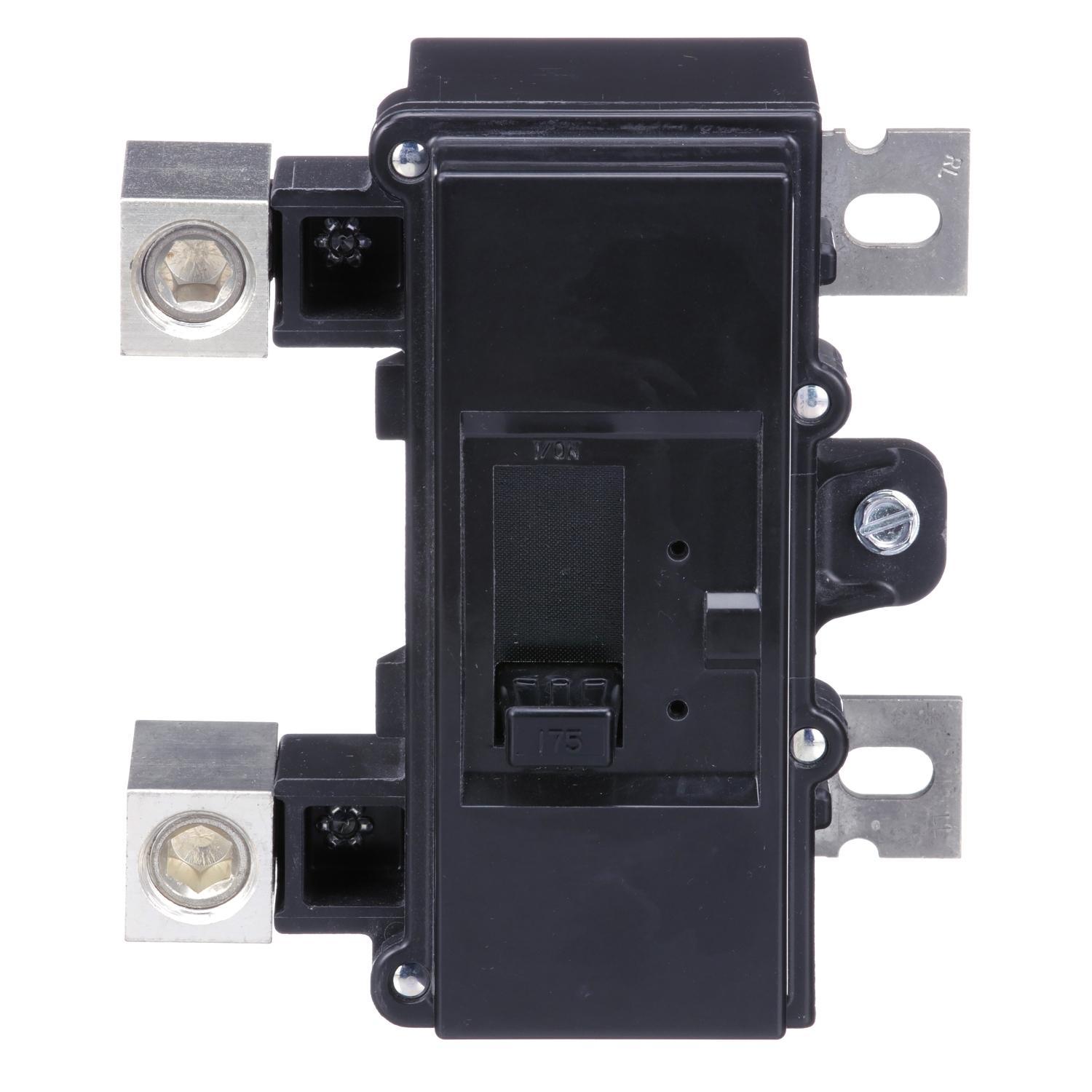

Square D QOM2175VH Qo Miniature Circuit Breaker
Part Number # QOM2175VH
SKU # 2210646
$171.32 / Each
Typical price:$468.00 / Each
Square D QOM2175VH Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOM2175VH |
| SKU #: | 2210646 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 5.07 in L x 3.6 in W x 5.6 in H, 5.07 in W x 3.61 in D x 5.6 in H |
| Frequency Rating: | 60, 60 Hz |
| Interrupt Rating: | 22, 22 kA |
| Number of Poles: | 2 |
| Phase: | 1, 1 ph |
| Temperature Rating (Degrees F): | 104, 40, 40 deg C |
| Trip Range: | 175, 175 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QOM |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | Box Lug, Lug |
| Country of origin: | US |
| Mounting type: | Bolt-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901848585 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$171.32 / Each
Typical price:$468.00 / Each
Quantity:
Square D QOM2175VH Qo Miniature Circuit Breaker
Brand: Square D
Part Number: QOM2175VH
Square D QO Miniature Circuit Breaker, Type QOM, 240 VAC, 175 A, 60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 175 A Trip, 2 Pole, 1 ph, Box Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, Bolt-On Mounting, 40 deg C, 5.07 in L x 3.6 in W x 5.6 in H Dimensions
Additional Description: SQD -QOM2175VH MINIATURE CIRCUIT BREAKER 120/240V 175A
Catalog Description: Main breaker, QO, 175A, 2 pole, 120/240VAC, 22kA, bolt on
QOM2175VH Application
Load Center ApplicationsQOM2175VH Item Features
- Provides superior circuit protection
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QOM2175VH Standards
CSA C22.2 File No. 5|CSA Certified|Federal Specification W-C-375B/GEN|NEMA AB1|NOM/ANCE Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 489 File No. E84967|UL ListedSKU #2210646Part Number #QOM2175VHUNSPSC39121616UPC00785901848585
