RGA36120CU31A

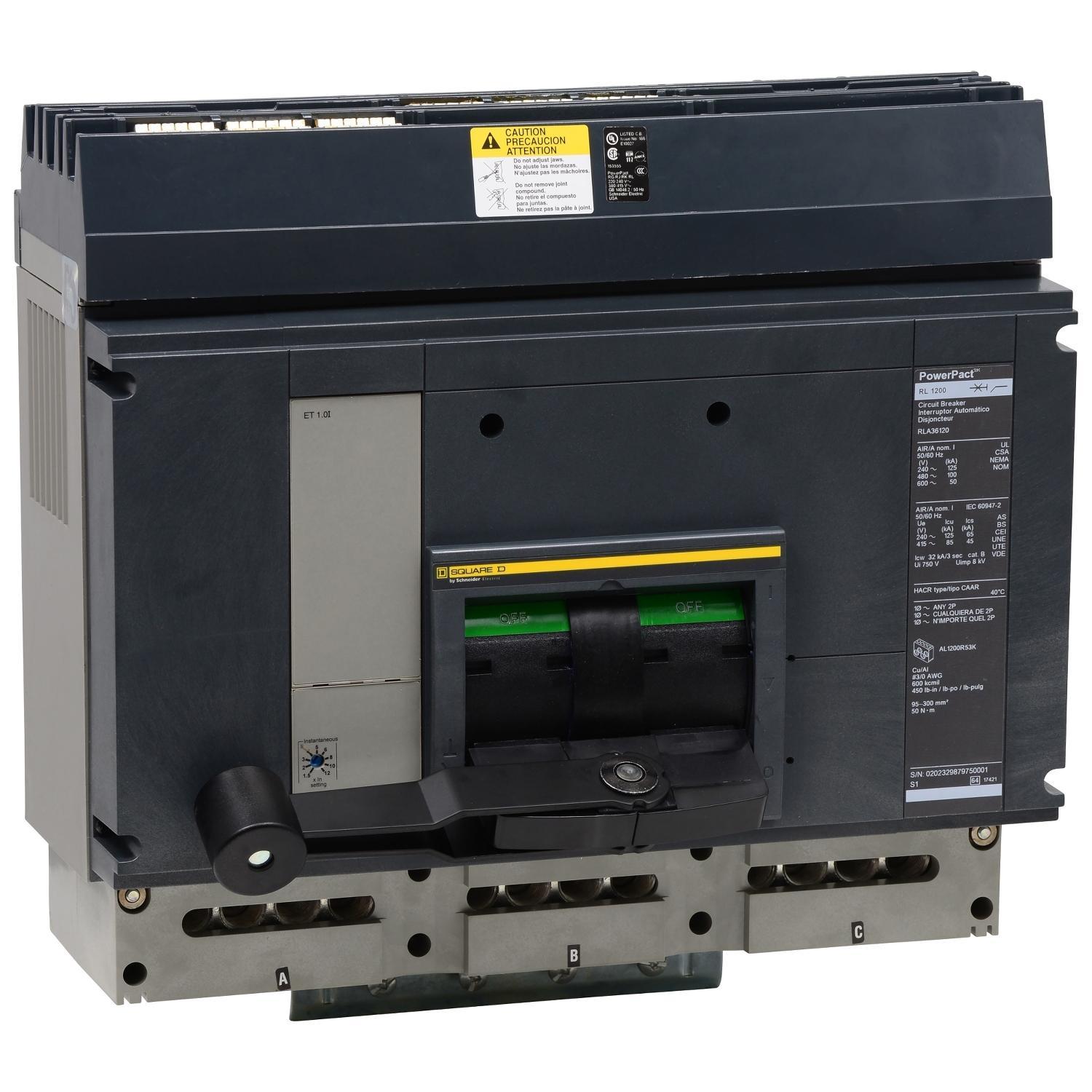

Square D RGA36120CU31A I-Line Powerpact Molded Case Circuit Breaker
Part Number # RGA36120CU31A
SKU # 2380107
$27844.08 / Each
Typical price:$33945.00 / Each
Square D RGA36120CU31A Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | RGA36120CU31A |
| SKU #: | 2380107 |
| Amperage Rating: | 1200 A |
| Dimensions: | 13.38 in H x 14.96 in W x 13.78 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | R |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 240 to 3000 A |
| Trip Type: | Electronic, Electronic Standard Micrologic 3.0 LI, Electronic Standard Micrologic™ 3.0 LI |
| Type: | 100% Rated |
| Wire Size: | 3/0 AWG to 600 kcmil Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901566519 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$27844.08 / Each
Typical price:$33945.00 / Each
Quantity:
- Square D I-Line PowerPact Molded Case Circuit Breaker, 100% Rated, 600 V AC, 1200 A, 50/60 Hz Frequency, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt, R Frame, Electronic Trip, 240 to 3000 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 600 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Plug-On Mounting, 104 deg F, 13.38 in H x 14.96 in W x 13.78 in D Dimensions
RGA36120CU31A Application
For providing overload and short circuit protectionRGA36120CU31A Item Features
- Available in 2, 3, 4 pole design
- Common accessories across the range
- Compatible with PowerLogic systems and high amp power circuit breakers
RGA36120CU31A Standards
UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS CompliantSKU #2380107Part Number #RGA36120CU31AUNSPSC39121616UPC00785901566519
