Part Number # RJF36200
SKU # 2224877
Image Disclaimers Message
Brand: Square D
RJF36200

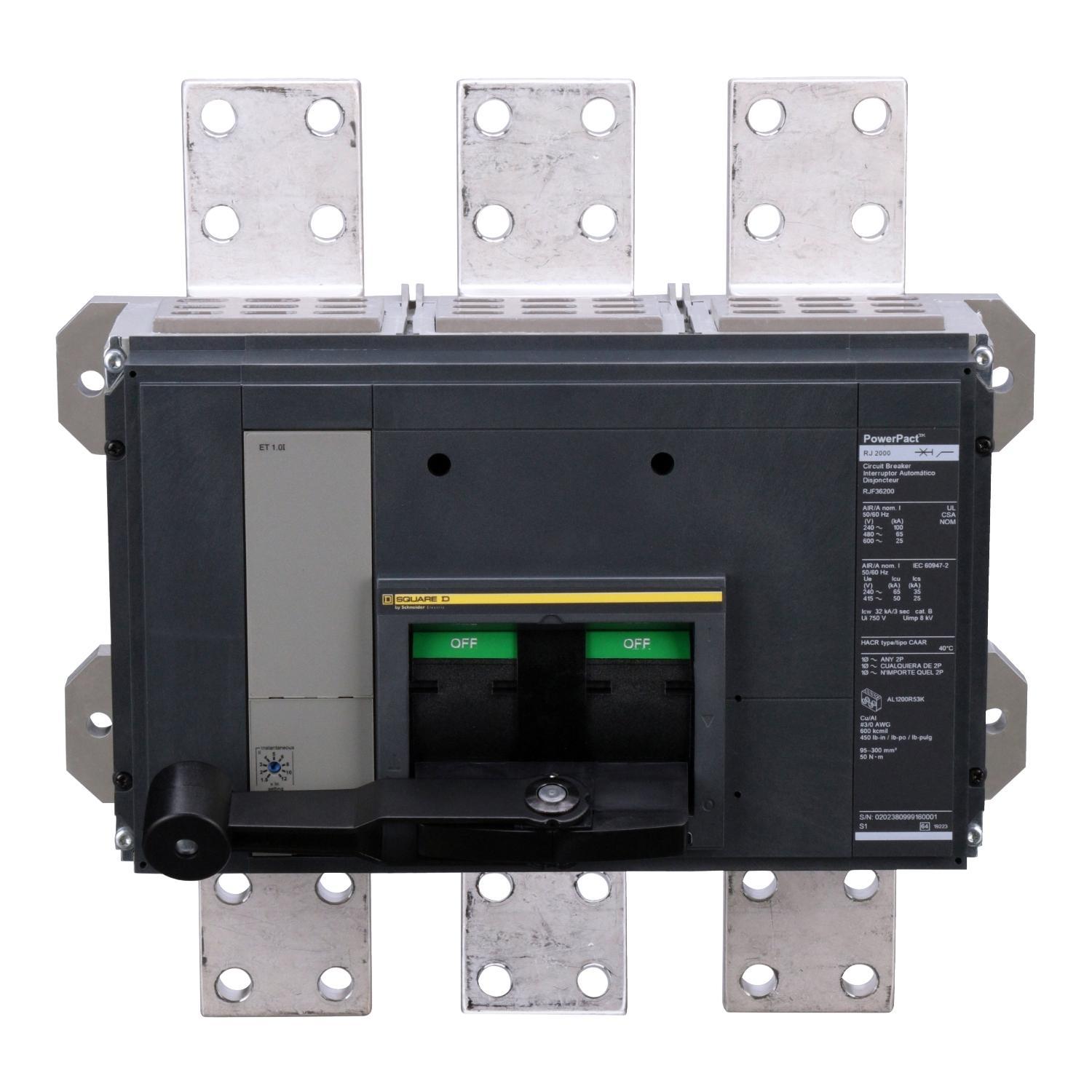

Square D RJF36200 Powerpact R Molded Case Circuit Breaker
Part Number # RJF36200
SKU # 2224877
$19316.54 / Each
Typical price:$23549.00 / Each
Square D RJF36200 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | RJF36200 |
| SKU #: | 2224877 |
| Actuator Type: | Electronic |
| Amperage Rating: | 2000 A |
| Dimensions: | 14.4 in L x 16.5 in W x 15 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | R |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 25/65/100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Range: | 240 to 3000 A |
| Trip Type: | Electronic, Electronic Basic ET1.0I Fixed Long Time/Adjustable Instantaneous |
| Type: | 80% Rated |
| Connection type: | Busbar Line/Load |
| Country of origin: | MX |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901566540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19316.54 / Each
Typical price:$23549.00 / Each
Quantity:
- Square D PowerPact R Molded Case Circuit Breaker, 80% Rated, 600 V AC, 2000 A, 50/60 Hz Frequency, 25/65/100 kA Interrupt, R Frame, Electronic Trip, 240 to 3000 A Trip, 3 Pole, 3 ph, Electronic Actuator, Busbar Line/Load Connection, NEMA AB1 Enclosure, Unit Mounting, 40 deg C, 14.4 in L x 16.5 in W x 15 in H Dimensions
RJF36200 Application
For providing overload and short circuit protectionRJF36200 Item Features
- Available in 2, 3, 4 pole design
- Common accessories across the range
- Compatible with PowerLogic systems and high amp power circuit breakers
RJF36200 Standards
UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS CompliantSKU #2224877Part Number #RJF36200UNSPSC39121616UPC00785901566540
