Part Number # RGF36160CU31A
SKU # 364200

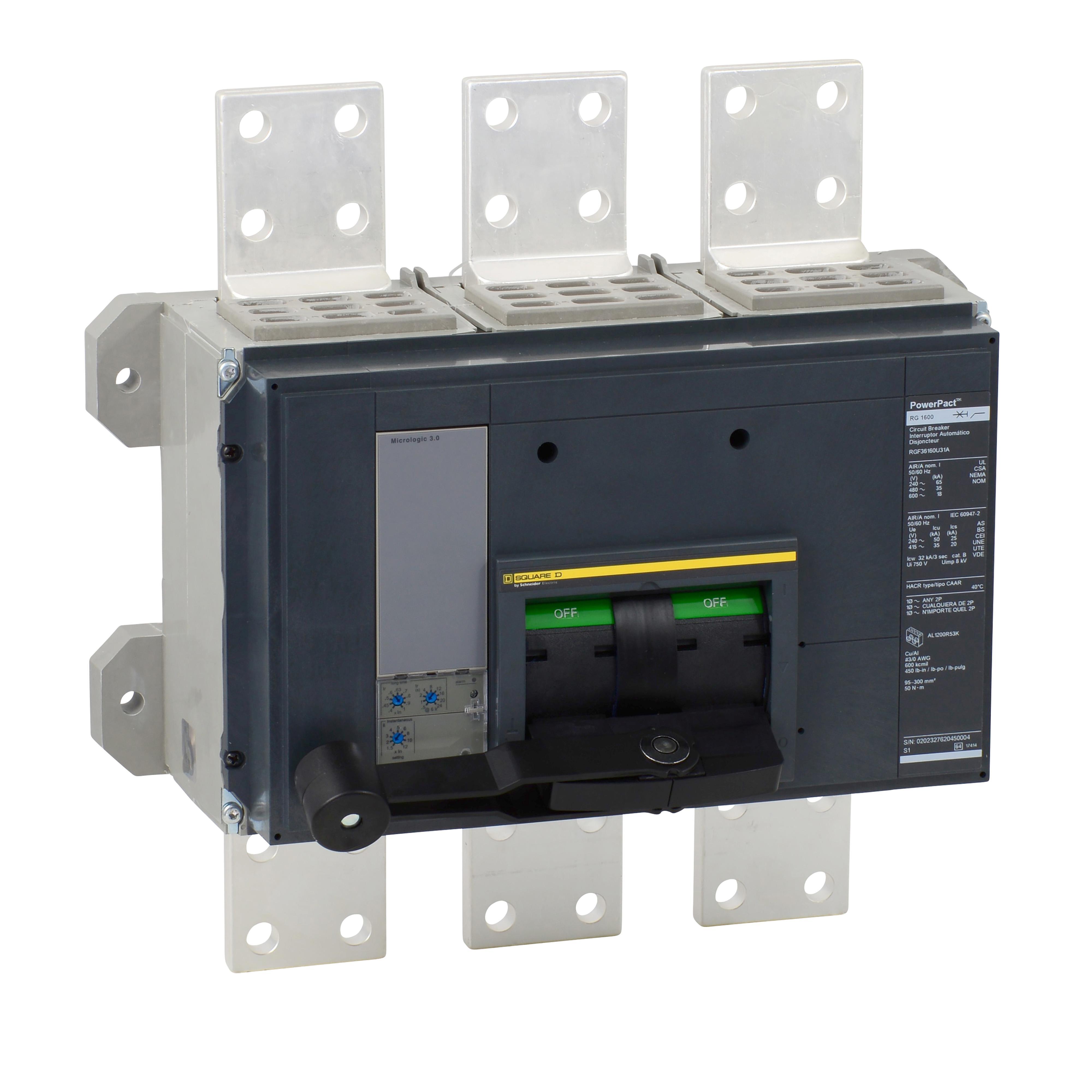

Image provided may only be a representation of
final product and may include optional equipment
RGF36160CU31A
Square D (Schneider Electric) RGF36160CU31A Molded Case Circuit Breakrs
Part Number # RGF36160CU31A
SKU # 364200
Schneider Electric RGF36160CU31A Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RGF36160CU31A |
| SKU #: | 364200 |
| Actuator Type: | Electrical |
| Amperage Rating: | 1600, 1600 A |
| Dimensions: | 14.4 in L x 16.5 in W x 15 in H |
| Frame: | R |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18, 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | RGF |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 240 to 3000, 240 to 3000 A |
| Trip Type: | Electronic, Electronic Standard Micrologic 3.0 LI, Electronic Standard Micrologic™ 3.0 LI |
| Type: | Circuit Breaker |
| Wire Size: | 1/0 to 750 kcmil |
| Connection type: | Line/Load Busbar |
| Country of origin: | US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901536604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D (Schneider Electric) RGF36160CU31A Molded Case Circuit Breakrs
Brand: Schneider Electric
Part Number: RGF36160CU31A
Square D™ PowerPact™ Molded Case Circuit Breaker, Series: RGF, 600 VAC, 1600 A, 50/60 Hz Frequency, 18 kA Interrupt, R Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 240 to 3000 A Trip, 3 Pole, 3 ph, Electrical Actuator, Line/Load Busbar Connection, 40 deg C, 14.4 in L x 16.5 in W x 15 in H Dimensions
Additional Description: SQD -RGF36160CU31A MOLDED CASE CIRCUIT BREAKER 600V 1600A
Catalog Description: Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 100%
RGF36160CU31A Specifications
- 100% short circuit breaking capacity
- 65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
- Unit mount
RGF36160CU31A Application
For providing overload and short circuit protectionRGF36160CU31A Item Features
- Available in 2, 3, 4 pole design
- Common accessories across the range
- Compatible with PowerLogic systems and high amp power circuit breakers
RGF36160CU31A Standards
RoHS Compliant|UL Listed|IEC Certified|CSA Certified|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #364200Part Number #RGF36160CU31AUNSPSC39121616UPC00785901536604
