Part Number # HNS3S120
SKU # 2236908
Siemens HNS3S120 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HNS3S120 |
| SKU #: | 2236908 |
| Amperage Rating: | 1200 A |
| Dimensions: | 20 in L x 12 in W x 10 in H |
| Enclosure Type: | IP20 |
| Frame: | NG/1200A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type 3VL/NG Low Voltage |
| Connection type: | Bolt-On |
| Country of origin: | MX |
| Mounting type: | Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892874716 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Siemens, HNS3S120, Molded Case Circuit Breaker, Type 3VL/NG Low Voltage, 480 V AC, 1200 A, 50/60 Hz Frequency, 65 kA Interrupt, NG/1200A Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Bolt-On Connection, IP20 Enclosure, Fixed Mounting, 40 deg C, 20 in L x 12 in W x 10 in H Dimensions
HNS3S120 Application
For use with molded case switchHNS3S120 Item Features
- The molded case circuit breakers feature a compact design, are distinguished by improved technology and are easy to operate
- 3VL molded case circuit breakers according to UL 489 optimally fulfill the high demands prevalent in modern power distribution
- Without auxiliary release
HNS3S120 Standards
ECCN: EAR99|WEEE|RoHS Compliant|UL 489|UL Listed|C-TICK|RMRS CertifiedSKU #2236908Part Number #HNS3S120UNSPSC39121601UPC00040892874716

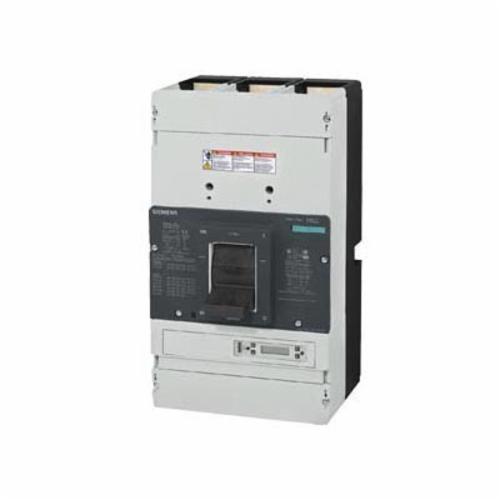

Image provided may only be a representation of final product and may include optional equipment
