Part Number # 3VA6816-6HM31-0AA0
SKU # 2412674
Brand: Siemens
3VA6816-6HM31-0AA0
Siemens 3VA6816-6HM31-0AA0
Part Number # 3VA6816-6HM31-0AA0
SKU # 2412674
Siemens 3VA6816-6HM31-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6816-6HM31-0AA0 |
| SKU #: | 2412674 |
| Amperage Rating: | 1600 A |
| Dimensions: | 16 in H x 9 in W x 6 in D |
| Enclosure Type: | IP40 |
| Frame: | 3VA68 |
| Interrupt Rating: | 35 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V |
| Number of Poles: | 3 |
| Series: | 3VA6 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Type: | Electronic |
| Type: | Low Voltage Molded Case |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00195125333406 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA6816-6HM31-0AA0
Brand: Siemens
Part Number: 3VA6816-6HM31-0AA0
Additional Description: SIEM-3VA6816-6HM31-0AA0 (M) 1600A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES: WITHOUT LUGS. DIMENSIONS (W x H x D) IN: 9 x 16 x 6.
3VA6816-6HM31-0AA0 Item Features
- 3VA68 Frame with Medium (CLASS H) breaking capacity
3VA6816-6HM31-0AA0 Standards
UL Listed|RoHS directive|WEEE (2012/19/EU)|AL : N|ECCN : EAR99SKU #2412674Part Number #3VA6816-6HM31-0AA0UNSPSC39121601UPC00195125333406

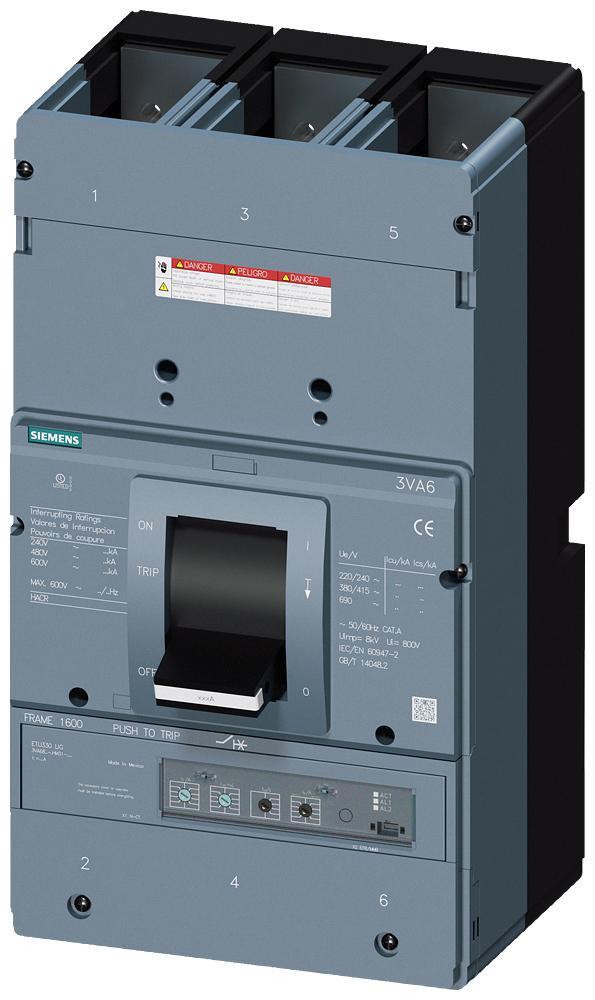

Image provided may only be a representation of final product and may include optional equipment
