Brand: Siemens

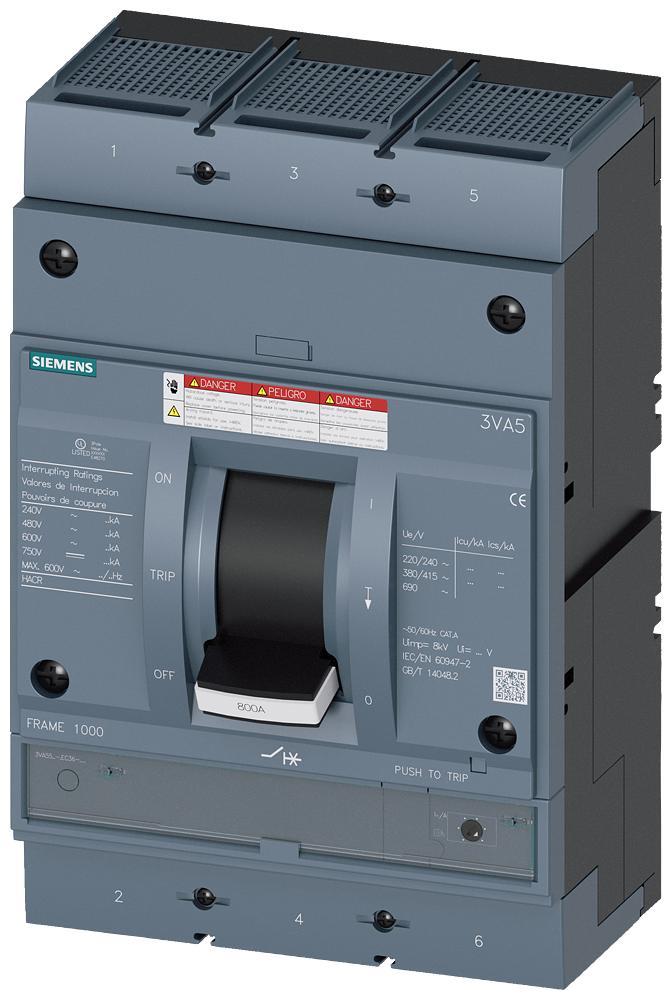

Siemens 3VA5560-6EC36-2AA0
Image Disclaimers Message
Brand: Siemens
Siemens 3VA5560-6EC36-2AA0
Brand: Siemens
Siemens 3VA5560-6EC36-2AA0
Part #:3VA5560-6EC36-2AA0
SKU #: 2441706
$5423.14/EA
Key Features
Part #:3VA5560-6EC36-2AA0
SKU #: 2441706
Brand: Siemens
Amperage Rating: 600 A
Dimensions: 12.5 in H x 8.3 in W x 5.8 in D
Frame: 3VA55
Interrupt Rating: 22kAIC at 600V, 65kAIC at 480V
Number of Poles: 3
$5423.14/EA
- 3VA55 Frame with Medium (Class H) Breaking Capacity
- Special Features Connection with Aluminum Lug
- 100 Percent Rated
Specifications
Brand: Siemens
Amperage Rating: 600 A
Dimensions: 12.5 in H x 8.3 in W x 5.8 in D
Frame: 3VA55
Interrupt Rating: 22kAIC at 600V, 65kAIC at 480V
Number of Poles: 3
Series: 3VA5
Trip Type: TM230 Thermal Magnetic
Type: Low Voltage Molded Case
Voltage Rating: 3/600/480 V
Connection type: Lug
Country of origin: CZ
Manufacturer Name: Siemens
UNSPSC: 0
UPC: 00195125359369
Siemens 3VA5560-6EC36-2AA0
Additional Description: SIEM-3VA5560-6EC36-2AA0 BRKR 3VA55 3P 600A 65KA FTAM 100 AL
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 600A 3-POLE (22KAIC AT 600V) (65KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES CONNECTION WITH ALUMINUM LUG. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 8.3 x 12.5 x 5.8.
Item Features
Item FeaturesUL Listed|RoHS directive Since: 12/17/2021|WEEE (2012/19/EU)|AL : N / ECCN : EAR99
