Part Number # 3VA6190-1MS36-0AA0
SKU # 2451116
Image Disclaimers Message
3VA6190-1MS36-0AA0
Siemens 3VA6190-1MS36-0AA0
Part Number # 3VA6190-1MS36-0AA0
SKU # 2451116
$1141.71 / Each
Typical price:$2220.00 / Each
Siemens 3VA6190-1MS36-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6190-1MS36-0AA0 |
| SKU #: | 2451116 |
| Amperage Rating: | 90 A |
| Dimensions: | 4.1 in W x 3.4 in D x 7.8 in H |
| Enclosure Type: | IP40 |
| Frame: | 3VA61 150 A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA at 480 V |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Range: | 270 to 1350 A |
| Trip Type: | Electronic |
| Type: | Low Voltage |
| Connection type: | Aluminum Lug/Line/Load Side |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766719479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1141.71 / Each
Typical price:$2220.00 / Each
Quantity:

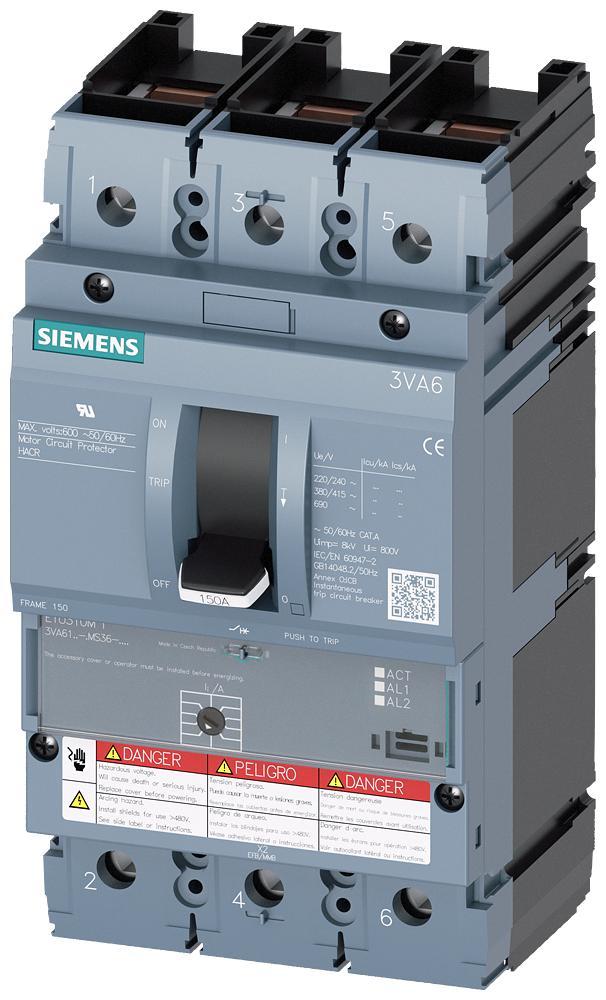

- Sentron Motor Circuit Protector, Low Voltage, 600 V AC, 90 A, 50/60 Hz Frequency, 100 kA at 480 V Interrupt, 3VA61 150 A Frame, Electronic Trip, 270 to 1350 A Trip, 3 Poles, Aluminum Lug/Line/Load Side Connection, IP40 Enclosure, -25 to 70 deg C, 4.1 in W x 3.4 in D x 7.8 in H Dimensions
3VA6190-1MS36-0AA0 Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications3VA6190-1MS36-0AA0 Item Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
3VA6190-1MS36-0AA0 Standards
cULus Listed|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RoHS Compliant|UL Listed|WEEE 2012/19/EUSKU #2451116Part Number #3VA6190-1MS36-0AA0UNSPSC39121601UPC00804766719479
