Part Number # 3VA5125-5ED16-0AA0
SKU # 2451893
Image Disclaimers Message
3VA5125-5ED16-0AA0

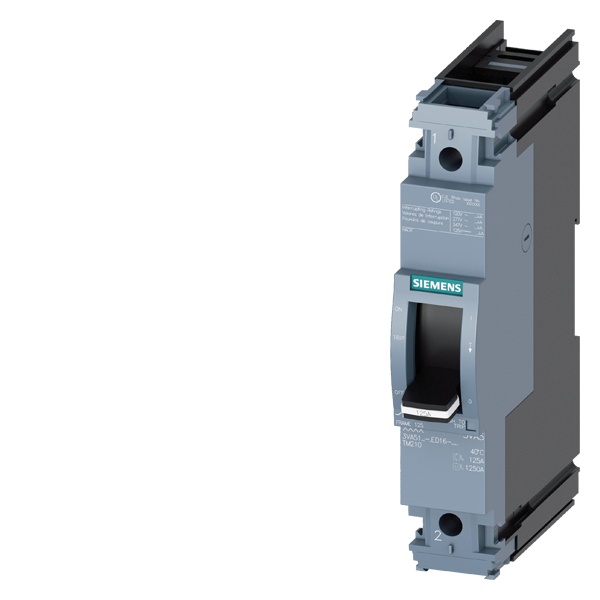

Siemens 3VA5125-5ED16-0AA0
Part Number # 3VA5125-5ED16-0AA0
SKU # 2451893
$299.83 / Each
Typical price:$583.00 / Each
Siemens 3VA5125-5ED16-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA5125-5ED16-0AA0 |
| SKU #: | 2451893 |
| Amperage Rating: | 25 A |
| Dimensions: | 1 in W x 3 in D x 5-1/2 in H |
| Enclosure Type: | IP40 |
| Frame: | 3VA51 125 A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18 kA at 347 V, 35 kA at 277 V, 85 kA at 120 V |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Range: | 300 A |
| Trip Type: | Thermal Magnetic |
| Type: | Low Voltage |
| Connection type: | Aluminum Lug/Line/Load Side |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766888656 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$299.83 / Each
Typical price:$583.00 / Each
Quantity:
- Sentron Molded Case Circuit Breaker, Low Voltage, 347 V AC/125 V DC, 25 A, 50/60 Hz Frequency, 18 kA at 347 V, 35 kA at 277 V, 85 kA at 120 V Interrupt, 3VA51 125 A Frame, Thermal Magnetic Trip, 300 A Trip, 1 Pole, Aluminum Lug/Line/Load Side Connection, IP40 Enclosure, -25 to 70 deg C, 1 in W x 3 in D x 5-1/2 in H Dimensions
3VA5125-5ED16-0AA0 Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment, Facilities, Production Lines, Production and Process Automation Industrial Applications3VA5125-5ED16-0AA0 Item Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
3VA5125-5ED16-0AA0 Standards
cULus Listed|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RoHS Compliant|UL Listed|WEEE 2012/19/EUSKU #2451893Part Number #3VA5125-5ED16-0AA0UNSPSC39121601UPC00804766888656
