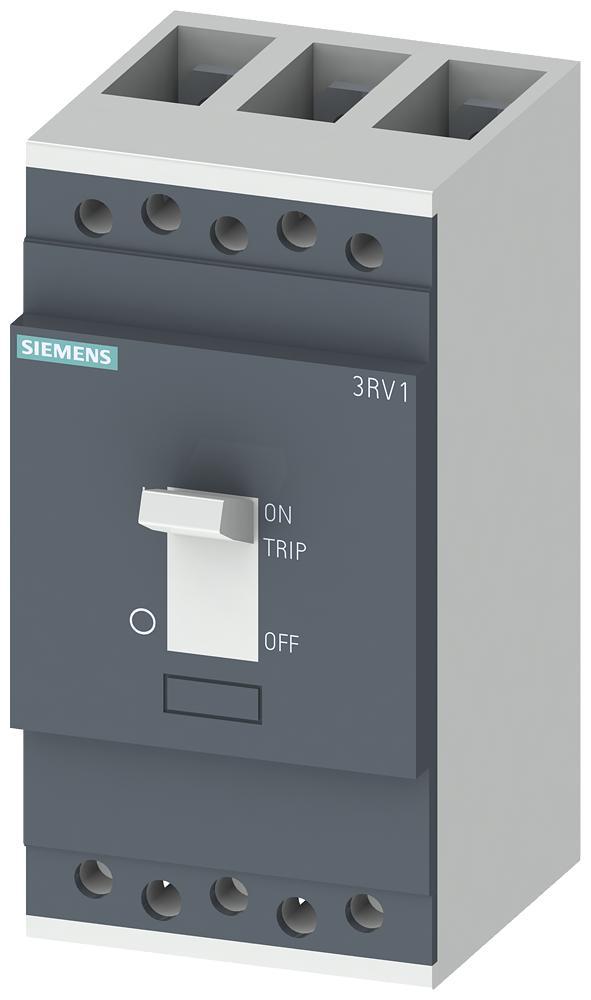

Siemens 3RV10637DL10 SIRIUS Motor Protection Circuit Breaker
Image Disclaimers Message
Siemens 3RV10637DL10 SIRIUS Motor Protection Circuit Breaker
Siemens 3RV10637DL10 SIRIUS Motor Protection Circuit Breaker
Part #:3RV10637DL10
SKU #: 2385329
Key Features
Part #:3RV10637DL10
SKU #: 2385329
Brand: Siemens
Amperage Rating: 200, 200 A
Dimensions: 205 mm H x 105 mm W x 103.5 mm D
Enclosure Type: IP20
Frequency Rating: 50 to 60, 50 to 60 Hz
Interrupt Rating: 70, 70 kA
- Class 10 trip
Siemens 3RV10637DL10 SIRIUS Motor Protection Circuit Breaker
SIRIUS Motor Protection Circuit Breaker, Molded Case, Series: 3RV1, 690 VAC, 200 A, 110 kW Power, 50 to 60 Hz Frequency, 70 kA Interrupt, Electronic Trip, 3 Pole, Screw Connection, IP20 Enclosure, Threaded Mounting, -25 to 60 deg C, 205 mm H x 105 mm W x 103.5 mm D Dimensions
Additional Description: SIEM-3RV10637DL10 MCMSP 200A ELEC TRIP ADJ SC&OVL REL
Catalog Description: Molded case circ.breaker 3RV1 for motor protection standard switching capacity rated current in=200a electronic release short-circuit protection adjustable 6-13xln overload protection uel 0.4-1xln, class 10a-30 icu =120ka at 400v 3-pole, screw terminal incl. phase barriers
