Brand: Siemens

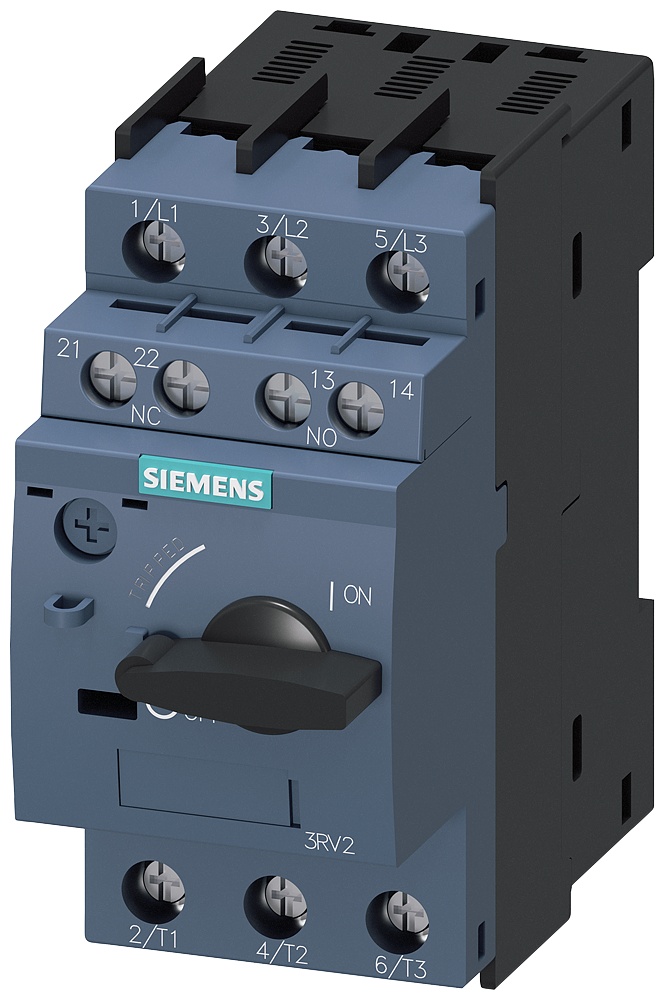

Siemens 3RV20110HA15 Motor Protection Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens 3RV20110HA15 Motor Protection Circuit Breaker
Brand: Siemens
Siemens 3RV20110HA15 Motor Protection Circuit Breaker
Part #:3RV20110HA15
SKU #: 2231923
$140.03/EA
Key Features
Part #:3RV20110HA15
SKU #: 2231923
Brand: Siemens
Amperage Rating: 0.8, 0.8 A
Auxiliary Contact Rating: 1NO-1NC
Dimensions: 97 mm H x 45 mm W x 96 mm D
Enclosure Type: IP20
Frame: 3RV2/S00
$140.03/EA
- Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
- Standard switch capacity
- (2) 18 to 14 AWG, (2) 12 AWG
- - 50 to 80 deg C environmental conditions
- Class 10 trip
- 100000 cycles switching
- With transverse auxiliary switch
Specifications
Brand: Siemens
Amperage Rating: 0.8, 0.8 A
Auxiliary Contact Rating: 1NO-1NC
Dimensions: 97 mm H x 45 mm W x 96 mm D
Enclosure Type: IP20
Frame: 3RV2/S00
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 100, 100 kA
Number of Poles: 3
Phase: 3
Power Rating: 0.37, 0.37 kW
Temperature Rating (Degrees F): -20 to 60, -20 to 60 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 690, 690 VAC
Wire Size: 18 to 14 AWG, 12 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00662643921649
Item FeaturesFor manual motor controller and system protection
Item Features
Item FeaturesCE Certified|CCC Certified|CSA Certified|UL Listed
