Part Number # 3RV20211AA25
SKU # 2387417
Image Disclaimers Message
3RV20211AA25

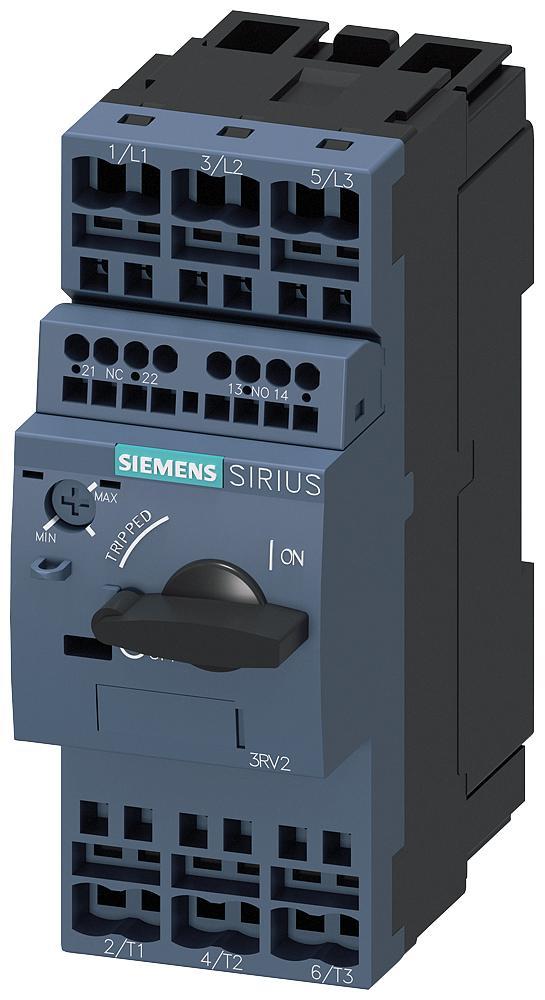

Siemens 3RV20211AA25 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch
Part Number # 3RV20211AA25
SKU # 2387417
$191.54 / Each
Typical price:$419.00 / Each
Siemens 3RV20211AA25 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20211AA25 |
| SKU #: | 2387417 |
| Amperage Rating: | 1.1 to 1.6 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 119 mm H x 45 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | S0 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 21 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 8 AWG |
| Connection type: | Spring-Loaded Latch-Lock Handle |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00887621883393 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$191.54 / Each
Typical price:$419.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 1.1 to 1.6 A, 1.1 kW Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S0 Frame, Magnetic Trip, 21 A Trip, 3 Pole, 3 ph, Spring-Loaded Latch-Lock Handle Connection, 1NO-1NC Auxiliary, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 119 mm H x 45 mm W x 96 mm D Dimensions
3RV20211AA25 Application
Motor and System Protection Applications3RV20211AA25 Item Features
- Class 10 trip
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RV20211AA25 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2387417Part Number #3RV20211AA25UNSPSC39121601UPC00887621883393
