Part Number # 3RV20214EA25
SKU # 2372878
3RV20214EA25

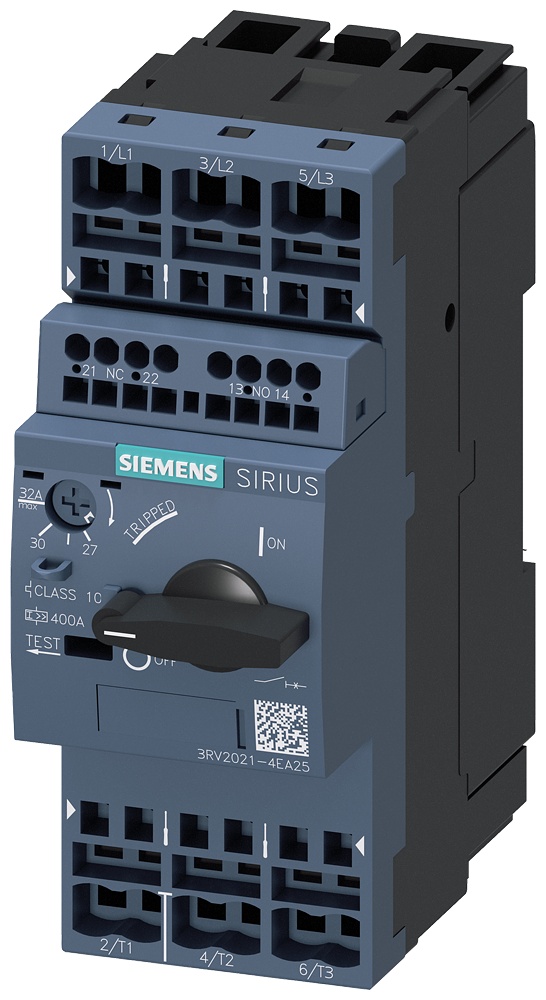

Siemens 3RV20214EA25 Motor Protection Circuit Breaker
Part Number # 3RV20214EA25
SKU # 2372878
Siemens 3RV20214EA25 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20214EA25 |
| SKU #: | 2372878 |
| Amperage Rating: | 27 to 32 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 119 mm H x 45 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | S0 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 2 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 400 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 8 AWG |
| Connection type: | Spring-Loaded Latch-Lock Handle |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643924510 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RV20214EA25 Motor Protection Circuit Breaker
Brand: Siemens
Part Number: 3RV20214EA25
Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 27 to 32 A, 30 kW Power, 50 to 60 Hz Frequency, 2 kA Interrupt, S0 Frame, Magnetic Trip, 400 A Trip, 3 Pole, 3 ph, Spring-Loaded Latch-Lock Handle Connection, 1NO-1NC Auxiliary, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 119 mm H x 45 mm W x 96 mm D Dimensions
Additional Description: SIEM-3RV20214EA25 MSP S0 27-32A AUX 1NO 1NC SPRING
Catalog Description: Circuit-breaker sz s0, for motor protection, class 10, a-release 27...32a, n-release 400a, spring-l. connection, standard sw. capacity, w. transverse aux. switch 1NO+1NC
3RV20214EA25 Application
Motor and System Protection Applications3RV20214EA25 Item Features
- Class 10 trip
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RV20214EA25 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2372878Part Number #3RV20214EA25UNSPSC39121601UPC00662643924510
Image provided may only be a representation of final product and may include optional equipment
