Part Number # 3RV20234BA10
SKU # 2399268
3RV20234BA10

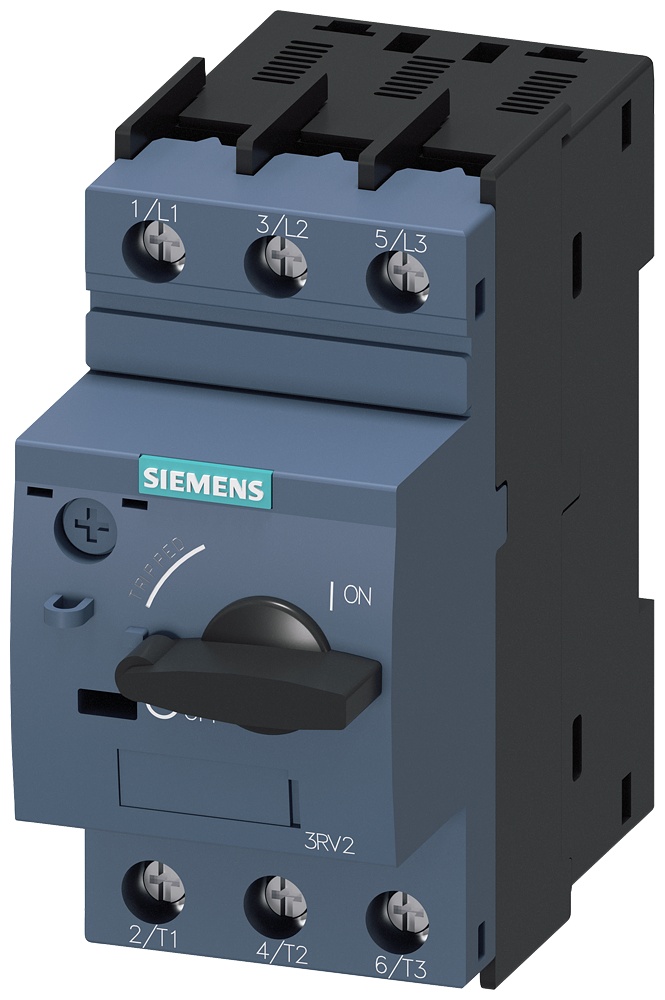

Siemens 3RV20234BA10 Motor Protection Circuit Breaker
Part Number # 3RV20234BA10
SKU # 2399268
$201.60 / Each
Typical price:$441.00 / Each
Siemens 3RV20234BA10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20234BA10 |
| SKU #: | 2399268 |
| Amperage Rating: | 20 A |
| Dimensions: | 97 mm H x 45 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | S0 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 2 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 14 to 20/260 A |
| Trip Type: | Magnetic |
| Wire Size: | 16 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892960853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$201.60 / Each
Typical price:$441.00 / Each
Quantity:
- Siemens, 3RV20234BA10, Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 20 A, 15 kW Power, 50 to 60 Hz Frequency, 2 kA Interrupt, S0 Frame, Magnetic Trip, 14 to 20/260 A Trip, 3 Pole, 3 ph, Screw Connection, 16 to 12 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions
3RV20234BA10 Application
Motor and System Protection Applications3RV20234BA10 Item Features
- 5500 W at 230 VAC, 7500 W at 400 VAC, 11000 W at 500 VAC, 15000 W at 690 VAC
- 14 to 20 A thermal overload release, 260 A instantaneous overcurrent release
- Minimization of energy losses through optimization of the bimetal trip units
- Class 10 trip
- Without auxiliary switch
- Smaller control cabinet air conditioners can be used
- Less heating of the control cabinet
- Reduction of inherent power loss
- 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks)
- https://www.youtube.com/watch?v=y9L0ZMtPwRU
3RV20234BA10 Standards
UL Listed|EAC Approved|VDE Approved|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|EN 60715SKU #2399268Part Number #3RV20234BA10UNSPSC39121601UPC00040892960853
Image provided may only be a representation of final product and may include optional equipment
