Part #:3RV20314DA15
SKU #: 2360044
Key Features
Part #:3RV20314DA15
SKU #: 2360044
Brand: Siemens
Amperage Rating: 20 to 25, 20 to 25 A
Auxiliary Contact Rating: 1NO-1NC
Dimensions: 140 mm H x 55 mm W x 149 mm D
Enclosure Type: IP20
Frame: S2
- Class 10 trip
- https://www.youtube.com/watch?v=5Oq25B99HBo

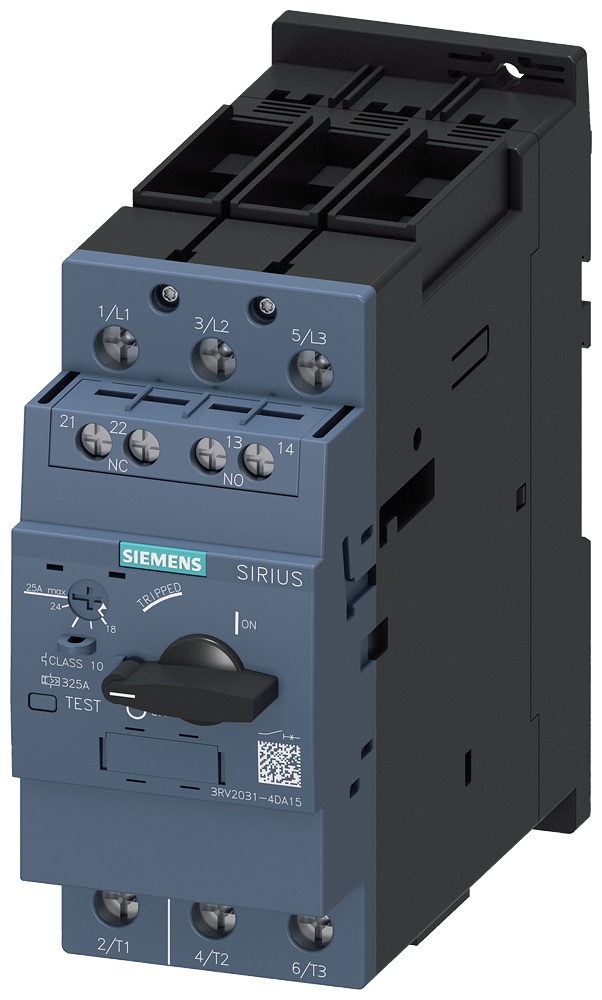

Siemens 3RV20314DA15 Motor Protection Circuit Breaker
Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 20 to 25 A, 22 kW Power, 50 to 60 Hz Frequency, 5 kA Interrupt, S2 Frame, Magnetic Trip, 325 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 3 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions
Additional Description: SIEM-3RV20314DA15 MSP S2 CLASS 10 18-25A SCREW 1NO/1NC AUX
Catalog Description: Circuit breaker, size s2, for motor protection, class 10, a-release 20...25a, n-release 325a, screw terminal, standard breaking capacity w. transv. aux. switch1NO+1NC
